VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers

I'm Online Chat Now

VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers

VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers
VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers

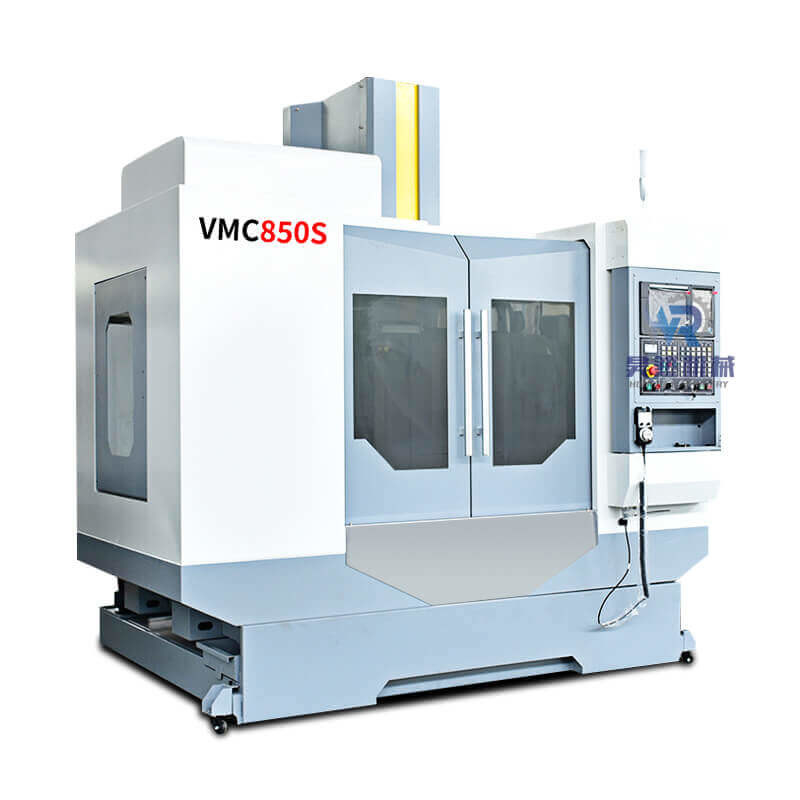

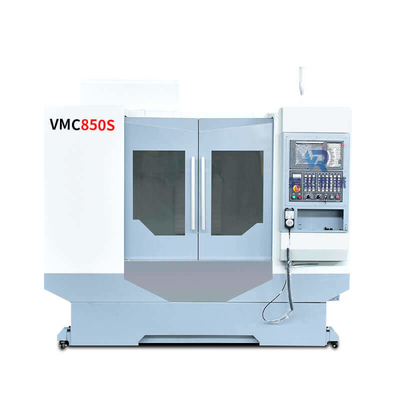

Large Image :  VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: vmc850s
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 19000-40000usd
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month

VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers

Description
Warranty: 1 Year Weight: 4800kg
Condition: New Type: Vertical
Voltage: 380V 50HZ Power(w): 7.5/11 KW
Spindle Taper: BT40 Spindle Speed: 8000 Rpm
Table Size: 1000*500
Highlight:

CNC Horizontal 4 Axis VMC Machine

,

VMC850s 4 Axis VMC Machine

,

VMC850s cnc horizontal machining center manufacturers

CNC Vertical Machine Center best bed structure design can bear the inertia generated by high G, firm as a rock and stable as Mount Tai.Vertical machining center whole machine has strong rigidity. The bed casting adopts high-quality casting. Vertical machining center tool has large weight and maintains the high rigidity and stability of the machine tool.
Vertical machining center The span of y-axis guide rail is maximized, the gravity overturning phenomenon caused by X-axis movement is eliminated, and the operation stability of the machine tool is ensured



VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers 0
Model
VMC650
VMC840
VMC850s
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Model
VMC966 I
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800
Model
VMC1270
VMC1370
VMC1580
Table size (mm)
1200*700
1400*700
1700*800
Max. allowable load (Kg)
800
800
1500
X-axis stroke (mm)
1200
1300
1500
Y-axis travel (mm)
700
700
800
Z-axis travel (mm)
700
750
700
T-slot
5-18-130
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
710
713
855
spindle end face to work table (mm)
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
6000
X/Y/Z rapid movement (m/min)
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
7000
8000
12000

Product Details
VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers 1



Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: vmc850s cnc milling machine machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; vmc850s cnc milling machine The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, vmc850s cnc milling machine bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; CNC Vertical Machine Center The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool. vmc850s cnc milling machine
sample
VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers 2

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packaging&Shipping
VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers 3

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
VMC850s 4 Axis VMC Machine Vertical CNC Horizontal Machining Center Manufacturers 4

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
