Vmc1580 4 Axis Vertical CNC Machine Center With Automatic Lubrication System

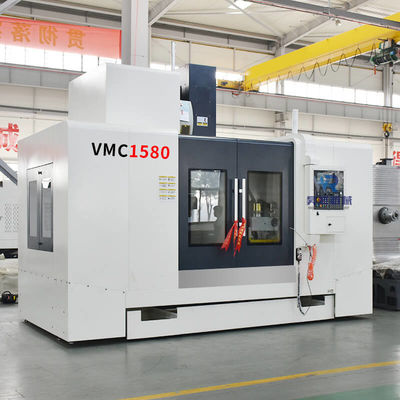

Large Image : Vmc1580 4 Axis Vertical CNC Machine Center With Automatic Lubrication System

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE ISO
Model Number:	vmc 1580

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26700$-32000$ per one set
Packaging Details:	wooden package
Delivery Time:	After 15-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability:	200 per a month

Contact Now

Vmc1580 4 Axis Vertical CNC Machine Center With Automatic Lubrication System

Description

Name:	Vmc1580 4 Axis CNC Milling Machine Vertical Machining Center	Number Of Axes:	4
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight:	Vmc1580 vertical cnc machine , Vmc vertical cnc machine , Vmc 4 axis cnc vertical machining center

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I	VMC1050
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550	1200x420
Max. allowable load (Kg)	400	300	500	500	600	500
X-axis stroke (mm)	650	800	800	800	900	1000
Y-axis travel (mm)	400	400	500	550	600	500
Z-axis travel (mm)	550	550	500	550	600	550
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663	)575
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700	100-650
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48	18/18/18
Machine Weight (Kg)	3800	3200	5300	5500	5600	5500

Model	VMC1160	VMC1165	VMC1265	VMC1270	VMC1370	VMC1580	Vmc1690
Table size (mm)	1200x600	1200x600	1200x600	1300×650	1400x700	1700X800	1600*800
Max. allowable load (Kg)	800	800	800	1000	1000	1500	1500
X-axis stroke (mm)	1100	1100	1200	1200	1300	1500	1600
Y-axis travel (mm)	600	650	650	700	700	800	900
Z-axis travel (mm)	600	650	650	750	750	700	700
T-slot	5-18x100	5-18-100	5-18-100	5-18-120	5-18-130	5-22-135	7-22-110
spindle center to Z-axis guide surface (mm)	650	710	710	785	713	855	936
spindle end face to work table (mm)	120-720	120-720	120-770	120-850	120-870	160-860	150-850
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155	BT50-190
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000	10000
X/Y/Z rapid movement (m/min)	36/36/24	36/36/36	36/36/36	24/24/24	24/24/24	24/24/18	15/15/12
Machine Weight (Kg)	6500	6800	7000	7500	8000	12000	12000

VMC Machine Center Features:

High quality resin sand

Taiwan spindle

Taiwan ball screw and locking nut

Taiwan pressure cylinder

Taiwan linear railway

Japanese NSK bearing germany R+W coupling

Automatic lubrication system

Chip conveyor at optional

Machine Center Application:

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Product Advantages

The advantages of Machining center

Machining center machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metal graphic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.

Machine detection

Application Example

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling

,tapping,boring ,etc.

Packaging＆Shipping

1. Outside package: Standard marine export plywood case.2. Inner package: Stretchy film and plastic film for humidity. We can

package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
