VMC840 4 Axis Cnc Vertical Large Machining Center Machine ODM

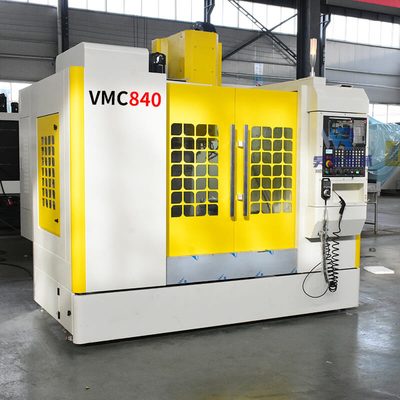

Large Image : VMC840 4 Axis Cnc Vertical Large Machining Center Machine ODM

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE ISO
Model Number:	vmc 840

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26700$-32000$ per one set
Packaging Details:	wooden package
Delivery Time:	After 15-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability:	60 per a month

Contact Now

VMC840 4 Axis Cnc Vertical Large Machining Center Machine ODM

Description

Name:	VMC840 4 Axis Cnc Vertical Machining Vertical Machine	Number Of Axes:	4
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight:	VMC840 large machining center , 4 Axis large machining center , VMC840 cnc machining center vertical

VMC840 4 Axis Cnc Vertical Large Machining Center Machine ODM

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	7000	8000	12000

Product DescriptionVMCs can be equipped with multiple adjustments. For example, there are many angles of approach available as well as rotary and other positioning devices up on the worktable. Later renditions of the VMC design added power and hydraulic feeding devices to make the system more automated and, eventually, computerized controls were added to allow for more automation in operation, repeatability, tool selection/changing and contour control. These new CNC’s took the “milling” machine to a new level of productivity and, thus, the term VMC (Vertical Machining Center) was born.

Application:

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.

Product Advantages

The advantages of CNC Vertical Milling Machine

1.Tool Changer — A tool changer greatly increases a VMC's productivity by allowing for the automatic, computer-controlled selection of tools for a variety of tasks from rough cutting to fine hole boring.

2.Coolant System — To keep parts and cutters cool and lubricated, most VMCs employ some sort of recirculating coolant system; which is usually a mix of soluble oil and water but can be a variety of other liquids as well. 3.Chip/Screw Conveyor— To evacuate the chips from the work zone, a variety of chip conveyors and chip augers may be employed to increase productivity and reduce downtime from manually shoveling out waste chips.

4.High-speed/high precision spindle

High rigidity,high precision,big hole diameter spindle design,adopyt the precise slide angle ball bearing support

High rotary spindle provides high-speed cutting for customers,ensure the long-term stabilization of machine tool's precision

The spindle adopts synchronous belt drive of big torsion,no friction and less noise

Application Example

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling

,tapping,boring ,etc.

Machine detection
