VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm

I'm Online Chat Now

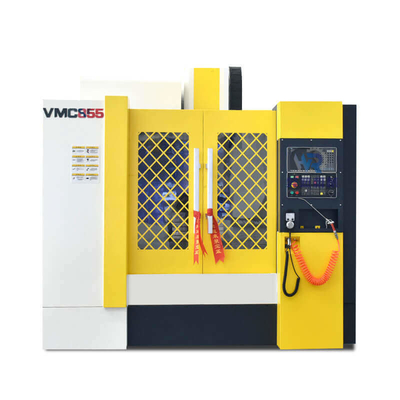

VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm

VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm

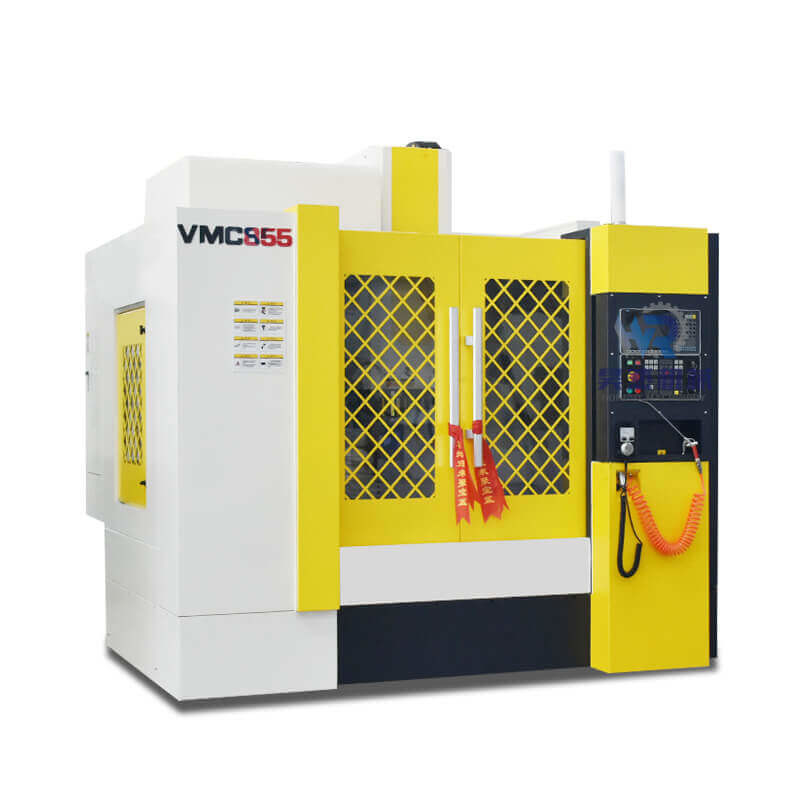

Large Image :  VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: vmc855
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 19000-40000usd
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month

VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm

Description
Model: VMC855 Warranty: 1 Year
Condition: New Type: Vertical
Power(w): 7.5/11 KW Spindle Taper: BT40
Spindle Speed: 8000 Rpm Table Size: 1000*550
Highlight:

VMC855 CNC Milling Center

,

8000rpm CNC Milling Center

,

VMC855 4 axis vmc machine

VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm



Model
VMC650
VMC840
VMC850
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Model
VMC966 I
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800
Model
VMC1270
VMC1370 I
VMC1580
Table size (mm)
1200*700
1400*700
1700*800
Max. allowable load (Kg)
800
800
1500
X-axis stroke (mm)
1200
1300
1500
Y-axis travel (mm)
700
700
800
Z-axis travel (mm)
700
750
700
T-slot
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
710
713
855
spindle end face to work table (mm)
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
6000
X/Y/Z rapid movement (m/min)
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
7000
8000
12000

VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm 0


Vmc855 CNC milling machine is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). Vmc855 CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. cnc machine center The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping.Vmc855 CNC milling machineIt is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts. Vmc855 CNC milling machine

Product Details
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm 1



Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; cnc milling machine The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, cnc milling machine bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool. cnc milling machine
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm 2



Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm 3



Taiwan HIWIN high precison guideway
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm 4



Automatic tool change system
sample
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm 5

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packaging&Shipping
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm 6

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm 7

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm 8

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
