Large 5 Axis CNC Vertical Machining Center VMC850S

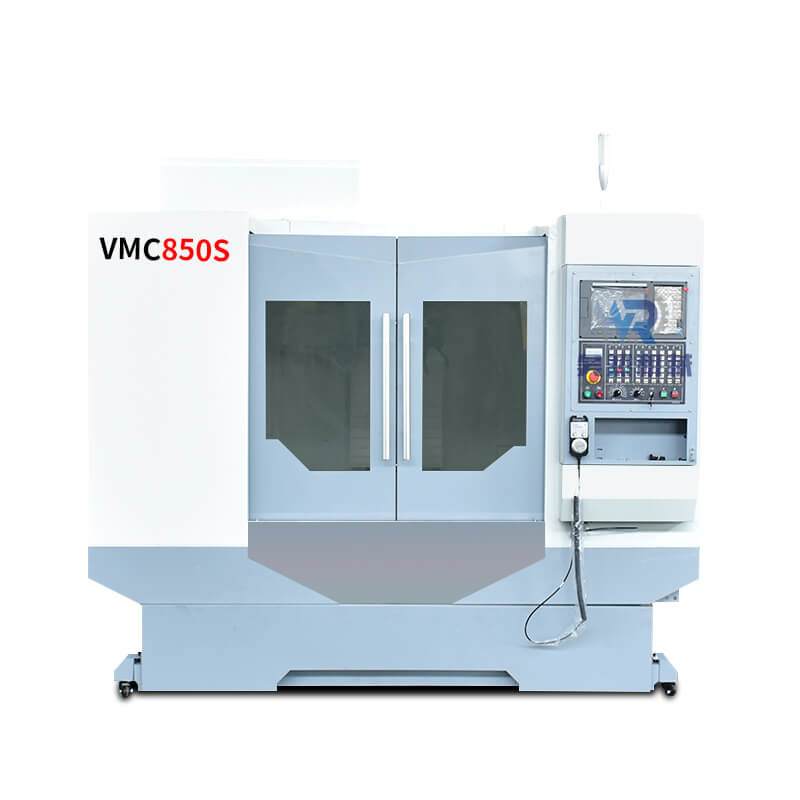

Large Image : Large 5 Axis CNC Vertical Machining Center VMC850S

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE ISO
Model Number:	vmc 850S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26700$-32000$ per one set
Packaging Details:	wooden package
Delivery Time:	After 15-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability:	200 per a month

Contact Now

Large 5 Axis CNC Vertical Machining Center VMC850S

Description

Name:	VMC850S CNC Vertical Machining Center Small 5axis CNC Milling Machine	Number Of Axes:	5
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight:	Large 5 axis cnc vertical machining center , VMC850S 5 axis cnc vertical machining center , VMC large machining center

Large 5 Axis CNC Vertical Machining Center VMC850S

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	7000	8000	12000

Product DescriptionCNC Vertical Mills generally have a single spindle, automatic tool changer, work table and CNC Control.

The spindle on a CNC Machining Center can have a wide range of speeds depending on what material is being cut and the depth of cut that is required. Typical spindle speed ranges from 0 to 10,000 RPM. Higher speeds are used for lighter materials including graphite and aluminum among others. Higher speeds can reach 12,000 RPM up to 50,000 RPM and higher.

The Spindle is loaded with tool holders and cutters to achieve the proper material removal. There are many different styles of tool holders including BT and CAT – which have a conical shape as well as HSK, which uses flanges instead of a taper to lock the holder in place. BT and CAT Holders can come in various sizes including 30, 40 and 50 taper depending on the size of tool the cutter requires. HSK (Hollow taper ShanK) comes in a variety of types – A through F – and sizes from HSK-32 up to HSK-160. HSK is

considered a better tool holder for high speed machining as there is more surface contact between the spindle and the holder, reducing vibration and keeping the tool from pulling back into the receiver when cutting at high speeds.

Product Advantages

Features of VMC1160 vertical machining center, CNC milling machine:

1.Machine frame with linear guides in an extra-wide configuration, Robust construction for efficient machining.

2.Linear guide system for rapid feeds up to 10 m/min.

3.High-precision preloaded ball screws on all 3 axes.The 4th axis is optional.

4.Funnel type 20-station tool changer for quick and precise tool changes (as Optional).

5.Chip conveyor and purge system for optimum chip removal.

6.Easy accessibility of work table for easy setup and tooling

7.Enclosed work space ensures safe and contamination-free work.

8.Operating system: Mitsubishi, Fanuc and Siemens

9. mainly applicable to processing board, plate, shell mold and small complex parts.

10.able to mill steel,copper,aluminum,wood and plastic etc.

11.can continuously complete drilling,milling,tapping,reaming,expanding and other processess at one clamping.

Machine detection

Application Example

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.

Packaging＆Shipping

1. Outside package: Standard marine export plywood case.2. Inner package: Stretchy film and plastic film for humidity. We can

package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
