VMC966 Milling Vertical CNC Machine 3 Axis CNC Vertical Machining Center

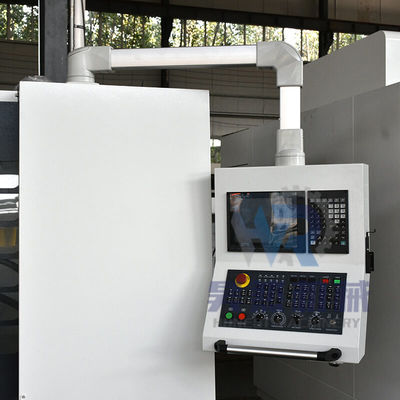

Large Image : VMC966 Milling Vertical CNC Machine 3 Axis CNC Vertical Machining Center

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE ISO
Model Number:	vmc 966

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26700$-32000$ per one set
Packaging Details:	wooden package
Delivery Time:	After 15-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability:	200 per a month

Contact Now

VMC966 Milling Vertical CNC Machine 3 Axis CNC Vertical Machining Center

Description

Name:	China Factory Direct Sales VMC966 Cnc Milling Machines 3axis Vertical Machining Center	Number Of Axes:	4
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight:	8000rpm vertical cnc machine , 3axis vertical cnc machine Center , 3 axis cnc vertical machining center

China factory direct sales VMC966 cnc milling machines 3axis vertical machining center

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	7000	8000	12000

Product Descriptionvertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle."

Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis). VMCs can be equipped with multiple adjustments. For example, there are many angles of approach available as well as rotary and other positioning devices up on the worktable. Later renditions of the VMC design added power and hydraulic feeding devices to make the system more automated and, eventually, computerized controls were added to allow for more automation in operation, repeatability, tool selection/changing and contour control. These new CNC’s took the “milling”machine to a new level of productivity and, thus, the term VMC (Vertical Machining Center) was born.

Application:

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.

Product Advantages

The advantages of Machining center

Machining center high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine

tool.

Machine detection

Application Example

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling

,tapping,boring ,etc.
