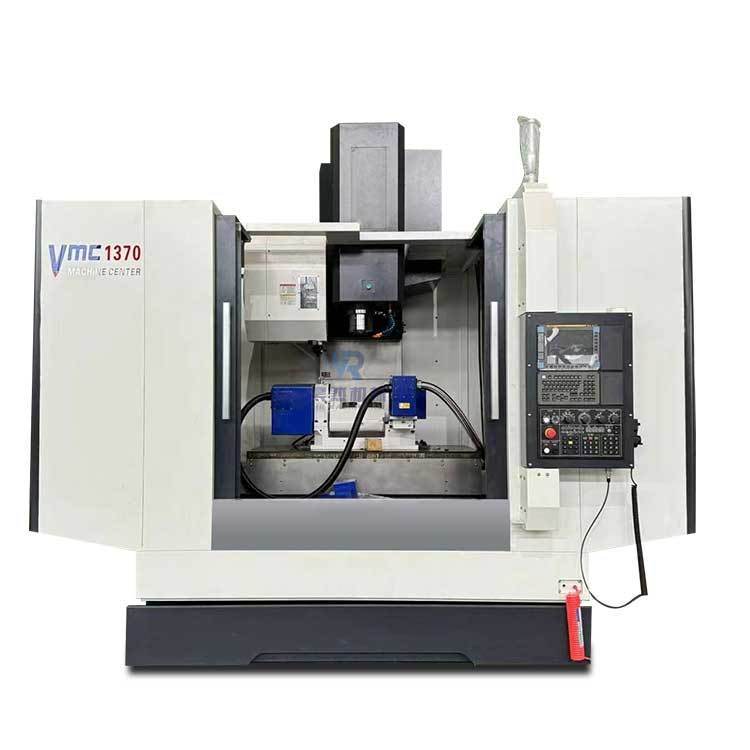

Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine

Name: Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine
Brand: Shandong HR Machinery Co., Ltd.
SKU: vmc1370
Price: 40,000.00 USD
Availability: InStock

All Products

CNC Vertical Machining Center
(78)

CNC Vertical Milling Machine
(14)

CNC VMC Machine
(29)

VMC CNC Milling Machine
(28)

CNC Milling Center
(37)

Universal Milling Machine
(27)

VMC Machining Center
(19)

Vertical Milling Center
(31)

Metal Milling Machine
(20)

4 Axis VMC Machine
(14)

5 Axis Machining Center
(15)

CNC Lathe Machine
(71)

I'm Online Chat Now

Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine

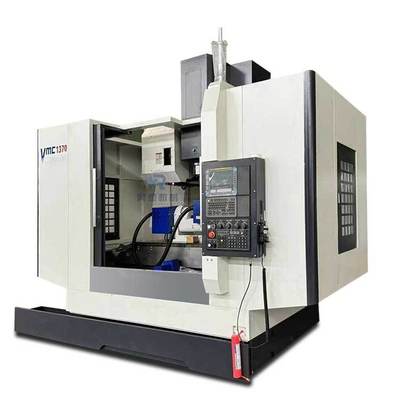

Large Image : Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ce
Model Number:	vmc1370

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	30000-50000usd
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine

Description

Table Size (mm):	1400*700	Max. Allowable Load (Kg):	800
X-axis Stroke (mm):	1300	Y-axis Travel (mm):	700
Z-axis Travel (mm):	750	Condition:	New
Type:	Vertical	Spindle Taper:	BT40
Highlight:	ODM 5 Axis Machining Center , Vmc1370 5 Axis Machining Center , Vmc1370 vertical machining center machine

Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine

Model	VMC650	VMC840	VMC850	VMC855
Table size (mm)	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	300	500	500
X-axis stroke (mm)	650	800	800	800
Y-axis travel (mm)	400	400	500	550
Z-axis travel (mm)	550	550	500	550
T-slot	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	485	445	552	590
spindle end face to work table (mm)	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500

Model	VMC966	VMC1050	VMC1160	VMC1165
Table size (mm)	1100*550	1200*420	1200*600	1200*600
Max. allowable load (Kg)	600	500	800	800
X-axis stroke (mm)	900	1000	1100	1100
Y-axis travel (mm)	600	500	600	650
Z-axis travel (mm)	600	550	600	650
T-slot	5-18-100	5-18-100	5-18*100	5-18-100
spindle center to Z-axis guide surface (mm)	663	575	650	710
spindle end face to work table (mm)	100-700	100-650	120-720	120-720
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	18/18/18	36/36/24	36/36/36
Machine Weight (Kg)	5600	5500	6500	6800

Model	VMC1270	VMC1370	VMC1580
Table size (mm)	1200*700	1400*700	1700*800
Max. allowable load (Kg)	1000	800	1500
X-axis stroke (mm)	1200	1300	1500
Y-axis travel (mm)	700	700	800
Z-axis travel (mm)	700	750	700
T-slot	5-18-115	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	767	713	855
spindle end face to work table (mm)	130-830	120-870	160-860
Spindle taper hole	BT50	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	6000
X/Y/Z rapid movement (m/min)	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	9000	8000	12000

HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.

Detailed description
Taiwan spindle BT40/BT50 Taiwan 24T arm type auto tool changer Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws. FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional. Taiwan 4th or 5th axes rotary table is optional. Tools and workpiece measuring instrument are optional.
Packing & Delivery
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
