Vmc1265 Vertical VMC Machining Center CNC 3 Axis Vertical Milling Machine

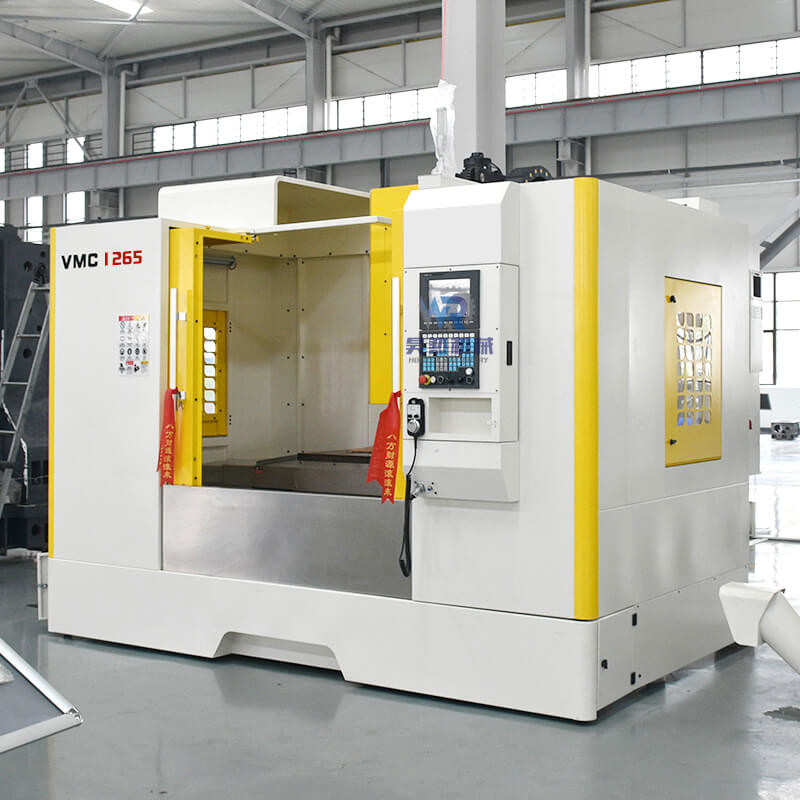

Large Image : Vmc1265 Vertical VMC Machining Center CNC 3 Axis Vertical Milling Machine

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE ISO
Model Number:	vmc 1265

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26700$-32000$ per one set
Packaging Details:	wooden package
Delivery Time:	After 15-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability:	200 per a month

Contact Now

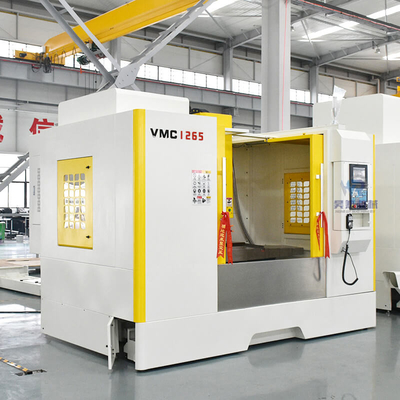

Vmc1265 Vertical VMC Machining Center CNC 3 Axis Vertical Milling Machine

Description

Name:	Vmc1265 3axis Cnc Vertical Machine Center	Number Of Axes:	3
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight:	Vmc1265 VMC Machining Center , 3axis VMC Machining Center , Vmc1265 3 axis vertical milling machine

Vmc1265 Vertical VMC Machining Center CNC 3 Axis Vertical Milling Machine

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	7000	8000	12000

Features:

The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.

The bed seat, vertical column, tool slide and other components are all adopt symmetric thermal and box type dense reinforcement grid stiffened ribbon design, shaped with resin sand, featuring high precision and stability as well as good rigidity.

Spindles with the float tool stroke avoid the tool stroke force to pass on the spindle bearings, and effectively improve the life of the spindle.

Spindle equipped with imported major unit assembly , stepless speed change, high rotating accuracy and good dynamic balance precision. And also mounted positioning ring restore unit and AC main motor to perform rigidity tapping in high speed.

Product Advantages

High-speed/high precision spindle
High rigidity,high precision,big hole diameter spindle design,adopyt the precise slide angle ball bearing support
High rotary spindle provides high-speed cutting for customers,ensure the long-term stabilization of machine tool's precision
The spindle adopts synchronous belt drive of big torsion,no friction and less noise

Optional accessories

The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
