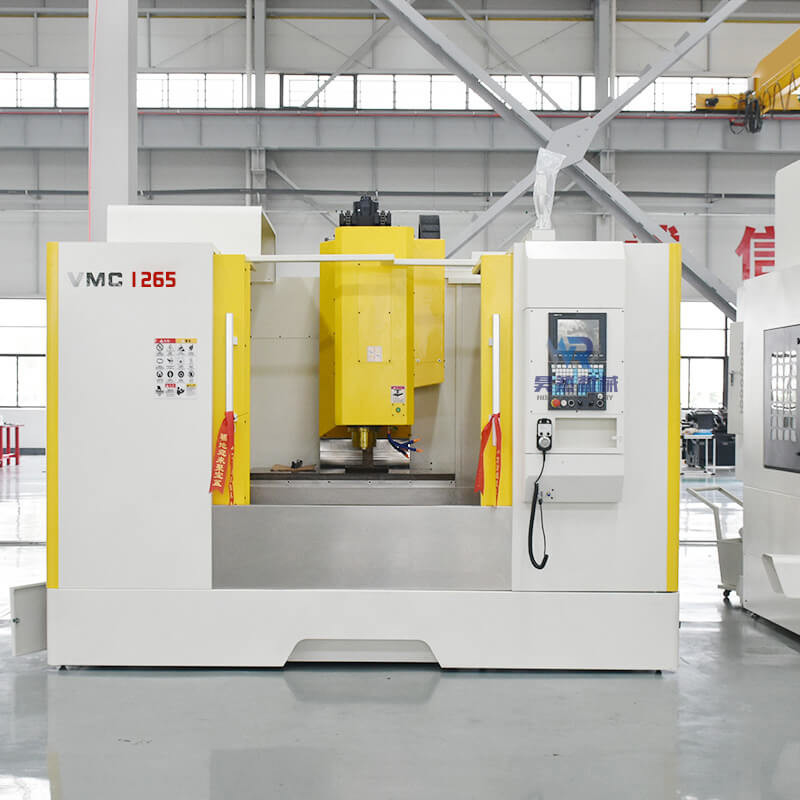

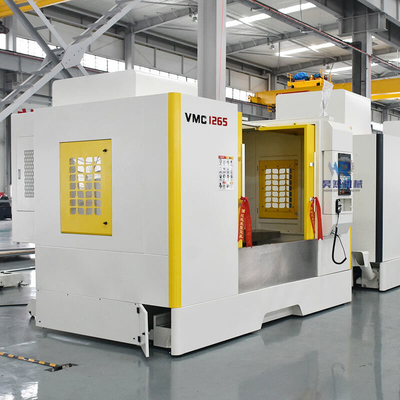

Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine

Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine
Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine

Large Image :  Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 1265
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 200 per a month
Contact Now

Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine

Description
Name: Vertical Machine Center Vmc1265 5 Axis Processing Steel Number Of Axes: 5
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

Vmc1265 Vertical Milling Center

,

Metalworking Vertical Milling Center

,

Vmc 5 axis horizontal milling machine

 Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine

Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
7000
8000
12000
Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine 0
Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine 1
Features:
1. The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.
2. The bed seat, vertical column, tool slide and other components are all adopt symmetric thermal and box type dense reinforcement grid stiffened ribbon design, shaped with resin sand, featuring high precision and stability as well as good rigidity.
3. X, Y, Z three-axis have large travel, especially suitable for the special needs of the mold making industry to increase stroke.
4. Spindle equipped with imported major unit assembly , stepless speed change, high rotating accuracy and good dynamic balance precision. And also mounted positioning ring restore unit and AC main motor to perform rigidity tapping in high speed.
5. Spindles with the float tool stroke avoid the tool stroke force to pass on the spindle bearings, and effectively improve the life of the spindle.
6. Spindle with a big motor boasts high spindle speed, great power, suitable for high metal removal rate and efficient processing needs.
7. X, Y, Z three-axis all adopt NSK special screw bearings with high precision. Plus pre-tensioning technique, it guarantees high rigidity and precision of the feed shaft.
8. Equipped with a complete security protection device and designs that integrate the electric, mechanical, and pneumatic technology, the machine boasts advanced layout, environmentally friendly design, and easy operation and maintenance.
Product Advantages

The advantages of Machining center 1265

1. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.
2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping
3. Large travel: larger travels in all three directions than those of the same specifications in the market.
4. Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tools
magazine,ball screw, bearings, etc.
5. New structure: Spindle with floating tool stroke and ball screw pre-tensioned to ensure long service life and steady accuracy.
Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine 2
Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine 3
Optional accessories
Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine 4



The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine 5
Packaging＆Shipping
Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine 6
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
