BT40 3 Axis CNC Vertical Milling Machine Manufacturers 8000rpm

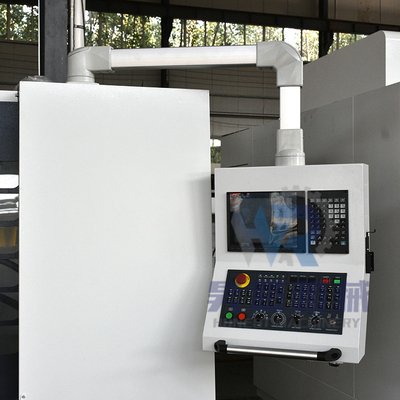

Large Image : BT40 3 Axis CNC Vertical Milling Machine Manufacturers 8000rpm

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc966

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	19000-40000usd
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

BT40 3 Axis CNC Vertical Milling Machine Manufacturers 8000rpm

Description

Model:	VMC966	Table Size (mm):	1100*550
Max. Allowable Load (Kg):	600	X-axis Stroke (mm):	900
Y-axis Travel (mm):	600	Z-axis Travel (mm):	600
T-slot:	5-18-100	Spindle Taper Hole:	BT40-150
Highlight:	3 Axis cnc vertical milling machine manufacturers , 8000rpm cnc vertical milling machine manufacturers , 8000rpm vmc machining center

BT40 3 Axis CNC Vertical Milling Machine Manufacturers 8000rpm

Model	VMC650	VMC840	VMC850	VMC855
Table size (mm)	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	300	500	500
X-axis stroke (mm)	650	800	800	800
Y-axis travel (mm)	400	400	500	550
Z-axis travel (mm)	550	550	500	550
T-slot	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	485	445	552	590
spindle end face to work table (mm)	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500

Model	VMC966	VMC1050	VMC1160	VMC1165
Table size (mm)	1100*550	1200*420	1200*600	1200*600
Max. allowable load (Kg)	600	500	800	800
X-axis stroke (mm)	900	1000	1100	1100
Y-axis travel (mm)	600	500	600	650
Z-axis travel (mm)	600	550	600	650
T-slot	5-18-100	5-18-100	5-18*100	5-18-100
spindle center to Z-axis guide surface (mm)	663	575	650	710
spindle end face to work table (mm)	100-700	100-650	120-720	120-720
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	18/18/18	36/36/24	36/36/36
Machine Weight (Kg)	5600	5500	6500	6800

Model	VMC1265	VMC1270	VMC1370 I	VMC1580
Table size (mm)	1200*600	1200*700	1400*700	1700*800
Max. allowable load (Kg)	800	1000	800	1500
X-axis stroke (mm)	1200	1200	1300	1500
Y-axis travel (mm)	650	700	700	800
Z-axis travel (mm)	650	700	750	700
T-slot	5-18-100	5-18-115	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	710	710	713	855
spindle end face to work table (mm)	120-770	130-830	120-870	160-860
Spindle taper hole	BT40-150	BT50	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	7000	9000	8000	12000

BT40 3 Axis CNC Vertical Milling Machine Manufacturers 8000rpm 0

CNC milling machine is a closed vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide).  CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping.CNC milling machineIt is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC milling machine


Product Details

.Taiwan HIWIN high precison guideway
.Taiwan-made spindle Unit,8000-12000rpm available
Reliable Control System: vertical machining center is suitable for producing metal product and parts in all shapes.
Equipped with precision ball screw and servo motor drive, the connection between the screw and the motor adopts special coupling technology, with small moment of inertia, no transmission gap, high transmission stiffness and high speed, and the cutting feed speed can reach 20m / min.

sample

Packaging＆Shipping

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
