Vertical CNC VMC Mill Machine Center 5 Axis VMC1580

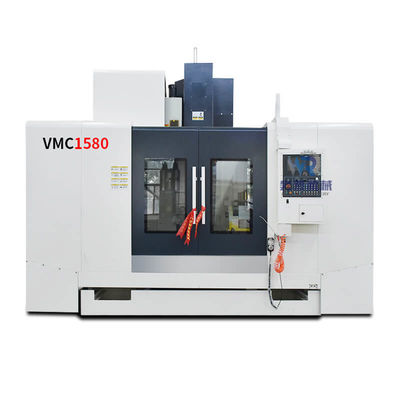

Large Image : Vertical CNC VMC Mill Machine Center 5 Axis VMC1580

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE ISO
Model Number:	vmc 1580

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26700$-32000$ per one set
Packaging Details:	wooden package
Delivery Time:	After 15-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability:	200 per a month

Contact Now

Vertical CNC VMC Mill Machine Center 5 Axis VMC1580

Description

Name:	Vertical Machine Center Vertical Machine Center 5 Axis VMC1580	Number Of Axes:	5
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight:	vmc mill Machine , CNC vmc mill , 5 Axis vmc cnc machines

Product Advantages

The advantages of Machining center

CNC Vertical Machining Centers can include an additional axis to do specific cutting applications. Rotary Tables are common as a 4th Axis on mills. They can vary in size and weight capacities and can have a horizontal or vertical configuration. They are generally an add-on to a standard 3-axis mill. The mill will have to have a proper 4th axis interface (generally a 4th axis card, drive and CNC Control) to accept a 4th axis rotary table. Trunnion Tables can also be an add-on to a vertical CNC Mill. A Trunnion table adds a 4th and 5th axis to a standard mill by incorporating an A-Axis (which rotates around the X-Axis) as well as a C-Axis (which rotates around the Z Axis).

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I	VMC1050
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550	1200x420
Max. allowable load (Kg)	400	300	500	500	600	500
X-axis stroke (mm)	650	800	800	800	900	1000
Y-axis travel (mm)	400	400	500	550	600	500
Z-axis travel (mm)	550	550	500	550	600	550
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663	)575
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700	100-650
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48	18/18/18
Machine Weight (Kg)	3800	3200	5300	5500	5600	5500

Model	VMC1160	VMC1165	VMC1265	VMC1270	VMC1370	VMC1580	Vmc1690
Table size (mm)	1200x600	1200x600	1200x600	1300×650	1400x700	1700X800	1600*800
Max. allowable load (Kg)	800	800	800	1000	1000	1500	1500
X-axis stroke (mm)	1100	1100	1200	1200	1300	1500	1600
Y-axis travel (mm)	600	650	650	700	700	800	900
Z-axis travel (mm)	600	650	650	750	750	700	700
T-slot	5-18x100	5-18-100	5-18-100	5-18-120	5-18-130	5-22-135	7-22-110
spindle center to Z-axis guide surface (mm)	650	710	710	785	713	855	936
spindle end face to work table (mm)	120-720	120-720	120-770	120-850	120-870	160-860	150-850
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155	BT50-190
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000	10000
X/Y/Z rapid movement (m/min)	36/36/24	36/36/36	36/36/36	24/24/24	24/24/24	24/24/18	15/15/12
Machine Weight (Kg)	6500	6800	7000	7500	8000	12000	12000

Product DescriptionVertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).

Machine detection

Application Example

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling

,tapping,boring ,etc.

Packaging＆Shipping

1. Outside package: Standard marine export plywood case.2. Inner package: Stretchy film and plastic film for humidity. We can

package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
