Vmc 1160 Compact 4 Axis Cnc Milling Machine / Cnc Vertical Machining Center

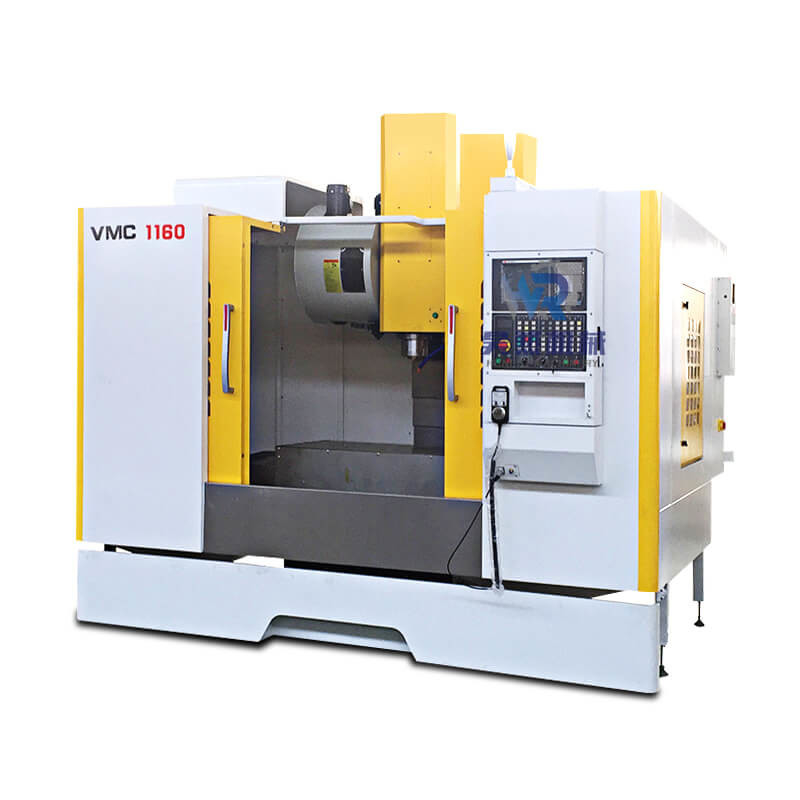

Large Image : Vmc 1160 Compact 4 Axis Cnc Milling Machine / Cnc Vertical Machining Center

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc1160

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd 19000-40000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Vmc 1160 Compact 4 Axis Cnc Milling Machine / Cnc Vertical Machining Center

Description

Model:	VMC1160	Table Size (mm):	1200*600
Max. Allowable Load (Kg):	800	X-axis Stroke (mm):	1100
Y-axis Travel (mm):	600	Z-axis Travel (mm):	600
T-slot:	5-18*100	Spindle Speed (r/min):	8000
Highlight:	compact 4 axis cnc milling machine , vertical 4 axis cnc milling machine , vmc 1160 cnc vertical machining center

Item	VMC840	VMC850	vmc855	VMC1160	VMC1270	VMC1370	VMC1580
Size of worktable(length×width)mm	1000*400	1000*500	1000*550	1200*600	1400*700	1460*700	1700*800
T slot (mm)	5-18*100	5-18*100	5-18*90	5-18*100mm	5-18*115	5-22*140	5-22*150
Max loading weight on worktable	500KG	600kg	600kg	1000kg	1000kg	1400	1500
X-Axis travel(mm)	800	800	800	1000	1200	1300	1500
Y-Axis travel(mm)	400	500	550	600	700	700	800
Z-Axis travel(mm)	500	500	500	600	700	700	700
Distance between spindle nose and table	105-550	105-605mm	120-620mm	100-700mm	130-830mm	160-860mm	170-840
Distance between spindle center and column(mm)	450	550	540	667	767	775	810
Spindle taper	BT40	BT40	BT40	BT40	BT50
Max. spindle speed( rpm)	8000/10000/12000
Spindle motor power(Kw)	5.5KW	7.5/11kw	7.5/11kw	11/15kw	11/15kw	15/18.5kw	18.5kw
Rapid feeding speed: X,Y,Z axis m/min	16/16/16 (24/24//24 liner guidway)
Fast cutting speed m /min	10m/min
Positional accuracy	±0.005 mm	±0.005 mm	±0.005 mm	±0.005 mm	±0.005 mm	±0.0075 mm	±0.01 mm
Repeat positional accuracy	±0.003 mm	±0.003 mm	±0.003 mm	±0.003 mm	±0.003 mm	±0.005 mm	±0.005mm
Auto Tool changer type	16 tools head type tool changer(optional 24 arm type auto tool changer)
Max. tool length	300mm
Max. Tool diameter	Φ80(adjacent tool)/φ150(not adjacent tool)
Max.tool weight	8kg
Tool changing time(tool-to-tool)	7sec
Air pressure	0.6 Mpa
Machine weight	4200KG	5500KG	5800	7500KG	9000KG	10000KG	13000KG
Overall sizse(mm)	260023002300	260023002300	280024002400	334028002700	380030002650	387031652920	430032003100

Vmc1160 CNC milling machine is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). The guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. Vmc1160 CNC milling machine It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. It is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.Vmc1160 CNC milling machine

Product Details

Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT50 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.

sample

it is widely used to produce the auto spare

parts, medical treatment instrument and any kind of injection

mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.

Packaging＆Shipping

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

customer visiting

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
