Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

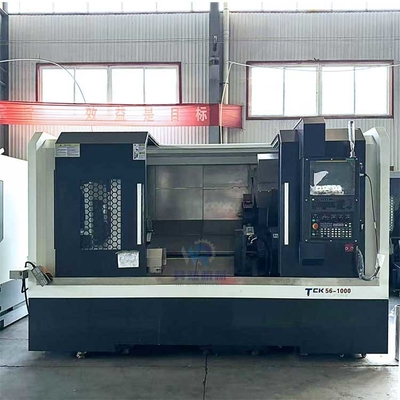

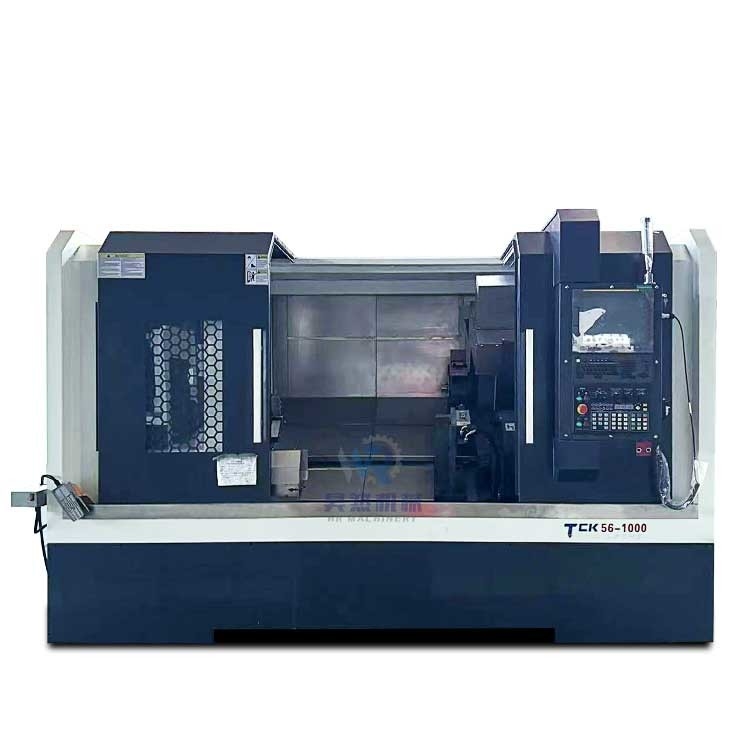

Large Image : Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

Product Details:

Place of Origin:	SHANDONG
Brand Name:	HR
Certification:	CE
Model Number:	TCK56-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	24800USD
Packaging Details:	Standard configuration packaging
Delivery Time:	30 work days
Payment Terms:	T/T, D/P
Supply Ability:	100 sets/month

Contact Now

Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

Description

Max Cutting Length:	750MM/1000mm	Working Roughness:	Ra1.6um
Type:	Horizontal	Key Word:	CNC Turning Lathe Machine Center
X-Axis Travel:	200mm	Export Markets:	Global
Usage:	Metal Parts Machining	Core Components:	Bearing, Pump, Gear, Other
Cnc Or Not:	CNC Lathe Machine	Tool Post Stations:	12
Swing Over Bed:	640mm	Voltage:	220V
Year:	2022	Z Axis Travel:	380mm
Highlight:	Horizontal slant bed cnc lathe machine , Precision slant bed cnc lathe machine , High Precision slant bed cnc lathe

Product Description

Introduction

TCK56 series multi-function CNC lathe, the bed adopts box structure and strong cast iron (HT-300), one-piece molding casting technology, and is completed by machining center clamping. Therefore, it has the characteristics of strong overall rigidity, good accuracy retention of machine tools, and high reliability in use.

Specification		Unit	TCK56
Work Capability	Max swing over bed Dia.	mm	Φ640
	Max swing over the cross slide Dia.	mm	Φ280
	Max cutting length	mm	540
	Max turning diameter	mm	Φ540
Spindle	Hydraulic chuck size	mm	10''
	Spindle nose	/	A2-6
	Spindle taper/diameter	mm	Φ 66
	Spindle speed	r/min	20-3500
	Main motor power	kW	11
Tail stock	Tail stock sleeve dia./travel	mm	480
Tail stock	Sleeve taper	MT No.	MT-5
Body	Bed angle	DEG	45 °
	Travel range for X/Z	mm	280/700
	Fast feeding speed X/Z	m/min	24/24
	Servo motor torque X/Z	Nm	15/15
	Servo motor power	kw	2./2.3
Turret	Nos.	/	12
	Tools size	mm	25×25/Φ32
	Y axis travel range	mm	+_50
	Dimension size	mm	3400X2060x2100
	Weight	kg	4200

Details Images

- 45 Degree Machine structure

1. Special structure more stronger
2. Heavy loading capacity
3. Easy metal chips falling down

HYDRAULIC CHUCK

Standard with hollowhydraulic chuck,Chinesebrand or Taiwan brand

- Hydraulic tailstock

1. Standard with hydraulic tailstock
2. Can choose Programmable tailstock driven by servo motor

Linear rails

X Z axis Adopts Taiwan Linear rails

High speed , High accuracy

- Automatic chip conveyor

Easy metal chips remover
Save time and energy
Can choose with extra cost
