VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking

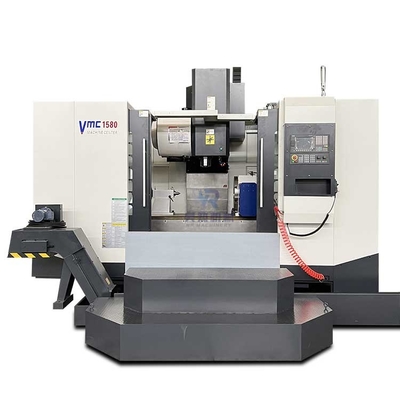

Large Image : VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking

Product Details:

Place of Origin:	SHANDONG
Brand Name:	HR
Certification:	CE
Model Number:	VMC1580

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	50000 USD /SET
Packaging Details:	Standard configuration packaging
Delivery Time:	30 work days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100SETS /MONTH

Contact Now

VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking

Description

Speed:	6000rpm	Color:	Custom-made
Cutting Feed:	1-12000mm/min	Packing:	Export Standard
Number Of Axes:	3 4 5	Positional Accuracy:	±0.01mm
Core Components:	Motor	Guide Way Type:	Linear Guide Way Type
Weight:	12000kg	Accuracy:	±0.005mm
Controlling Mode:	Fanuc Mitsubishi Siemens Gsk System
Highlight:	Metalworking CNC Vertical Machining Centers

Product Description

VMC1580 3/4/5 axis vertical machine center cnc milling machine with price is composed of mechanical equipment and numerical control system. VMC1580 vertical turret metal cnc tool large milling machine is an automated machine that is suitable for efficient machining of complex parts.

◆The main large parts of the machine tool: the base, saddle, worktable, column, and headstock are all made of high-quality resin sand molding, high-strength high-quality cast iron, with a complete heat treatment process to eliminate residual stress, and sufficient reinforcement plates are arranged to ensure The whole machine has sufficient strength, rigidity and high stability

◆The XY axis adopts roller linear guide, which has strong rigidity and good dynamic accuracy; ◆The three-axis transmission adopts Taiwan-made ground double-nut ball screw, which is compact in structure, stable in movement and high in precision. The screw support adopts the original imported screw support bearing made in Japan, and the two ends are pre-stretched to eliminate the loss of precision caused by thermal elongation. Form a stable and high-rigidity mechanical transmission system;

◆The base adopts a casting large water tray structure, which has good waterproof performance;

◆The high-rigidity Taiwan-made BT50 spindle is lubricated with grease, which can make the spindle bearings get constant and reliable lubrication, which is economical and environmentally friendly and realizes long-term maintenance-free;

Product Paramenters

Model	Unit	VMC1580
working tale size	mm	800x1700
X/Y/Z travel	mm	1500/800/700
Distance between spindle end and table	mm	170/840
Distance between spindle center and column guide way	mm	810
Maximum weight of working table	kg	1500
Table-T-slot	mm	5-22-135
X/Y/Z axis rapid feed	mm/min	15/15/12
Three axis working rapid speed	mm/min	6000
Positioning accuracy	mm	±0.001
Repeat positioning accuracy	mm	±0.0075
Spindle speed	rpm	6000
Spindle taper	mm	BT50
Torque force of spindle motor	nm/kw	15/18.5
Magazine tool capacity	pcs	24(dis type)
machine size	mm	430032003100
machine weight	kg	13000

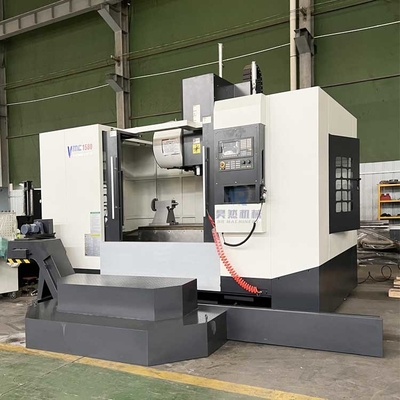

Detailed Images

Auto tool changer

Optional configuration: 3 axis ,

4 axis ,5 axis :

GSK cnc system

NSK ball screw and bearing

Electric cabinet

Heat extractor
