High Productivity Automatic VMC840 CNC Vertical Machining Center Manufacturers

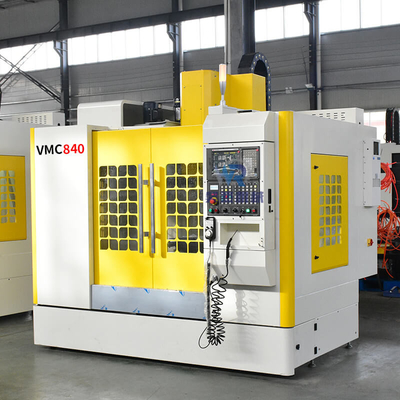

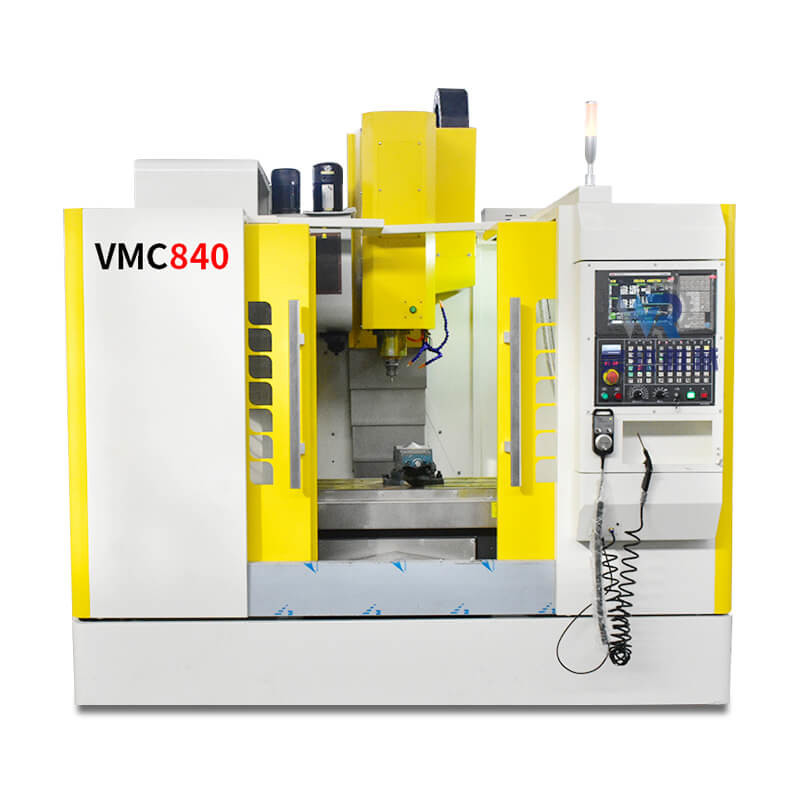

Large Image : High Productivity Automatic VMC840 CNC Vertical Machining Center Manufacturers

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE ISO
Model Number:	vmc 840

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26700$-32000$ per one set
Packaging Details:	wooden package
Delivery Time:	After 15-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability:	60 per a month

Contact Now

High Productivity Automatic VMC840 CNC Vertical Machining Center Manufacturers

Description

Name:	High Productivity Automatic VMC840 Milling Machine CNC Vertical Machining Center	Number Of Axes:	3
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight:	BT120 CNC Vertical Machining Center , VMC840 BT120 CNC Vertical Machining Center , VMC840 vertical machining manufacturers

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	7000	8000	12000

Product DescriptionVMC840 three-axis rail, hard rail, two lines and one hard rail, can be equipped with four axis and five axis, a variety of CNC system optional machine tool can remote transmission G code, mobile phone programming, mobile phone can always check the workshop production status and capacity. Private cloud technology library, drawings are constantly updated Machining center 840 machine tool, vertical machining center, can be used in aerospace, automobile parts, machining and mold manufacturing fields, suitable for medium and small parts of high precision and high efficiency processing and drilling, milling, tapping, boring automatic processing

Application:

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling

,tapping,boring ,etc.

Product Advantages

The advantages of CNC Vertical Milling Machine

The main parts of machine tool 840 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metallostructure.

Machining center 840 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.

The machining center 840 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.

Machining center 840 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine

tool.

Application Example

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling

,tapping,boring ,etc.

Machine detection

Packaging＆Shipping

1. Outside package: Standard marine export plywood case.2. Inner package: Stretchy film and plastic film for humidity. We can

package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
