5 Axis CNC Vertical Milling Machine Machining Center VMC840

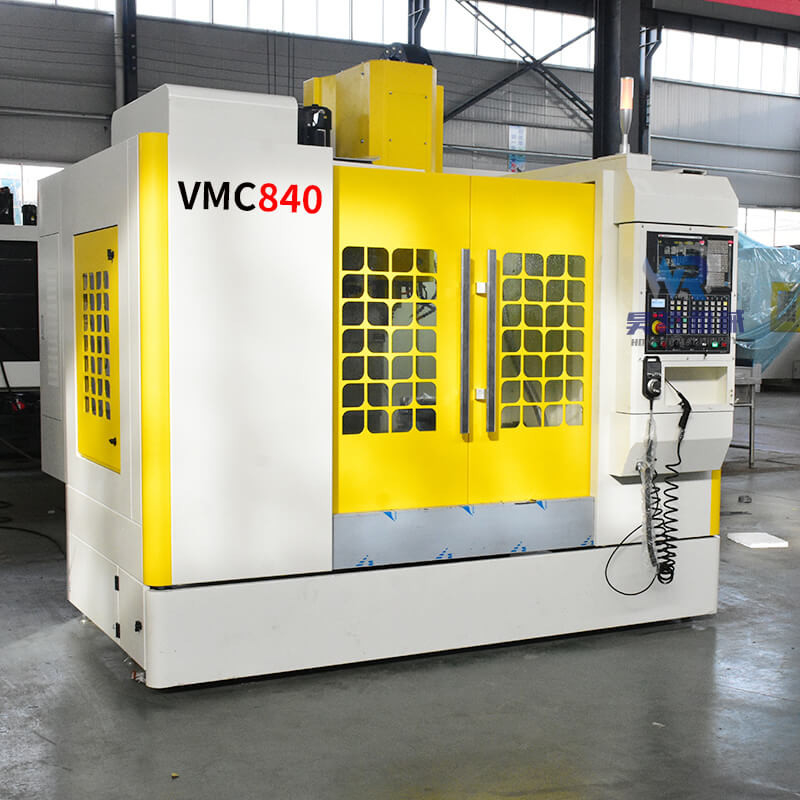

Large Image : 5 Axis CNC Vertical Milling Machine Machining Center VMC840

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE ISO
Model Number:	vmc 840

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26700$-32000$ per one set
Packaging Details:	wooden package
Delivery Time:	After 15-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability:	60 per a month

Contact Now

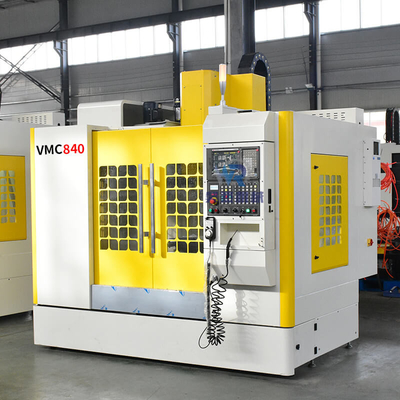

5 Axis CNC Vertical Milling Machine Machining Center VMC840

Description

Name:	VMC840 5 Axis Center Vertical Machining Center	Number Of Axes:	5
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight:	5 axis CNC Vertical Milling Machine , VMC840 CNC Vertical Milling Machine , 5 axis vertical mill Machine

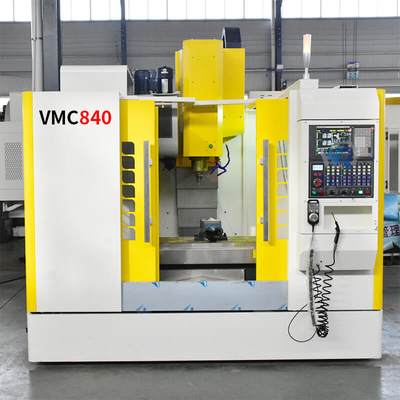

5 Axis CNC Vertical Milling Machine Machining Center VMC840

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	7000	8000	12000

Product Description
A true 5-axis machine can allow for continuous 5-axis machining simultaneously. This increases both speed and accuracy when machining the part.

CNC Vertical Mills generally have a single spindle, automatic tool changer, work table and CNC Control.

The spindle on a CNC Machining Center can have a wide range of speeds depending on what material is being cut and the depth of cut that is required. Typical spindle speed ranges from 0 to 10,000 RPM. Higher speeds are used for lighter materials including graphite and aluminum among others. Higher speeds can reach 12,000 RPM up to 50,000 RPM and higher.

Product Advantages

The advantages of CNC Vertical Milling Machine

1 .Tool Changer — A tool changer greatly increases a VMC's productivity by allowing for the automatic, computer-controlled selection of tools for a variety of tasks from rough cutting to fine hole boring.

2 .Coolant System — To keep parts and cutters cool and lubricated, most VMCs employ some sort of recirculating coolant system; which is usually a mix of soluble oil and water but can be a variety of other liquids as well.

3 .Rotating Tables — Adding additional Axes to the machine can greatly increase its productivity by turning a simple three-axis machine into a four- or even five-axis system capable of machining complex components with varying surfaces (such as turbine blades). 6.Quick Loading Loaders — Another great addition to significantly increase productivity is the use of shuttle tables or other automatic part loading systems. These can decrease downtime and greatly increase the spindle “ON” time of most VMC systems.

4 .High-rigidity/high-stability main structure

Use 3D-CAD and finite element analysis to delevlop high-rigidity machine tool structure

Resin bonded sand molding,twice aging,and special tank-type structure and optimized rib-reinforced lay-out,make the machine tool of good rigidity and hysteresis loss

Application Example

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling

,tapping,boring ,etc.

Machine detection
