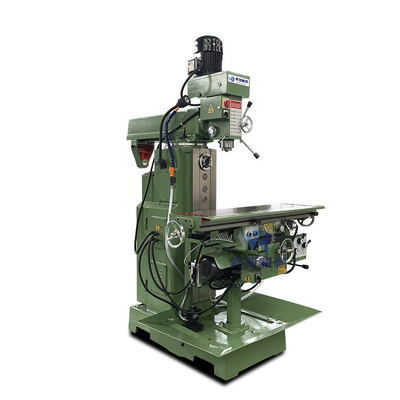

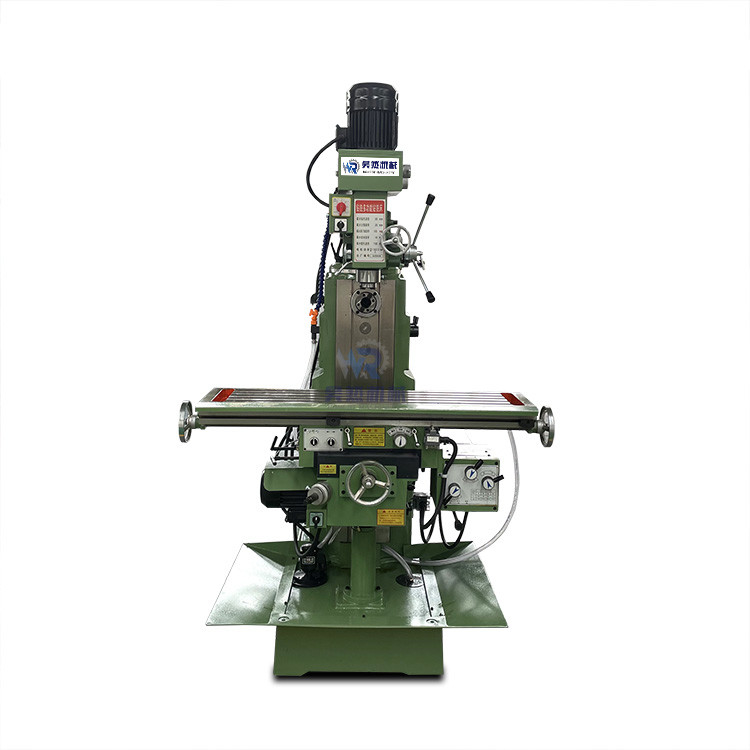

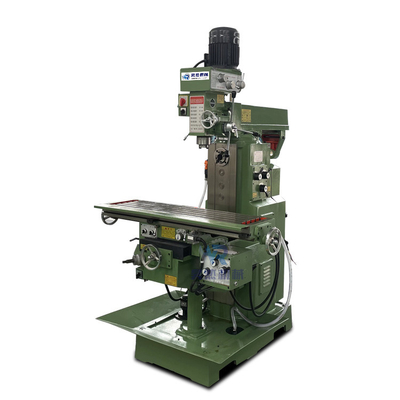

Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm

Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm
Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm

Large Image :  Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: ZX6350A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: usd3300
Packaging Details: wooden packing
Delivery Time: 30~45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm

Description
Table Travel (X) (mm): 600 Table Travel (Y) (mm): 260
Table Travel (Z) (mm): 360 Spindle Taper: ISO40
Range Of Spindle Speed(r.p.m): 400 - 1300 R.p.m Type: VERTICAL
Highlight:

Horizontal CNC Vertical Milling Machine

,

120mm CNC Vertical Milling Machine

,

Horizontal cnc vertical drilling machine

Milling machines Multi function vertical horizontal drilling milling machine ZX6350A


Product Paramenters
Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm 0
Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm 1
No
Item
ZX6350A
ZX6350C
ZX6350D
1
Spindle taper
MT4 ISO40
2
Distance from spindle to table
100-530 mm
3
Distance horizontal spindle to table
0-300 mm
4
Distance from spindle to column
200-700 mm
5
Spindle speeds
40-1300 rpm
5
Spindle travel
120 mm
6
Max drilling capacity
M16
7
Head movement
±45°
8
Table travel(X/Y/Z)
640/260/430 mm
9
Max weight of work piece
200 KG
10
T slot
3/14/70 mm
11
X axis driving motor
370 W
12
Total power
2200 w
The machine tool is a new type of drilling and milling machine. In addition to the function of vertical milling, it also has the function of horizontal milling. The transmission of horizontal milling shaft is realized through a group of tower wheels, with stable transmission and high power. It is widely used in metal materials and other materials for drilling, milling, boring, grinding and other cutting. It is suitable for single piece or batch production of instrument industry, machinery manufacturing, architectural decoration and machine repair workshops. It is an ideal equipment for machining.
1. The spindle speed of zx6350A lifting table milling machine is adjusted and variable by two-speed motor and two-stage gear. There are eight stages in total, and its range is 115 ~ 1750r.p.m.
2. This machine is a multi-function drilling and milling machine with square box. The vertical milling is driven by gear and the horizontal milling is driven by belt. It is equipped with a mechanical feeder, which can realize the longitudinal automatic feeding of the workbench.
3. The milling head of this machine tool is installed at the front end of the sliding arm and can move forward and backward. It can not only rotate 45 ° left and right in the vertical plane, but also rotate 360 ° on the bed, with good processing performance.
4. The working table of zx6350A lifting table milling machine can realize manual feed and motorized feed in the X direction, and manual feed in the y/z direction. The feed speed can meet different processing requirements.
5. The lubrication device of zx6350A lifting table milling machine can forcibly lubricate the lead screws and guide rails in X, y and Z directions, reduce the wear of the machine tool and ensure the efficient operation of the machine tool; At the same time, the cooling system changes the coolant flow by adjusting the nozzle to meet different processing needs.
6. The overall design of zx6350A lifting table milling machine conforms to the principle of ergonomics and is easy to operate; The operation panel is designed with visual symbols, which is simple and intuitive.
Optional accessories



The main feature:

1. Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses

3. With V-belt spindle drive and gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill

Packaging＆Shipping
Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm 2
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm 3
Exhibition
Horizontal Drilling CNC Vertical Milling Machine Multifunction 120mm 4

FAQ

1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
