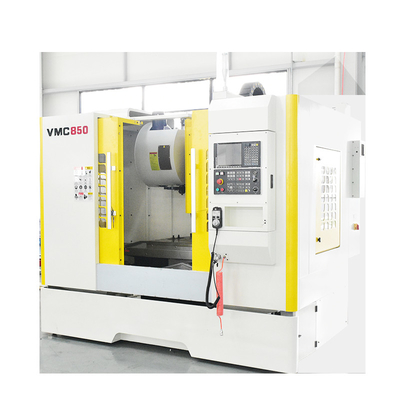

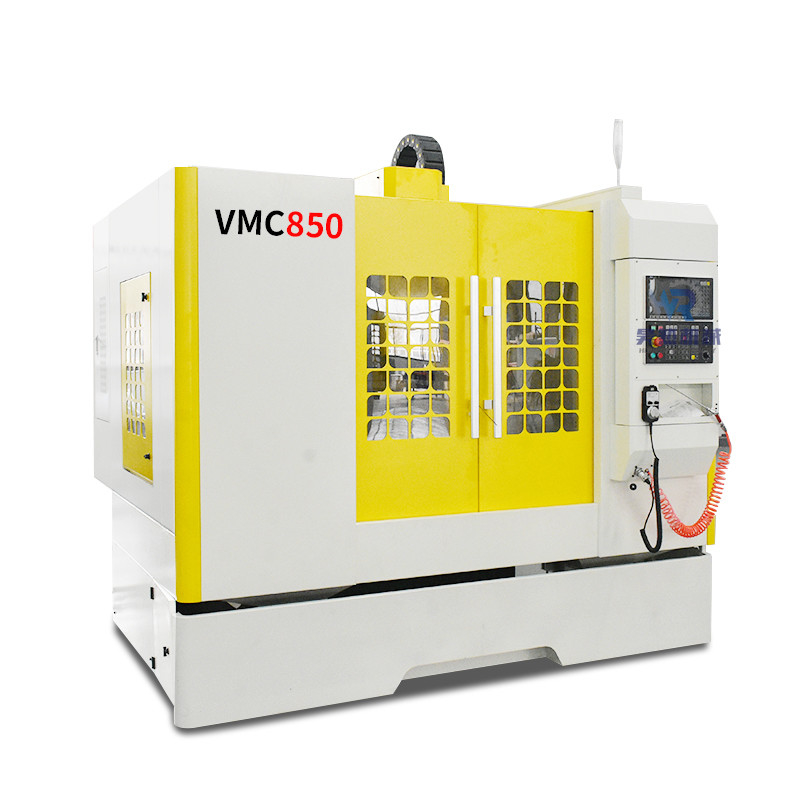

5 Axis Metal CNC Milling Center Machine VMC850 OEM

5 Axis Metal CNC Milling Center Machine VMC850 OEM
5 Axis Metal CNC Milling Center Machine VMC850 OEM 5 Axis Metal CNC Milling Center Machine VMC850 OEM

Large Image :  5 Axis Metal CNC Milling Center Machine VMC850 OEM

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: vmc850
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 19000-40000usd
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

5 Axis Metal CNC Milling Center Machine VMC850 OEM

Description
Model: VMC850 Table Size (mm): 1000*500
Max. Allowable Load (Kg): 500 X-axis Stroke (mm): 800
Y-axis Travel (mm): 500 Z-axis Travel (mm): 500
Machine Weight (Kg): 5300 Spindle Speed (r/min): 8000
Highlight:

5 Axis CNC Milling Center

,

VMC850 CNC Milling Center

,

CNC 5 axis vmc machine



5 Axis Metal CNC Milling Center Machine VMC850 OEM

Vmc850 cnc machine Center is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). The guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. cnc machine Center The main shaft is driven by servo motor through the same step belt. cnc machine Center It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. It is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts. It can be equipped with a fourth rotating shaft to meet the processing requirements of special parts. cnc machine Center
Model
VMC650
VMC840
VMC850s
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800

Model
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200*600
1200*700
1400*700
1700*800
1600*800
Max. allowable load (Kg)
800
800
800
1500
1500
X-axis stroke (mm)
1200
1200
1300
1500
1600
Y-axis travel (mm)
650
700
700
800
900
Z-axis travel (mm)
650
700
750
700
700
T-slot
5-18-100
5-18-130
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
710
710
713
855
936
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
7000
7000
8000
12000
12000



5 Axis Metal CNC Milling Center Machine VMC850 OEM 0

Product Details
5 Axis Metal CNC Milling Center Machine VMC850 OEM 1
1.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.
2. The X, y and Z guide rails have the characteristics of high speed, high rigidity, low friction, low noise and low temperature rise change. They cooperate with automatic forced lubrication to improve the accuracy and service life of the machine tool;
3. Z-direction counterweight is added for balance to ensure smooth and stable movement of headstock; The z-direction drive motor is equipped with power loss braking device;
Packaging＆Shipping
5 Axis Metal CNC Milling Center Machine VMC850 OEM 2

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests. Delivery Detail: Shipped in 3-20 working days after payment.
Certifications
5 Axis Metal CNC Milling Center Machine VMC850 OEM 3

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
5 Axis Metal CNC Milling Center Machine VMC850 OEM 4

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Company information
5 Axis Metal CNC Milling Center Machine VMC850 OEM 5

Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of CNC Milling Machine ,Machining Center ,Grinding Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
FAQ
FAQ
1. What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A: 30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4. How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
5. Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6. What's the MOQ? A: 1 set . 7.How long is the machine warranty?
A: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
