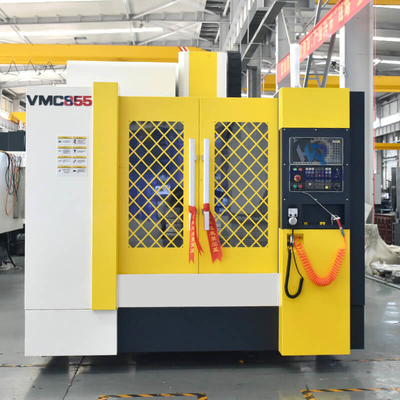

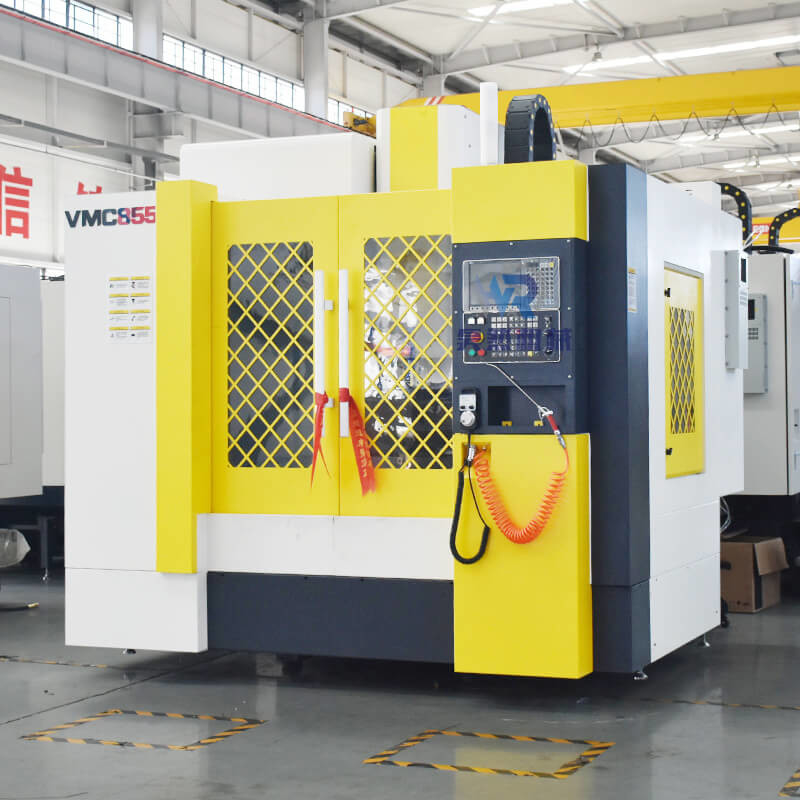

CNC 5 Axis VMC Machine VMC855 Vertical Machining Center

CNC 5 Axis VMC Machine VMC855 Vertical Machining Center
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center CNC 5 Axis VMC Machine VMC855 Vertical Machining Center

Large Image :  CNC 5 Axis VMC Machine VMC855 Vertical Machining Center

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 855
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 200 per a month
Contact Now

CNC 5 Axis VMC Machine VMC855 Vertical Machining Center

Description
Name: CNC 5 Axis VMC 855 Taiwan Vertical Machining Center CNC Vertical Milling Machine Number Of Axes: 5
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

Vertical 5 axis vmc machine

,

VMC855 5 axis vmc machine

,

VMC855 Vertical Machining Center





CNC 5 Axis VMC Machine VMC855 Vertical Machining Center

Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
7000
8000
12000
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 0
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 1
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 2




Product Description
VMC855 three-axis rail, hard rail, two lines and one hard rail, can be equipped with four axis and five axis, a variety of CNC system optional machine tool can remote transmission G code, mobile phone programming, mobile phone can always check the workshop production status and capacity. Private cloud technology library, drawings are constantly updated Machining center 855 machine tool, vertical machining center, can be used in aerospace, automobile parts, machining and mold manufacturing fields, suitable for medium and small parts of high precision and high efficiency processing and drilling, milling, tapping, boring automatic processing
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Product Advantages

The advantages of Machining center 855

1. Tool Changer — A tool changer greatly increases a VMC's productivity by allowing for the automatic, computer-controlled selection of tools for a variety of tasks from rough cutting to fine hole boring.
2.Coolant System — To keep parts and cutters cool and lubricated, most VMCs employ some sort of recirculating coolant system; which is usually a mix of soluble oil and water but can be a variety of other liquids as well.
3. Chip/Screw Conveyor— To evacuate the chips from the work zone, a variety of chip conveyors and chip augers may be employed to increase productivity and reduce downtime from manually shoveling out waste chips.
4. Full Covers/Enclosures— These can be added to reduce the splash/splatter caused by milling operations and protect the operators and environment from the machining process.
5. Rotating Tables — Adding additional Axes to the machine can greatly increase its productivity by turning a simple three-axis machine into a four- or even five-axis system capable of machining complex components with varying surfaces (such as turbine blades).
6. Quick Loading Loaders — Another great addition to significantly increase productivity is the use of shuttle tables or other automatic part loading systems. These can decrease downtime and greatly increase the spindle “ON” time of most VMC systems.
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 3
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 4
Machine detection
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 5
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 6
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 7
Packaging＆Shipping
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 8
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 9
Certifications
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 10
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 11
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 12
Exhibition
CNC 5 Axis VMC Machine VMC855 Vertical Machining Center 13

FAQ

1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

3. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.

4. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
