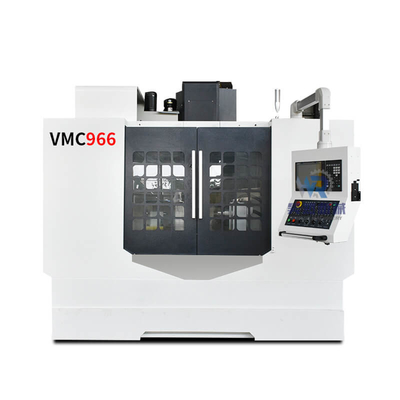

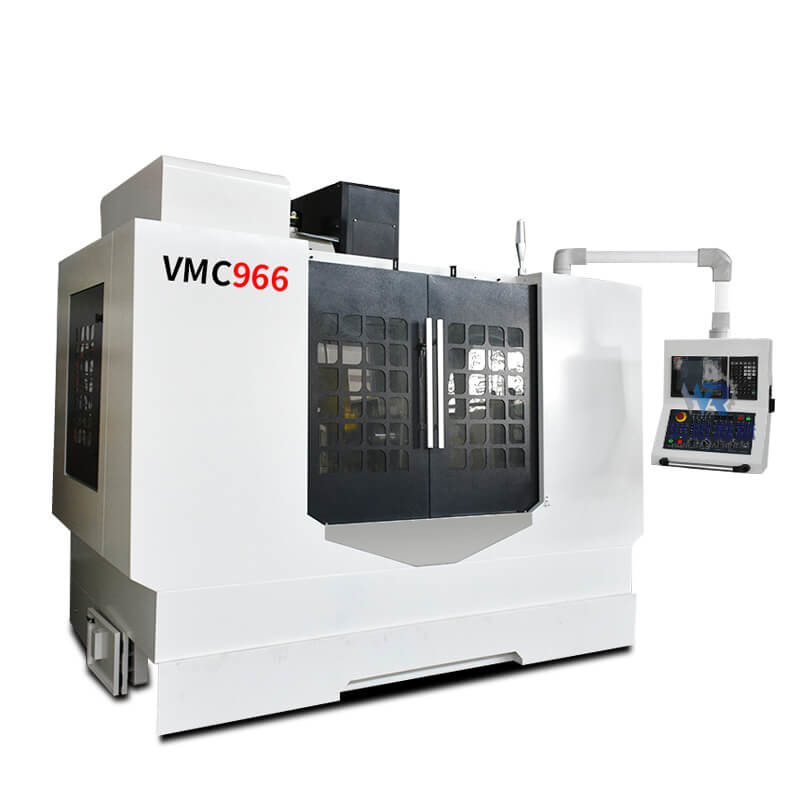

OEM Mold CNC Machine VMC966 5 Axis Milling Machine

OEM Mold CNC Machine VMC966 5 Axis Milling Machine
OEM Mold CNC Machine VMC966 5 Axis Milling Machine OEM Mold CNC Machine VMC966 5 Axis Milling Machine

Large Image :  OEM Mold CNC Machine VMC966 5 Axis Milling Machine

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: vmc966
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 19000-40000usd
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

OEM Mold CNC Machine VMC966 5 Axis Milling Machine

Description
Warranty: 1 Year Condition: New
Type: Vertical Power(w): 7.5/11 KW
Spindle Taper: BT40 Spindle Speed: 8000 Rpm
Max. Allowable Load (Kg): 600 Table Size: 1100*550
Highlight:

OEM mold cnc machine

,

VMC966 mold cnc machine

,

VMC966 5 axis milling machine

 OEM Mold CNC Machine VMC966 5 Axis Milling Machine

Model
VMC650
VMC840
VMC850
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800
Model
VMC1270
VMC1370 I
VMC1580
Table size (mm)
1200*700
1400*700
1700*800
Max. allowable load (Kg)
1000
800
1500
X-axis stroke (mm)
1200
1300
1500
Y-axis travel (mm)
700
700
800
Z-axis travel (mm)
700
750
700
T-slot
5-18-115
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
710
713
855
spindle end face to work table (mm)
130-850
120-870
160-860
Spindle taper hole
BT50
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
6000
X/Y/Z rapid movement (m/min)
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
9000
8000
12000
OEM Mold CNC Machine VMC966 5 Axis Milling Machine 0
VMC966 CNC milling machineHigh degree of production automation can reduce the labor intensity of operators. It is conducive to the automation of production management;VMC966 CNC milling machine
OEM Mold CNC Machine VMC966 5 Axis Milling Machine 1



1 .Taiwan HIWIN high precison guideway 2 .Taiwan-made spindle Unit,8000-12000rpm available 3.Reliable Control System: vertical machining center is suitable for producing metal product and parts in all shapes.

OEM Mold CNC Machine VMC966 5 Axis Milling Machine 2

mechanical accuracy test can make every customer more assured
Packaging＆Shipping
OEM Mold CNC Machine VMC966 5 Axis Milling Machine 3

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
customer visiting
OEM Mold CNC Machine VMC966 5 Axis Milling Machine 4

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Company information
OEM Mold CNC Machine VMC966 5 Axis Milling Machine 5

Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of cnc milling machine ,fiber laser cutting machines, plasma cutting machines, and other products, which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
