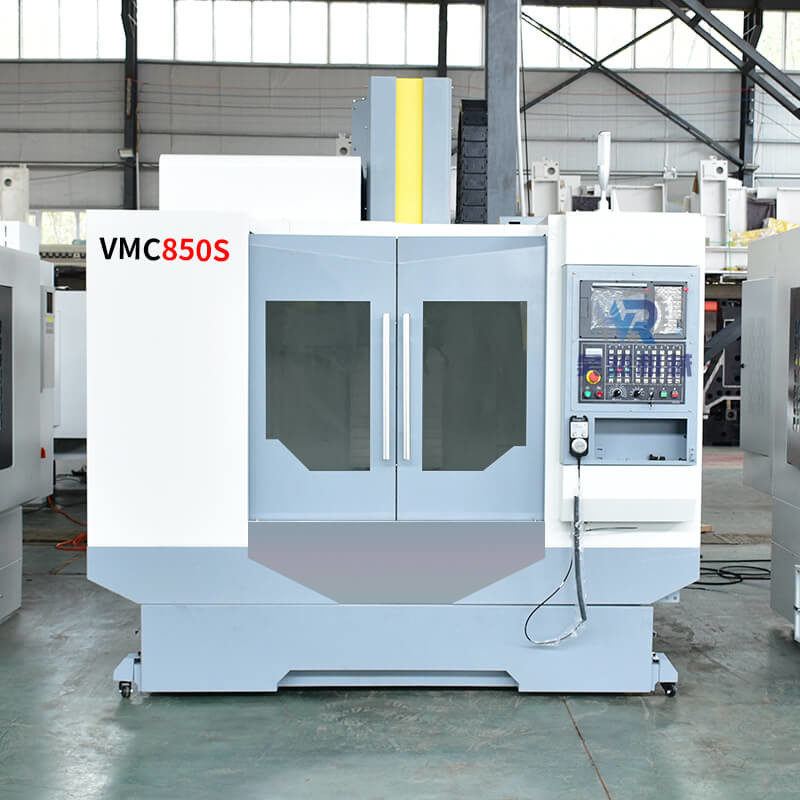

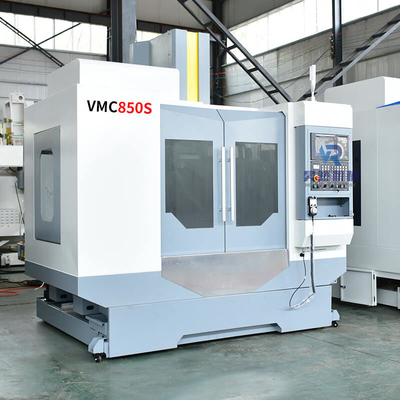

Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S

Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S

Large Image :  Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 850S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 200 per a month
Contact Now

Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S

Description
Name: High Precision VMC850S Linear Guide Rail CNC Vertical Machining Center Number Of Axes: 3
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

VMC horizontal cnc milling machine

,

Metal horizontal cnc milling machine

,

VMC cnc metal milling machine



Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S

Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
7000
8000
12000
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 0
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 1
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 2




Make the Impossible Possible:
1.Most economical drilling and tapping solution for metal parts, typically aluminum alloy, etc.
2.High precision and efficiency with ultrasonic spindle technology.
3.FEM enabling optimal design and lightweight structure while ensuring high rigidity of the machine.
4.Optional 4th/5th axis rotary table available for multi-sided machining in one clamping.
5.Lightweight and ultra-compact enough to go and down stairs.
6.Optional ATC: 21/16 tools.
7.Significant tool life improvement.
8.Free Workpiece Testing.
Product Advantages

The advantages of CNC Vertical Milling Machine

1. The main parts of machine tool 850 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metallostructure.
2. Machining center 850 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. Machining center 850 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 3
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 4
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 5
Machine detection
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 6
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 7
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 8
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 9
Certifications
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 10
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 11
Exhibition
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S 12
