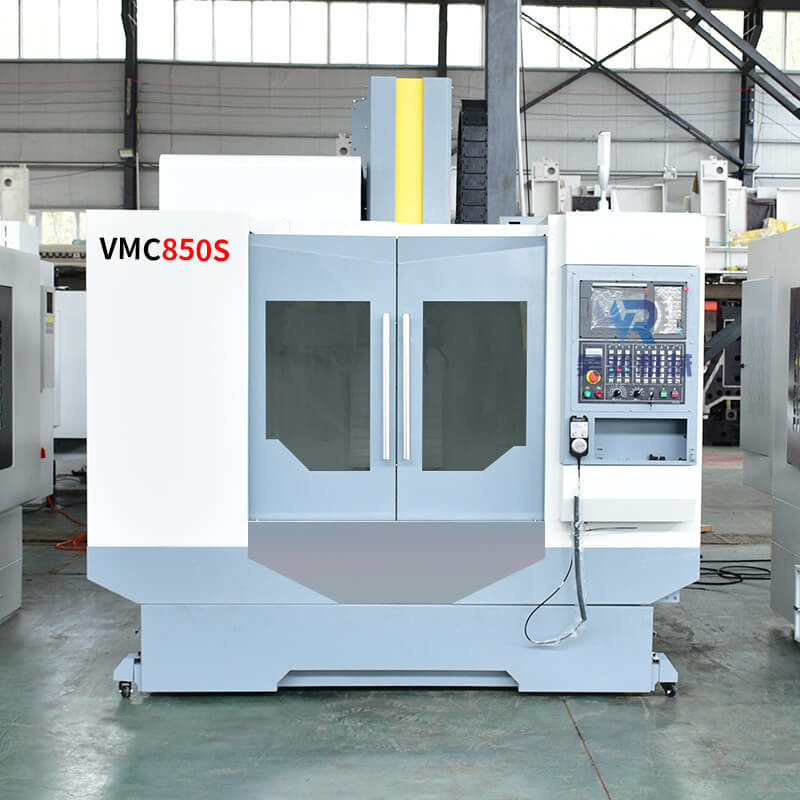

Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850

Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850

Large Image :  Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 850S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 200 per a month
Contact Now

Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850

Description
Name: 4axis Fully Automatic Cnc Vertical Machining Center Vmc850 Number Of Axes: 4
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

Automatic Vmc CNC Milling Center

,

Vmc850 CNC Milling Center

,

Vmc850 mini cnc milling machine

 Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850

Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
7000
8000
12000
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 0
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 1
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 2




Product Description
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use. 2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting 3.The pre tension precision ball screw drive 4.The high speed, high precision, high rigidity spindle unit
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Advantages

The advantages of CNC Vertical Milling Machine

CNC Vertical Machining Centers can include an additional axis to do specific cutting applications.
Rotary Tables are common as a 4th Axis on mills. They can vary in size and weight capacities and can have a horizontal or vertical configuration. They are generally an add-on to a standard 3-axis mill. The mill will have to have a proper 4th axis interface (generally a 4th axis card, drive and CNC Control) to accept a 4th axis rotary table.
Trunnion Tables can also be an add-on to a vertical CNC Mill. A Trunnion table adds a 4th and 5th axis to a standard mill by incorporating an A-Axis (which rotates around the X-Axis) as well as a C-Axis (which rotates around the Z Axis).
1. The main parts of machine tool 850 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metallostructure.
2. Machining center 850 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center 850 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
4. Machining center 850 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 3
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 4
Application Example
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high eficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other
industries.
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 5
Machine detection
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 6
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 7
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Fully Automatic CNC Milling Center Vertical Mini Cnc Milling Machine Center Vmc850 8
