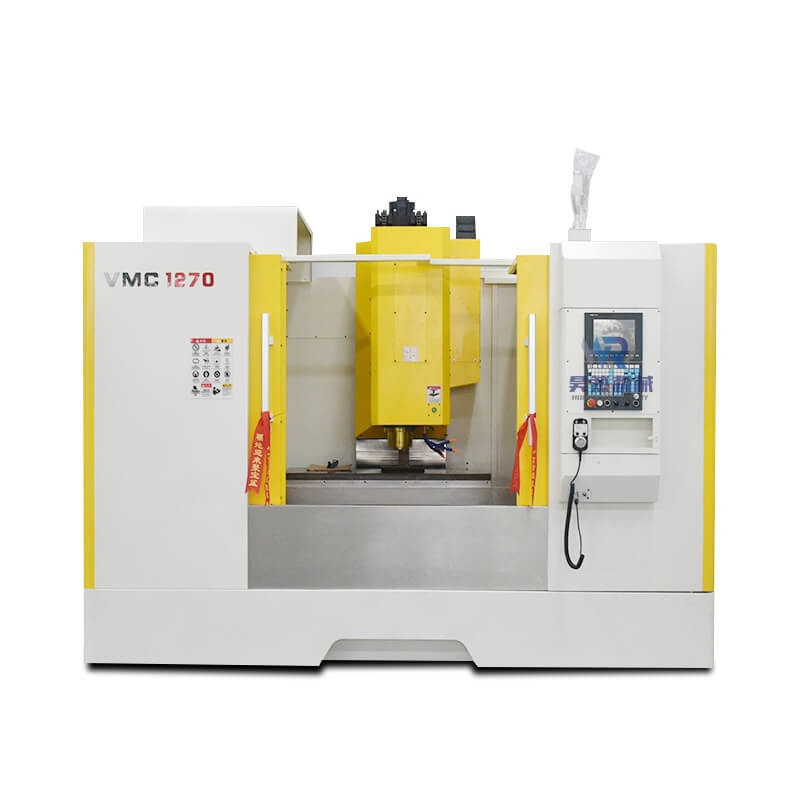

3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650

3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650

Large Image :  3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 1270
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 200 per a month
Contact Now

3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650

Description
Name: VMC1270 3-Axis Vertical Machining Center Number Of Axes: 3
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

1300×650 CNC Vertical Milling Machine

,

VMC1270 CNC Vertical Milling Machine

,

VMC1270 vertical cnc machine

Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
VMC1050
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
1200x420
Max. allowable load (Kg)
400
300
500
500
600
500
X-axis stroke (mm)
650
800
800
800
900
1000
Y-axis travel (mm)
400
400
500
550
600
500
Z-axis travel (mm)
550
550
500
550
600
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
)575
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
100-650
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
18/18/18
Machine Weight (Kg)
3800
3200
5300
5500
5600
5500

Model
VMC1160
VMC1165
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200x600
1200x600
1200x600
1300×650
1400x700
1700X800
1600*800
Max. allowable load (Kg)
800
800
800
1000
1000
1500
1500
X-axis stroke (mm)
1100
1100
1200
1200
1300
1500
1600
Y-axis travel (mm)
600
650
650
700
700
800
900
Z-axis travel (mm)
600
650
650
750
750
700
700
T-slot
5-18x100
5-18-100
5-18-100
5-18-120
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
650
710
710
785
713
855
936
spindle end face to work table (mm)
120-720
120-720
120-770
120-850
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/24
36/36/36
36/36/36
24/24/24
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
6500
6800
7000
7500
8000
12000
12000

3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 0
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 1




Product Description
Vertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).
Product Advantages

The advantages of Machining center

The main parts of machine tool in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metal structure.
The machining center machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 2
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 3
Machine detection
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 4
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 5
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 6
Packaging＆Shipping
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 7
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Certifications
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 8
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 9
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 10
Exhibition
3 Axis CNC Vertical Milling Machine Center VMC1270 With Spindle 1300×650 11

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Gantry Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
