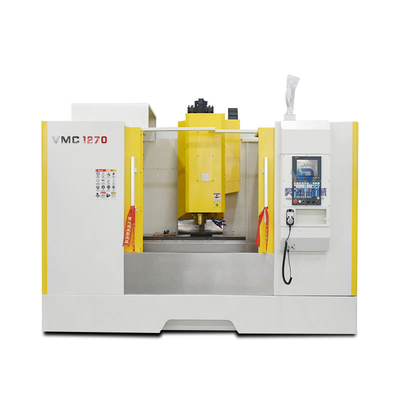

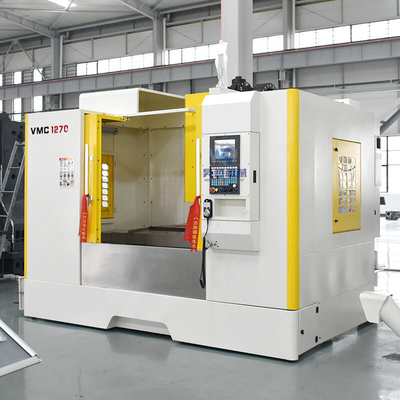

New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making

New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making

Large Image :  New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 1270
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 200 per a month
Contact Now

New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making

Description
Name: 2022 New Design Vertical Machine Center Vmc1270 5 Axis Number Of Axes: 5
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

CNC vmc 1270

,

Horizontal vmc 1270

,

CNC 5 axis horizontal machining center



New Vertical VMC 1270 5 Axis Horizontal Machining Center For Mold Making



Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
VMC1050
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
1200x420
Max. allowable load (Kg)
400
300
500
500
600
500
X-axis stroke (mm)
650
800
800
800
900
1000
Y-axis travel (mm)
400
400
500
550
600
500
Z-axis travel (mm)
550
550
500
550
600
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
)575
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
100-650
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
18/18/18
Machine Weight (Kg)
3800
3200
5300
5500
5600
5500

Model
VMC1160
VMC1165
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200x600
1200x600
1200x600
1300×650
1400x700
1700X800
1600*800
Max. allowable load (Kg)
800
800
800
1000
1000
1500
1500
X-axis stroke (mm)
1100
1100
1200
1200
1300
1500
1600
Y-axis travel (mm)
600
650
650
700
700
800
900
Z-axis travel (mm)
600
650
650
750
750
700
700
T-slot
5-18x100
5-18-100
5-18-100
5-18-120
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
650
710
710
785
713
855
936
spindle end face to work table (mm)
120-720
120-720
120-770
120-850
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/24
36/36/36
36/36/36
24/24/24
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
6500
6800
7000
7500
8000
12000
12000

New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 0
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 1




Product Description
Machining centers are developed from CNC milling machines. The biggest difference from CNC milling machines is that the machining center has the ability to automatically exchange machining tools. By installing tools for different purposes on the tool magazine, the machining tools on the spindle can be changed through the automatic tool changer in one clamping to achieve a variety of machining.
Product Advantages

The advantages of Machining center

Advantage 1: CE, ISO certification.
Advantage 2: Full production tracking.
Advantage 3: Engineers stationed in the factory guarantee the highest quality.
Advantage 4: Low MOQ for only 1 unit.
Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions.
Advantage 6: Engineers traveling around the world to ensure after-sales service.
Advantage 7: OEM, ODM production, to meet customer needs in all aspects.
Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds.

New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 2
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 3
Machine detection
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 4
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 5
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 6
Packaging＆Shipping
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 7
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 8
Certifications
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 9
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 10
New Vertical CNC VMC 1270 5 Axis Horizontal Machining Center For Mold Making 11
