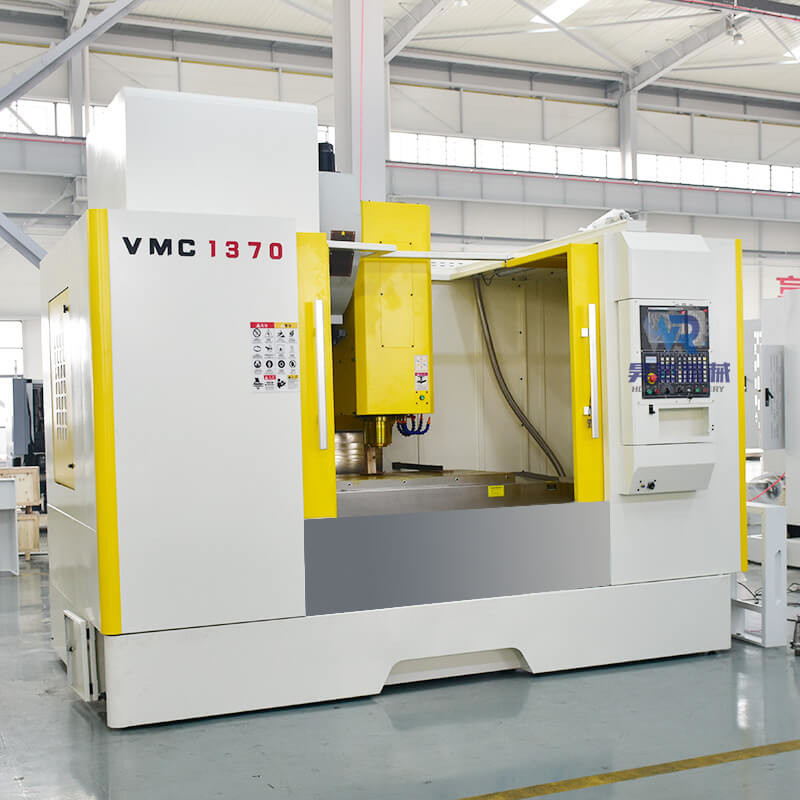

Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing

Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing

Large Image :  Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 1370
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 200 per a month
Contact Now

Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing

Description
Name: CNC Vertical Machining Center Vmc1370 4axis Automatic Milling Machine Number Of Axes: 4
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

1370 VMC CNC Milling Machine

,

Automatic VMC CNC Milling Machine

,

4 axis vmc manufacturing

 Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing

Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
VMC1050
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
1200x420
Max. allowable load (Kg)
400
300
500
500
600
500
X-axis stroke (mm)
650
800
800
800
900
1000
Y-axis travel (mm)
400
400
500
550
600
500
Z-axis travel (mm)
550
550
500
550
600
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
)575
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
100-650
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
18/18/18
Machine Weight (Kg)
3800
3200
5300
5500
5600
5500

Model
VMC1160
VMC1165
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200x600
1200x600
1200x600
1300×650
1400x700
1700X800
1600*800
Max. allowable load (Kg)
800
800
800
1000
1000
1500
1500
X-axis stroke (mm)
1100
1100
1200
1200
1300
1500
1600
Y-axis travel (mm)
600
650
650
700
700
800
900
Z-axis travel (mm)
600
650
650
750
750
700
700
T-slot
5-18x100
5-18-100
5-18-100
5-18-120
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
650
710
710
785
713
855
936
spindle end face to work table (mm)
120-720
120-720
120-770
120-850
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/24
36/36/36
36/36/36
24/24/24
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
6500
6800
7000
7500
8000
12000
12000


Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 0
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 1

Product Advantages

The advantages of Machining center

High power, high flow, high head cooling pump, to provide good cooling and cuttings (options).
Volumetric automatic timing and quantitative lubrication system to ensure that all parts of the machine are fully lubricated; Low oil level buzzer and PLC alarm at the same time to remind the operator to fill oil on time.
Slide rail series machining center adopts special rail seat design, narrow gauge, wide gauge, wide rail surface, full stroke support, no overhang, strong load force, making the machine suitable for large torque cutting; Track attached with wear resistant TURCITE- "B" fluorinated resin version, by manual precision scraping, so that the axis movement balance smoothly, the machine has a permanent precision.Line rail series machining center using imported line rail, to achieve high positioning accuracy, with long-term work reliability.
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 2
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 3
Machine detection
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 4
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 5
Packaging＆Shipping
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 6
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Certifications
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 7
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 8
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 9
Exhibition
Vmc1370 Automatic Vertical VMC CNC Milling Machine Center 4 Axis Manufacturing 10
FAQ

1:How can I choose the most suitable machines ? A:Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .

2.How can I get a quotation? A:Directly inquiry on alibaba,with the detail you needed,we will reply in 1 hour on work days.Or you can send Email to us.

3.What is the delivery time and the package? A:Normally about 20 days.International logistics standard for transport machine tools,like wooden package.

4.Do you have any certification? A:Yes,we have CE

5. What is your trade terms? A : FOB, CFR and CIF all acceptable.
