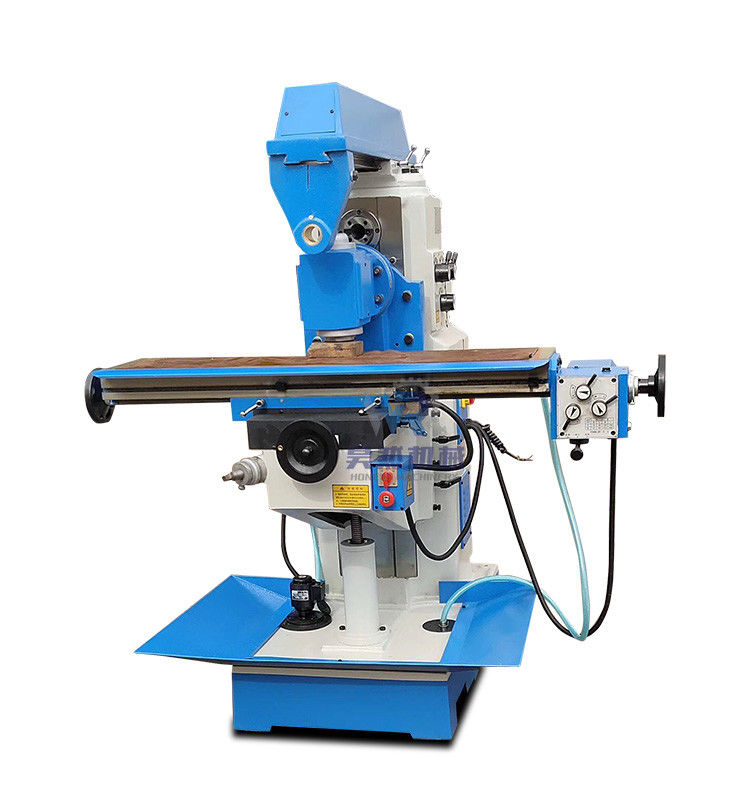

280mm 3kw Rotary Head Milling Machine Benchtop Vertical Milling Machine

Large Image : 280mm 3kw Rotary Head Milling Machine Benchtop Vertical Milling Machine

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	X6128

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd3500-6000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

280mm 3kw Rotary Head Milling Machine Benchtop Vertical Milling Machine

Description

NAME:	Strong Bearing Capacity Milling Machine X6128	Table Size:	1200*280mm
Table Travel:	680/280/400mm	T Slot(number-width-pitch):	5-14-50mm
Spindle Taper:	IS040 7:24	Main Motor Power:	3kw
Weight:	1300kg	Overall Dimension:	172514501750mm
Highlight:	Benchtop rotary head milling machine , 3kw rotary head milling machine , 280mm benchtop vertical milling machine

Product Description

Specifications	Units	X6128	X6032
Table size	mm	1200×280	1500x320
Table travel	mm	680/280/400	800/300/400
T slot(number-width-pitch)	mm	5-14-50	3-16-70
Spindle taper		IS040 7:24	IS040 7:24
Spindle speed range	rpm	40-1300 (12 steps)	40-1300 (12 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	3	3
Weight	kg	1300	2050
Overall dimension	mm	1725×1450×1750	2070x1900x1850

The main performance characteristics:
The main shaft adopts energy consumption braking,

with large braking torque, rapid and reliable stop.

The manual lubrication device can forcibly lubricate

the lead screw and guide rail. Table X- direction motorized feed

Company information

Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.

sample

Application:

1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Packaging＆Shipping

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

customer visiting

We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

FAQ

1: How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.
