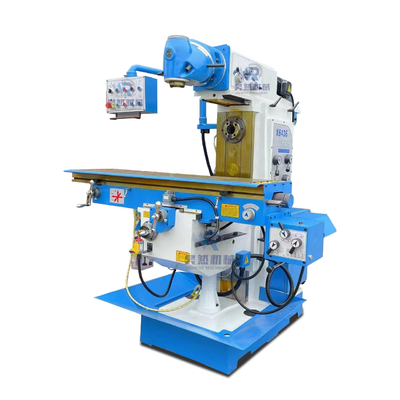

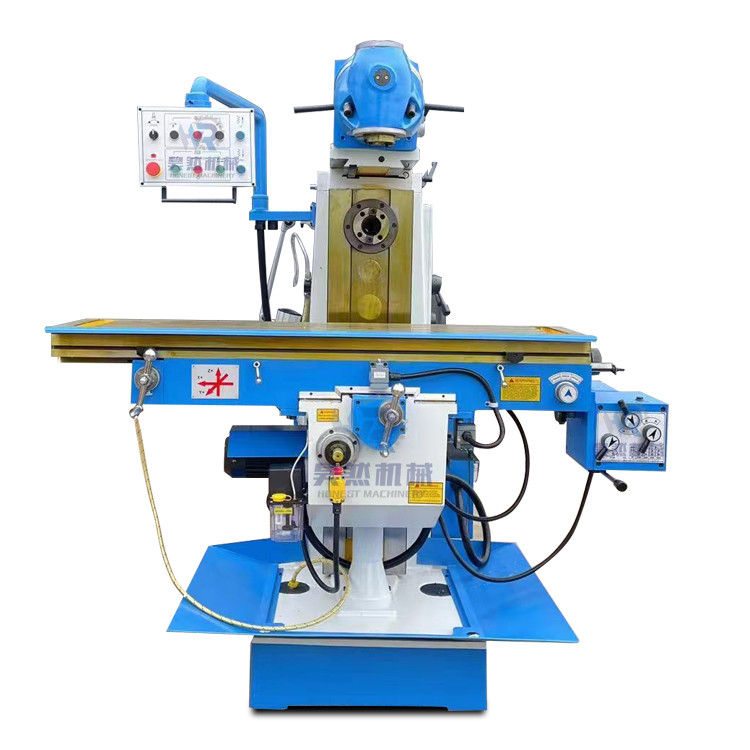

Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w

I'm Online Chat Now

Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w

Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w
Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w

Large Image :  Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: x6436
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd6000-10000
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month

Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w

Description
Name: Vertical And Horizontal Milling Machine X6436 Rotation Table Milling Distance From Vertical Spindle Hole Center To Column Surface: 350-850mm
Distance From End Face Of Vertical Spindle To Worktable: 210-710mm Distance From Horizontal Spindle Center To Workbench: 0-500mm
Distance From Horizontal Spindle Center To Lower Plane Of RAM: 175mm Vertical Motorized Lifting Speed Of Workbench: 590mm/min
Power Of Main Drive Motor: 4(V) 5.5(H)kw Power Of Table Motor Feed Motor: 750w
Highlight:

750w Universal Milling Machine

,

Tabletop Universal Milling Machine

,

Universal tabletop vertical mill



Rotation Tabletop Universal Milling Machine Vertical And Horizontal



Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Product Description
Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w 0
Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w 1
Specifications
Units
X6436
X6432
Table size
mm
1370x360
1370x320
(1500x360)
(1500x320)
Table stroke
mm
1000x320x500
1000x300x500
T-type slot numbers / width /space
mm
3-18-80
3-14-60
Distance from spindle axis to table surface
mm
0-400
0-400
Spindle taper

ISO50
ISO40
Spindle speed range(steps)
rpm
48-1660(V)
28-1660(V)
60-1800(H)
40-1300(H)
Milling head swivel range
°
360
360
Spindle motor power
KW
4
3
Overall dimensions
mm
2070x2025x2020
2020x1710x1994
Machine weight
Kg
2480
2100

The main performance characteristics:
It can realize vertical milling and horizontal milling.
Two rotary milling head and spindle can be rotated and adjusted at any angle.
It can be used for machining shell and mould
The worktable is powered in X and Y directions.

Company information
Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w 2

Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
sample
Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w 3

Packaging&Shipping
Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w 4

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
Certifications
Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w 5

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
Rotation Tabletop Universal Milling Machine Vertical And Horizontal 750w 6

We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
AFTER-SALE SERVICE

Installation and commissioning:
◆ Perfect preparation: Provide detailed preparation list of product use conditions
before product delivery.
◆ Rapid Delivery: Procedural installation and commissioning to ensure orderly and
rapid delivery of products.
◆ Personalized Preference Settings: It can provide personalized functions and
parameter setting services according.
Troubleshooting:
◆ 24 x 7 service hotline: Accept fault repairs all day long and respond quickly.
