ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center

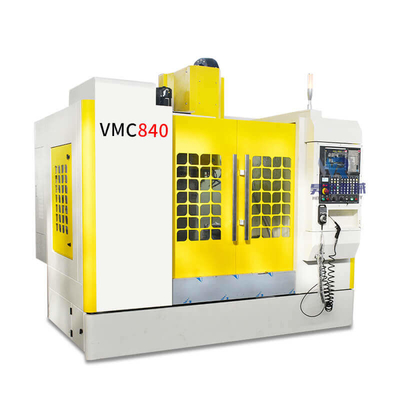

Large Image : ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc840

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	19000-40000usd
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center

Description

Table Size (mm):	1000*400	X-axis Stroke (mm):	800
Y-axis Travel (mm):	400	Z-axis Travel (mm):	550
T-slot:	3-18-140	Condition:	New
Type:	Vertical	Power(w):	7.5/11 KW
Highlight:	ODM VMC CNC Milling Machine , 3Axis VMC CNC Milling Machine , ODM vmc vertical machining center

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center

Model	VMC650	VMC840	VMC850	VMC855
Table size (mm)	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	300	500	500
X-axis stroke (mm)	650	800	800	800
Y-axis travel (mm)	400	400	500	550
Z-axis travel (mm)	550	550	500	550
T-slot	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	485	445	552	590
spindle end face to work table (mm)	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500

Model	VMC966 I	VMC1050	VMC1160	VMC1165
Table size (mm)	1100*550	1200*420	1200*600	1200*600
Max. allowable load (Kg)	600	500	800	800
X-axis stroke (mm)	900	1000	1100	1100
Y-axis travel (mm)	600	500	600	650
Z-axis travel (mm)	600	550	600	650
T-slot	5-18-100	5-18-100	5-18*100	5-18-100
spindle center to Z-axis guide surface (mm)	663	575	650	710
spindle end face to work table (mm)	100-700	100-650	120-720	120-720
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	18/18/18	36/36/24	36/36/36
Machine Weight (Kg)	5600	5500	6500	6800

Model	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200*600	1400*700	1700*800
Max. allowable load (Kg)	800	800	1500
X-axis stroke (mm)	1200	1300	1500
Y-axis travel (mm)	650	700	800
Z-axis travel (mm)	650	750	700
T-slot	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	710	713	855
spindle end face to work table (mm)	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	6000
X/Y/Z rapid movement (m/min)	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	7000	8000	12000


The machining precision is high and the machining quality is stable and reliable. At present, the pulse equivalent of NC device is generally 0.001mm, and the high-precision NC system can reach 0.1 μ m. In addition, NC machining also avoids the operation errors of operators

Product Details

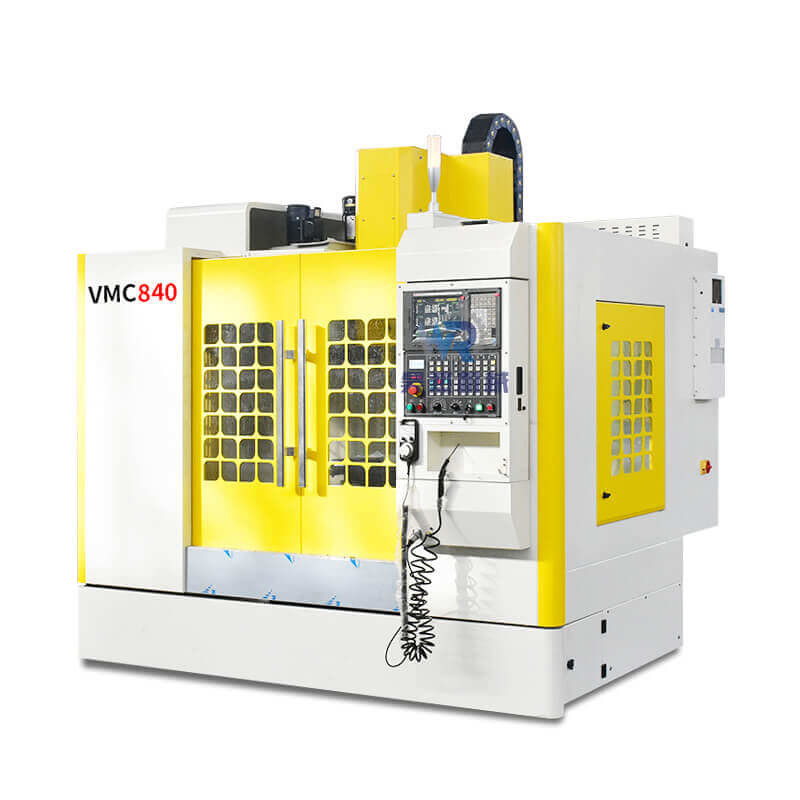

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center 0

BT40 tool handle is standard and BT50 tool handle is optional.HT300 cast iron is adopted for the main foundation

parts such as base, sliding seat, workbench, column and headstock;

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center 1

Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center 2

Taiwan HIWIN high precison guideway

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center 3

Automatic tool change system

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center 4

Casting customers are assured of machinery and precision testing

sample

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center 5

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.

Packaging＆Shipping

ODM VMC CNC Milling Machine 3 Axis VMC Vertical Machining Center 6

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
