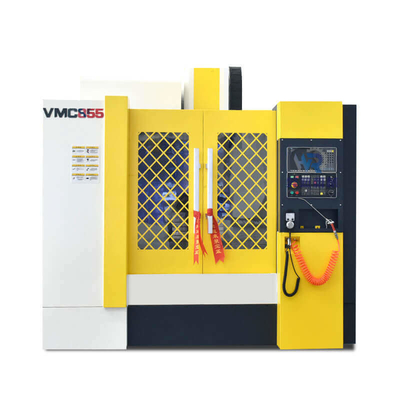

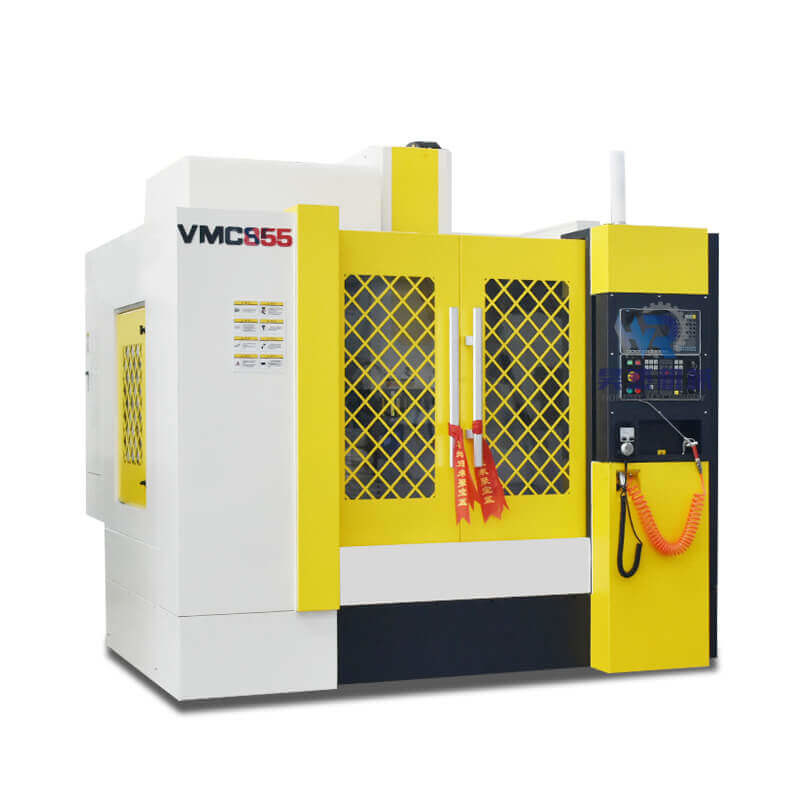

Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM

Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM
Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM

Large Image :  Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: vmc855
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd 19000-40000
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM

Description
Model: VMC855 Table Size (mm): 1000*550
Max. Allowable Load (Kg): 500 X-axis Stroke (mm): 800
Y-axis Travel (mm): 550 Z-axis Travel (mm): 550
Spindle Taper Hole: BT40-150 T-slot: 5-18-90
Highlight:

ODM VMC Machining Center

,

855 VMC Machining Center

,

1000x550 vmc 855

Vertical 5 Axis CNC VMC Machine Center VMC 855 ODM

Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
7000
8000
12000

Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM 0
Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM 1




Product Description
VMC855 three-axis rail, hard rail, two lines and one hard rail, can be equipped with four axis and five axis, a variety of CNC system optional machine tool can remote transmission G code, mobile phone programming, mobile phone can always check the workshop production status and capacity. Private cloud technology library, drawings are constantly updated Machining center 855 machine tool, vertical machining center, can be used in aerospace, automobile parts, machining and mold manufacturing fields, suitable for medium and small parts of high precision and high efficiency processing and drilling, milling, tapping, boring automatic processing

Product Advantages

The advantages of Machining center 855

1.Tool Changer — A tool changer greatly increases a VMC's productivity by allowing for the automatic, computer-controlled selection of tools for a variety of tasks from rough cutting to fine hole boring.
2.Coolant System — To keep parts and cutters cool and lubricated, most VMCs employ some sort of recirculating coolant system; which is usually a mix of soluble oil and water but can be a variety of other liquids as well.
Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM 2
Machine detection
Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM 3
Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM 4
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM 5
Packaging＆Shipping
Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM 6
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Vertical 5 Axis CNC VMC Machining Center VMC 855 1000x550 ODM 7
