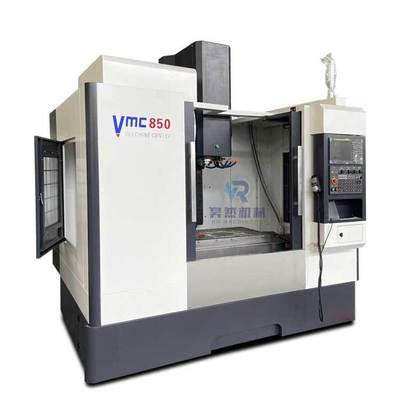

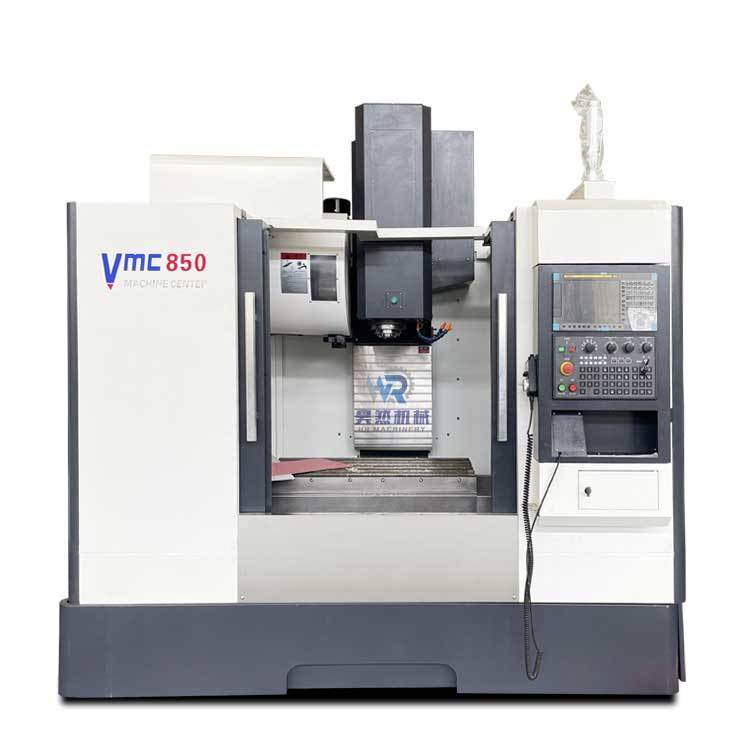

VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis

VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis
VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis
VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis

Large Image :  VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: vmc850
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 19000-40000usd
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis

Description
Model: VMC850 Table Size (mm): 1000*500
Max. Allowable Load (Kg): 500 X-axis Stroke (mm): 800
Y-axis Travel (mm): 500 Z-axis Travel (mm): 500
T-slot: 5-18-108 Spindle Speed (r/min): 8000
Highlight:

VMC850s small vertical machining center

,

Cnc small vertical machining center

,

vmc 850 cnc Machine

VMC850 cnc milling machine 3axis cnc machine vertical for metal

Product Description
VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis 0
Model
VMC650
VMC840
VMC850
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Model
VMC966 I
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800
Model
VMC1270
VMC1370
VMC1580
Table size (mm)
1200*700
1400*700
1700*800
Max. allowable load (Kg)
800
800
1500
X-axis stroke (mm)
1200
1300
1500
Y-axis travel (mm)
700
700
800
Z-axis travel (mm)
700
750
700
T-slot
5-18-130
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
710
713
855
spindle end face to work table (mm)
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
6000
X/Y/Z rapid movement (m/min)
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
7000
8000
12000

1 . HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; CNC Vertical Machine Center The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; CNC Vertical Machine Center The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.
2 . The X, y and Z guide rails have the characteristics of high speed, high rigidity, low friction, low noise and low temperature rise change. They cooperate with automatic forced lubrication to improve the accuracy and service life of the machine tool;
3 . Z-direction counterweight is added for balance to ensure smooth and stable movement of headstock; The z-direction drive motor is equipped with power loss braking device;
4 . CNC Vertical Machine Center X, y and Z feed directions adopt high-precision and high-strength internal circulation double nut preloading large lead ball screw, with high feed speed; The drive motor is directly connected with the lead screw through the elastic coupling, and the feed servo motor directly transmits the power to the high-precision ball screw without back clearance to ensure the positioning accuracy and synchronization of the machine tool;
5 . High speed, high precision and high rigidity spindle unit is adopted, with strong axial and radial bearing capacity. 6 . The spindle adopts the central air blowing structure. When the spindle looses the tool, the central high-pressure gas is quickly used to clean the inner cone of the spindle to ensure the accuracy and service life of tool clamping;
Product Details

Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: vmc850 cnc milling machine machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; vmc850s cnc milling machine The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, vmc850s cnc milling machine bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting;



Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: vmc850 cnc milling machine machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; vmc850s cnc milling machine The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, vmc850s cnc milling machine bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis 1



Packaging＆Shipping
VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis 2

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
VMC850 Small Vertical Machining Center Cnc Milling Machine 3axis 3

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
