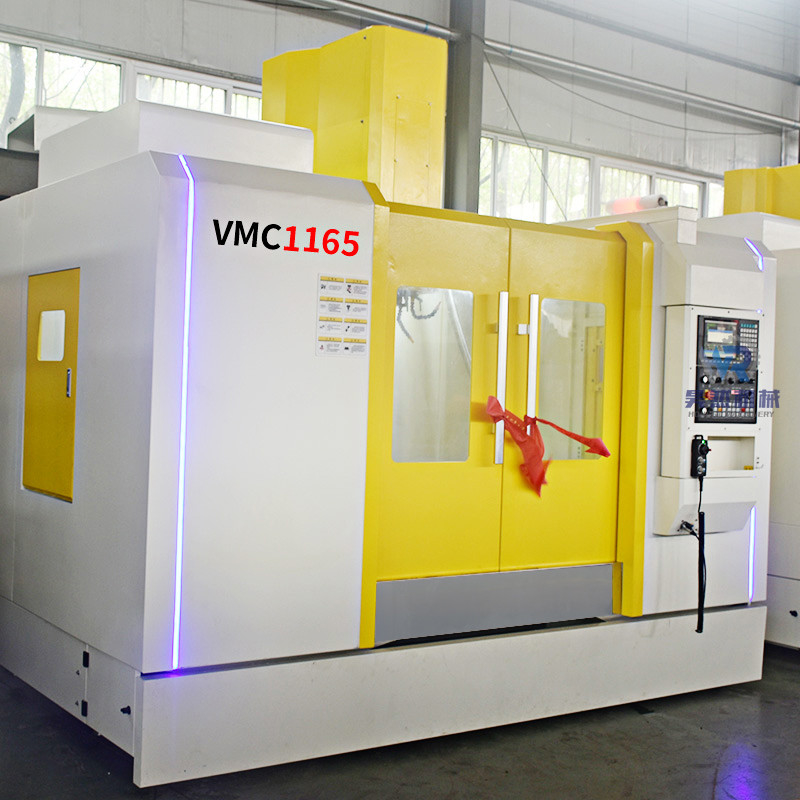

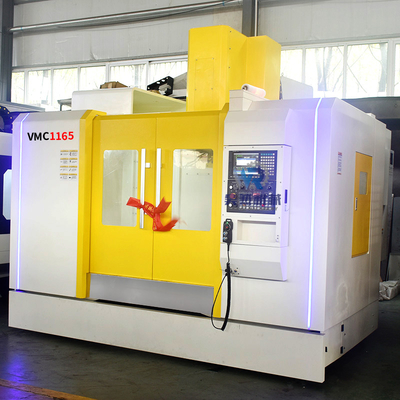

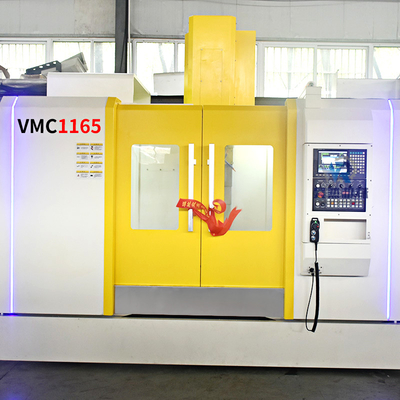

1165 4 Axis Small Vertical Machining Center Ceiso

1165 4 Axis Small Vertical Machining Center Ceiso
1165 4 Axis Small Vertical Machining Center Ceiso 1165 4 Axis Small Vertical Machining Center Ceiso 1165 4 Axis Small Vertical Machining Center Ceiso 1165 4 Axis Small Vertical Machining Center Ceiso

Large Image :  1165 4 Axis Small Vertical Machining Center Ceiso

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: vmc1165
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 19000-40000usd
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

1165 4 Axis Small Vertical Machining Center Ceiso

Description
Model: VMC1165 Table Size (mm): 1200*600
Max. Allowable Load (Kg): 800 X-axis Stroke (mm): 1100
Y-axis Travel (mm): 650 Z-axis Travel (mm): 650
Warranty: 1 Year Condition: New
Highlight:

1165 small vertical machining center

,

four axis small vertical machining center

,

vertical milling machine axis 4



hot selling cnc vertical machine center iron milling machine manufacturer 1165 4 axis cnc vertical machining center

Model
VMC650
VMC840
VMC850
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Model
VMC966 I
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800
Model
VMC1265
VMC1270
VMC1370
VMC1580
Table size (mm)
1200*600
1200*700
1400*700
1700*800
Max. allowable load (Kg)
800
800
800
1500
X-axis stroke (mm)
1200
1200
1300
1500
Y-axis travel (mm)
650
700
700
800
Z-axis travel (mm)
650
700
750
700
T-slot
5-18-100
5-18-130
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
710
710
713
855
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
7000
7000
8000
12000
1165 4 Axis Small Vertical Machining Center Ceiso 0
Vmc1165CNC milling machineIt is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts. Vmc1165CNC milling machine

Product Details
1165 4 Axis Small Vertical Machining Center Ceiso 1

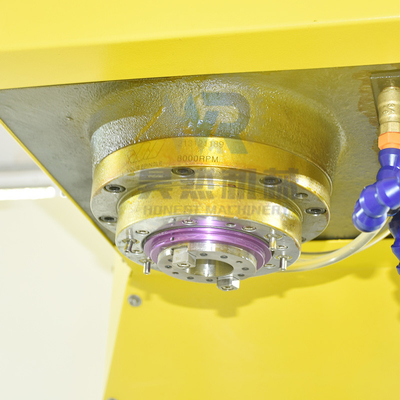

1 .Taiwan HIWIN high precison guideway 2 .Taiwan-made spindle Unit,8000-12000rpm available 3.Reliable Control System:Vmc1165 vertical machining center is suitable for producing metal product and parts in all shapes.

sample
1165 4 Axis Small Vertical Machining Center Ceiso 2

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packaging＆Shipping
1165 4 Axis Small Vertical Machining Center Ceiso 3

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
1165 4 Axis Small Vertical Machining Center Ceiso 4

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
1165 4 Axis Small Vertical Machining Center Ceiso 5

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
