1265 Vmc Vertical Machining Center Medium Size Cnc

1265 Vmc Vertical Machining Center Medium Size Cnc
1265 Vmc Vertical Machining Center Medium Size Cnc 1265 Vmc Vertical Machining Center Medium Size Cnc

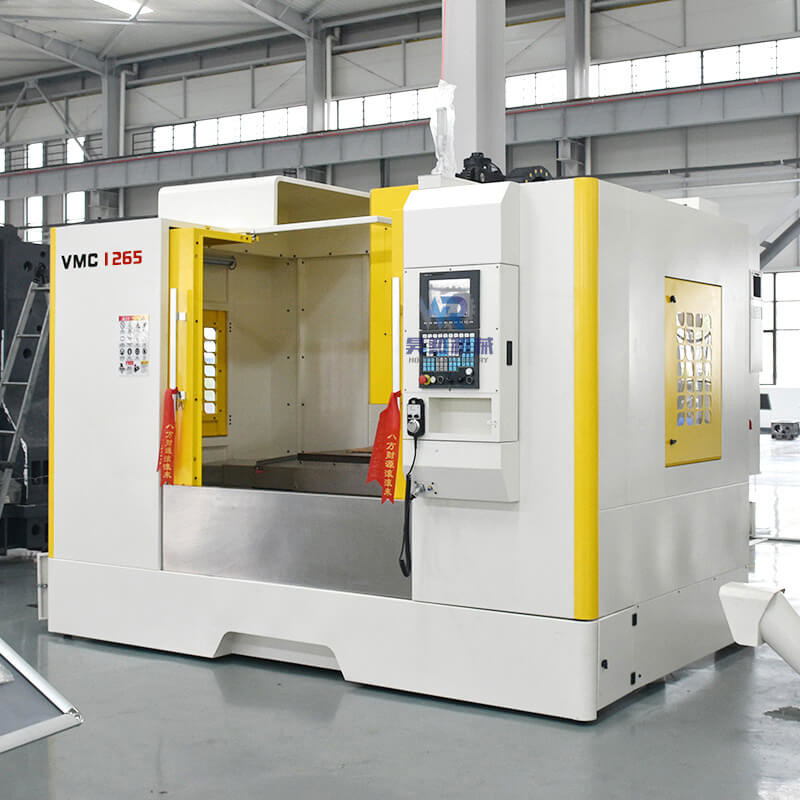

Large Image :  1265 Vmc Vertical Machining Center Medium Size Cnc

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 1265
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 200 per a month
Contact Now

1265 Vmc Vertical Machining Center Medium Size Cnc

Description
Name: Vmc1265 Medium Size Cnc Vertical Machine Center Number Of Axes: 3
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

1265 vmc vertical machining center

,

medium size vmc vertical machining center

,

medium 3 axis vertical machining center





Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
7000
8000
12000
1265 Vmc Vertical Machining Center Medium Size Cnc 0
1265 Vmc Vertical Machining Center Medium Size Cnc 1




Features:
1 .Taiwan HIWIN high precison guideway
2 .Taiwan-made spindle Unit,8000-12000rpm available
3.Reliable Control System:Vmc1165 vertical machining center is suitable for producing metal product and parts in all shapes.
Product Advantages

High-speed/high precision spindle
High rigidity,high precision,big hole diameter spindle design,adopyt the precise slide angle ball bearing support
High rotary spindle provides high-speed cutting for customers,ensure the long-term stabilization of machine tool's precision
The spindle adopts synchronous belt drive of big torsion,no friction and less noise

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

1265 Vmc Vertical Machining Center Medium Size Cnc 2
1265 Vmc Vertical Machining Center Medium Size Cnc 3
Optional accessories
1265 Vmc Vertical Machining Center Medium Size Cnc 4



The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
