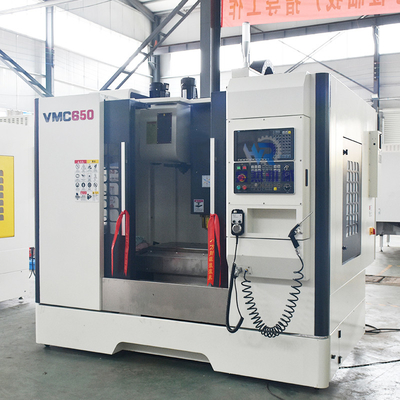

650 Vmc Vertical Machining Center High Speed Three Axis Metal Turning High Precision

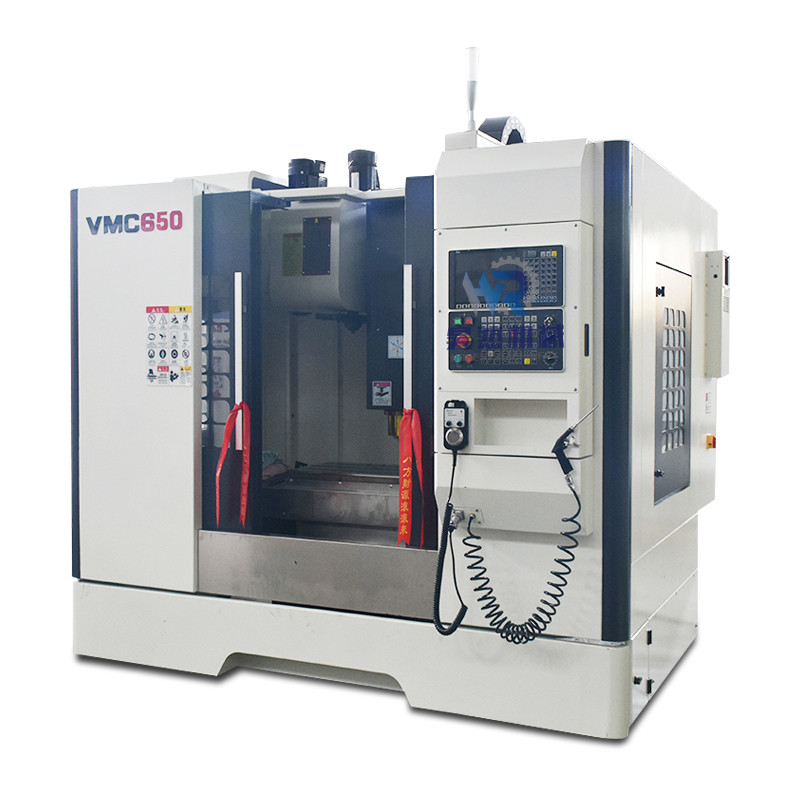

Large Image : 650 Vmc Vertical Machining Center High Speed Three Axis Metal Turning High Precision

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc650

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	19000-40000usd
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

650 Vmc Vertical Machining Center High Speed Three Axis Metal Turning High Precision

Description

Model:	VMC650	Table Size (mm):	1000*400
Max. Allowable Load (Kg):	400	X-axis Stroke (mm):	650
Y-axis Travel (mm):	400	Z-axis Travel (mm):	550
T-slot:	3-18-120	Spindle Taper Hole:	BT40-120
Highlight:	650 vmc vertical machining center , metal turning vmc vertical machining center , vmc650 3 axis vertical machine center

Model	VMC650	VMC840	VMC850	VMC855
Table size (mm)	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	300	500	500
X-axis stroke (mm)	650	800	800	800
Y-axis travel (mm)	400	400	500	550
Z-axis travel (mm)	550	550	500	550
T-slot	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	485	445	552	590
spindle end face to work table (mm)	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500

Model	VMC966	VMC1050	VMC1160	VMC1165
Table size (mm)	1100*550	1200*420	1200*600	1200*600
Max. allowable load (Kg)	600	500	800	800
X-axis stroke (mm)	900	1000	1100	1100
Y-axis travel (mm)	600	500	600	650
Z-axis travel (mm)	600	550	600	650
T-slot	5-18-100	5-18-100	5-18*100	5-18-100
spindle center to Z-axis guide surface (mm)	663	575	650	710
spindle end face to work table (mm)	100-700	100-650	120-720	120-720
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	18/18/18	36/36/24	36/36/36
Machine Weight (Kg)	5600	5500	6500	6800

Model	VMC1270	VMC1370	VMC1580
Table size (mm)	1200*700	1400*700	1700*800
Max. allowable load (Kg)	800	800	1500
X-axis stroke (mm)	1200	1300	1500
Y-axis travel (mm)	700	700	800
Z-axis travel (mm)	700	750	700
T-slot	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	710	713	855
spindle end face to work table (mm)	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	6000
X/Y/Z rapid movement (m/min)	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	7000	8000	12000

Vmc650 CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping.

Product Details

Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock;

Casting customers are assured of machinery and precision testing

sample

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.

Packaging＆Shipping

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

customer visiting

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

FAQ

1. What is the payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you. 2. What is your trade terms? A : FOB, CFR and CIF all acceptable. 3.When is the delivery time? A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly. 4. What is your trade terms? A : FOB, CFR,CIF or others terms are all acceptable. 5. What is your minimum order quantity and warranty? A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine. 6. What is the package of the machines? A: The machines standard will be packed in plywood case.
