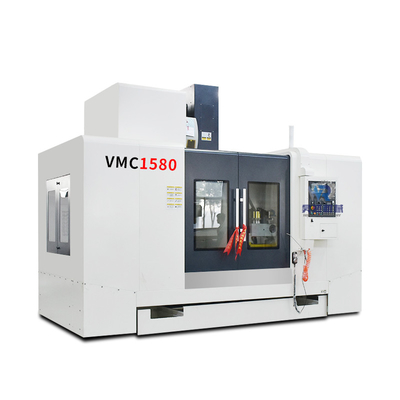

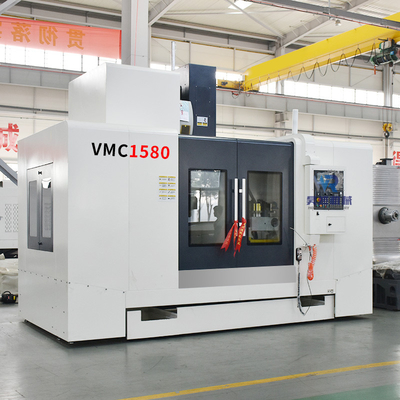

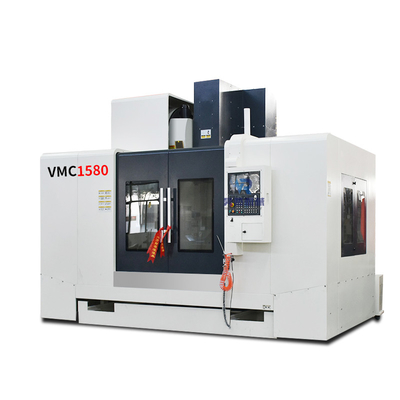

Metal 4 Axis Cnc Milling Machine Vmc1580 Vertical Type

Large Image : Metal 4 Axis Cnc Milling Machine Vmc1580 Vertical Type

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc1580

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	52000-58000usd
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Metal 4 Axis Cnc Milling Machine Vmc1580 Vertical Type

Description

Model:	VMC1580	Table Size (mm):	1700*800
X-axis Stroke (mm):	1500	Y-axis Travel (mm):	800
Z-axis Travel (mm):	700	Warranty:	1 Year
Condition:	New	Type:	Vertical
Highlight:	vmc1580 cnc vertical machine center , metal 4 axis cnc milling machine , Vertical 4 axis cnc milling machine

HOT Sale 4 Axis Cnc Metal Milling Machine Vmc1580 Cnc Vertical Machine Center

Product Description

Model	Vmc640	VMC650	VMC840	VMC850	VMC855
Table size (mm)	800*300	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	400	300	500	500
X-axis stroke (mm)	600	650	800	800	800
Y-axis travel (mm)	400	400	400	500	550
Z-axis travel (mm)	450	550	550	500	550
T-slot	3-18-120	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	460	485	445	552	590
spindle end face to work table (mm)	120-670 mm	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	24/24/18mm	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3000	3800	3200	5300	5500

Model	VMC966	VMC1050	VMC1160	VMC1165
Table size (mm)	1100*550	1200*420	1200*600	1200*600
Max. allowable load (Kg)	600	500	800	800
X-axis stroke (mm)	900	1000	1100	1100
Y-axis travel (mm)	600	500	600	650
Z-axis travel (mm)	600	550	600	650
T-slot	5-18-100	5-18-100	5-18*100	5-18-100
spindle center to Z-axis guide surface (mm)	663	575	650	710
spindle end face to work table (mm)	100-700	100-650	120-720	120-720
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	18/18/18	36/36/24	36/36/36
Machine Weight (Kg)	5600	5500	6500	6800

Model	VMC1265	VMC1270	VMC1370	VMC1580	Vmc1690
Table size (mm)	1200*600	1200*700	1400*700	1700*800	1600*800
Max. allowable load (Kg)	800	800	800	1500	1500
X-axis stroke (mm)	1200	1200	1300	1500	1600
Y-axis travel (mm)	650	700	700	800	900
Z-axis travel (mm)	650	700	750	700	700
T-slot	5-18-100	5-18-130	5-18-130	5-22-135	7-22-110
spindle center to Z-axis guide surface (mm)	710	710	713	855	936
spindle end face to work table (mm)	120-770	120-770	120-870	160-860	150-850
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT50-155	BT50-190
Spindle speed (r/min)	8000	8000	8000	6000	10000
X/Y/Z rapid movement (m/min)	36/36/36	36/36/36	24/24/24	24/24/18	15/15/12
Machine Weight (Kg)	7000	7000	8000	12000	12000

Vmc1580 vertical CNC machining center is suitable for producing metal product and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and so on.

Detailed description

Taiwan spindle BT40/BT50 Taiwan 24T arm type auto tool changer Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws. FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional. Taiwan 4th or 5th axes rotary table is optional. Tools and workpiece measuring instrument are optional.

Application

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.

Packing & Delivery

1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

Company Profile

Shandong HR machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.

Customer visiting

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

FAQ

1.What CNC system do you use? A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice. 2. Payment Terms A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss. 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4.How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 5.Where is our factory located? How can I visit there? A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us. 6.What's the MOQ? A: 1 set . 7.How long is the machine warranty? A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
