Steel CNC Vertical Machining Center VMC850 Metal CNC Milling Machine

Large Image : Steel CNC Vertical Machining Center VMC850 Metal CNC Milling Machine

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc850

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd 19000-40000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

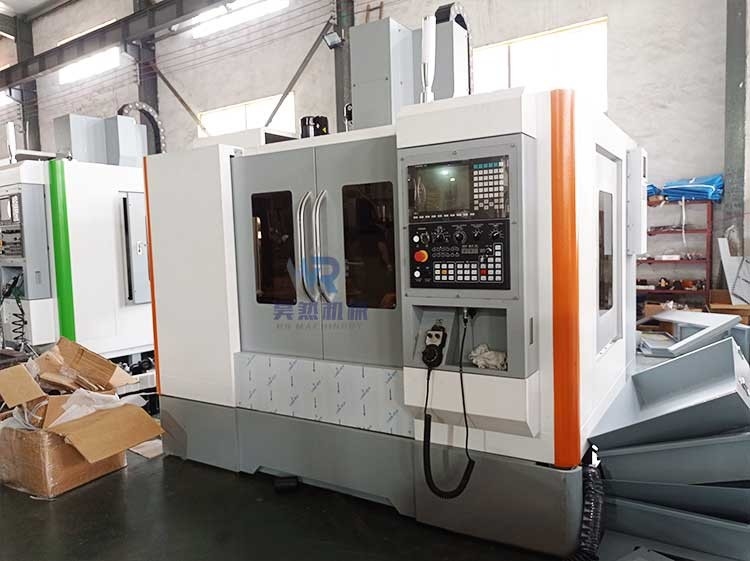

Steel CNC Vertical Machining Center VMC850 Metal CNC Milling Machine

Description

Warranty:	2 Years	Weight:	4800kg
Dimension(lwh):	320028003200mm	Condition:	New
Type:	Vertical	Voltage:	380V 50HZ
Power(w):	7.5/11 KW	Spindle Taper:	BT40
Highlight:	380V CNC Vertical Machining Center , VMC850 Metal CNC Milling Machine , Steel Vmc Vertical Machining Center

Factory Direct Sale CNC Vertical Machining Center vmc850 cnc milling machine for steel

Product Introduction

Cnc milling machine can process parts that cannot be processed by ordinary machine tools or are difficult to process, such as complex curve parts described by mathematical models and three-dimensional space curved surface parts;

Model	VMC650	VMC840	VMC850	VMC855
Table size (mm)	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	300	500	500
X-axis stroke (mm)	650	800	800	800
Y-axis travel (mm)	400	400	500	550
Z-axis travel (mm)	550	550	500	550
T-slot	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	485	445	552	590
spindle end face to work table (mm)	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500

Model	VMC966 I	VMC1050	VMC1160	VMC1165
Table size (mm)	1100*550	1200*420	1200*600	1200*600
Max. allowable load (Kg)	600	500	800	800
X-axis stroke (mm)	900	1000	1100	1100
Y-axis travel (mm)	600	500	600	650
Z-axis travel (mm)	600	550	600	650
T-slot	5-18-100	5-18-100	5-18*100	5-18-100
spindle center to Z-axis guide surface (mm)	663	575	650	710
spindle end face to work table (mm)	100-700	100-650	120-720	120-720
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	18/18/18	36/36/24	36/36/36
Machine Weight (Kg)	5600	5500	6500	6800

Model	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200*600	1400*700	1700*800
Max. allowable load (Kg)	800	800	1500
X-axis stroke (mm)	1200	1300	1500
Y-axis travel (mm)	650	700	800
Z-axis travel (mm)	650	750	700
T-slot	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	710	713	855
spindle end face to work table (mm)	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	6000
X/Y/Z rapid movement (m/min)	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	7000	8000	12000

Steel CNC Vertical Machining Center VMC850 Metal CNC Milling Machine 0

Product Details

Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System:Vmc850 verticalmachining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT50 tool handle is optional

Packaging＆Shipping

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Company information

Shandong HR Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of CNC Milling Machine ,Machining Center ,Grinding Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
