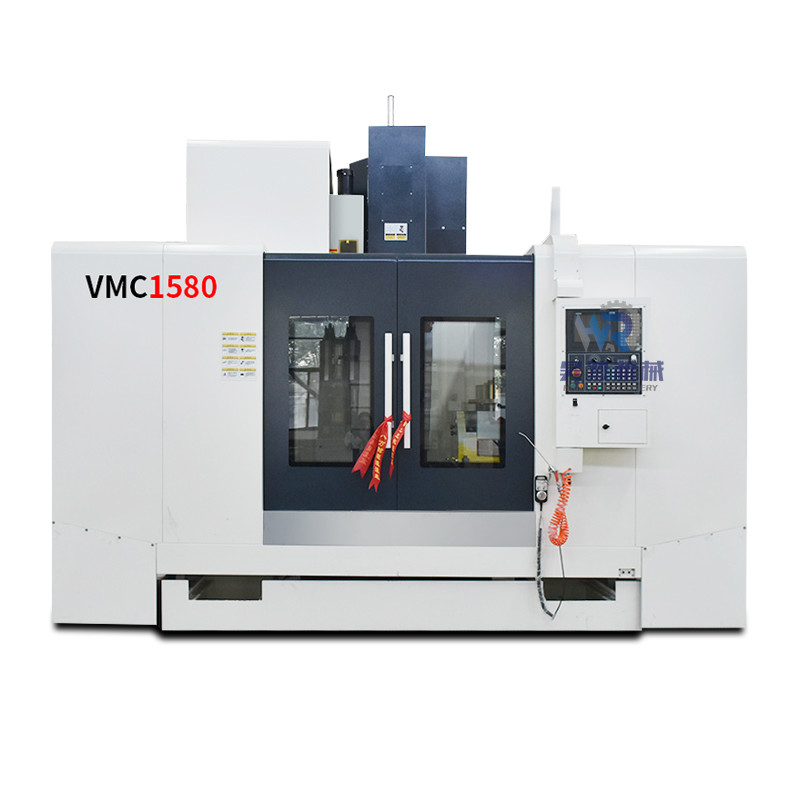

Vmc1580 CNC Vertical Machining Center Vmc Milling Machine

Vmc1580 CNC Vertical Machining Center Vmc Milling Machine
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine Vmc1580 CNC Vertical Machining Center Vmc Milling Machine Vmc1580 CNC Vertical Machining Center Vmc Milling Machine Vmc1580 CNC Vertical Machining Center Vmc Milling Machine Vmc1580 CNC Vertical Machining Center Vmc Milling Machine

Large Image :  Vmc1580 CNC Vertical Machining Center Vmc Milling Machine

Product Details:
Place of Origin: Shandong,China
Brand Name: HR
Certification: CE
Model Number: VMC1580
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: $61000 1set
Packaging Details: WOODEN CASE
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40sets months
Contact Now

Vmc1580 CNC Vertical Machining Center Vmc Milling Machine

Description
Warranty: 1 Year,12 Months Dimension(l*w*h): 2180X2052X2600MM
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V 50HZ
Power(w): 7.5/11 KW Product Name: Precision Overseas Service 3 Axis Cnc Vertical Machining Center Price
Control System: GSK Fanuc Guideway: Y Linear Guideways
Inner Structure: Very Steady Worktable Size: 1700*800 Mm
Highlight:

380V 50HZ Vertical CNC Machine

,

Vmc1580 Vmc Milling Machine

,

Precision CNC Vertical Machining Center

VMC1580 Vertical Machining Center
Product Description
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 0

  •

  • Product performance report
1. The body and main components are made of high-strength cast iron, which has a stable structure and ensures the stability of the
machine tool for long-term use.
2. The bottom column of A-type bridge structure, combined with the large box base, greatly reduces the vibration of the machine tool during heavy cutting
3. Pre-tightened precision ball screw drive
4. High-speed, high-precision,high-rigidity spindle unit
5. Oil-water separation design
6. Intermittent automatic lubrication
7. Automatic tool change system
Model
VMC1265
VMC1270
VMC1370
VMC1580
Table size (mm)
1200*600
1200*700
1400*700
1700*800
Max. allowable load (Kg)
800
800
800
1500
X-axis stroke (mm)
1200
1200
1300
1500
Y-axis travel (mm)
650
700
700
800
Z-axis travel (mm)
650
700
750
700
T-slot
5-18-100
5-18-130
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
710
710
713
855
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
7000
7000
8000
12000

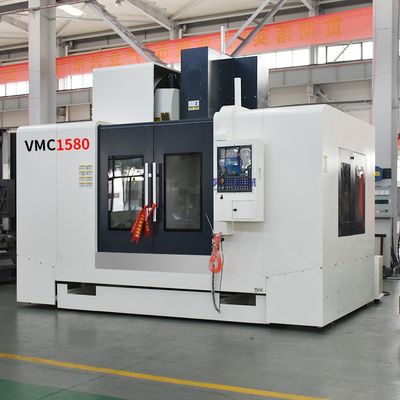

Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 1

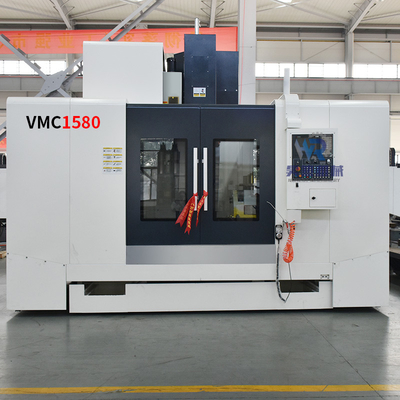

Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 2

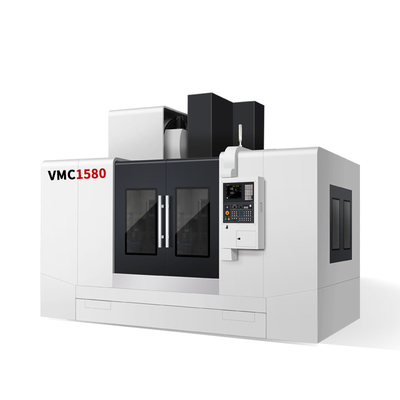

Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 3
Details Images
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 4
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 5
Related Products
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 6
Certifications
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 7
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 8
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series,milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 9
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 10
Our services
1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
2. Received your phone or mail,we will Analyze the problem immediately.
3.Supply professional solution, after analyze the problem, we give you our best solution.
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
Customer Visiting
We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future.
Vmc1580 CNC Vertical Machining Center Vmc Milling Machine 11
FAQ
Q1: How to buy the right product for you ?
A1: You can pass on your requirements to me, and we will reply to you in time.

Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will timely deal with the free new parts for you to replace the next order.

Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc

Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
