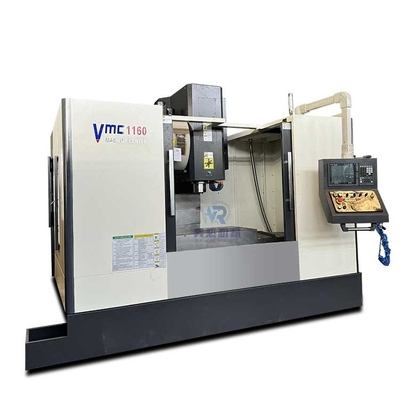

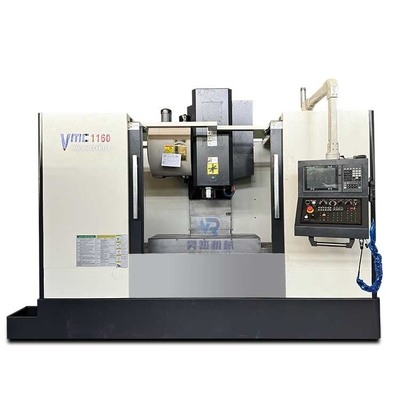

VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin

VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin
VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin
VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin

Large Image :  VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: vmc1160
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd 19000-40000
Packaging Details: standard export package(plywood case)
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month
Contact Now

VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin

Description
Warranty: 2 Years Weight: 8000kg
Condition: New Power(w): 11kw
Spindle: Taiwan 10000rpm Spindle Spindle Taper: BT40
Highlight:

Single Spindle Vertical CNC Machining Center

,

BT40 Vertical CNC Machining Center

,

High Accuracy Vertical CNC Machining Center

VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System cnc vertical milling machine
Product Description
CNC milling machines generally do not need to use special process equipment such as special fixtures. When replacing workpieces, they only need to call the processing program, clamping tools and adjusting tool data stored in the CNC device, which greatly shortens the production cycle. Secondly, the CNC milling machine has the functions of milling machine, boring machine and drilling machine, Vertical machining center which makes the process highly concentrated and greatly improves the production efficiency. In addition, the spindle speed and feed speed of NC milling machine are stepless, so it is conducive to select the best cutting parameters;VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin 0
Model
Vmc640
VMC650
VMC840
VMC850
VMC855
Table size (mm)
800*300
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
400
300
500
500
X-axis stroke (mm)
600
650
800
800
800
Y-axis travel (mm)
400
400
400
500
550
Z-axis travel (mm)
450
550
550
500
550
T-slot
3-18-120
3-18-120
3-18-140
5-18-108
5-18-108
spindle center to Z-axis guide surface (mm)
460
485
445
552
590
spindle end face to work table (mm)
120-670 mm
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-120
BT40-140
BT40-140
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
24/24/18mm
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3000
3800
3200
5300
5300
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800

Model
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200*600
1200*700
1400*700
1700*800
1600*800
Max. allowable load (Kg)
800
800
800
1500
1500
X-axis stroke (mm)
1200
1200
1300
1500
1600
Y-axis travel (mm)
650
700
700
800
900
Z-axis travel (mm)
650
700
750
700
700
T-slot
5-18-100
5-18-130
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
710
710
713
855
936
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
7000
7000
8000
12000
12000



Detailed description
VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin 1

Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT50 tool handle is optional. machine tool is equipped with automatic chip remover. There are chip removal return tanks on both sides of the bed to fully ensure the internal structural stiffness of the bed, and a large flow chip flushing outlet is reserved, which is convenient and efficient for chip removal. Equipped with precision ball screw and servo motor drive, the connection between the screw and the motor adopts special coupling technology, with small moment of inertia, no transmission gap, high transmission stiffness and high speed, and the cutting feed speed can reach 20m / min.

Application
VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin 2

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packing & Delivery
VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin 3
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin 4

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Company Profile
VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin 5
Shandong HR machinery Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Customer visiting
VMC1160 High-Accuracy Vertical CNC Machining Center Single Spindle BT40 Fanuc Control System Cnc Vertical Milling Machin 6

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1.What CNC system do you use? A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice. 2. Payment Terms A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss. 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4.How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 5.Where is our factory located? How can I visit there? A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us. 6.What's the MOQ? A: 1 set . 7.How long is the machine warranty? A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
