Technical Support CNC VMC1160 Good Quality Vertical Machining Center

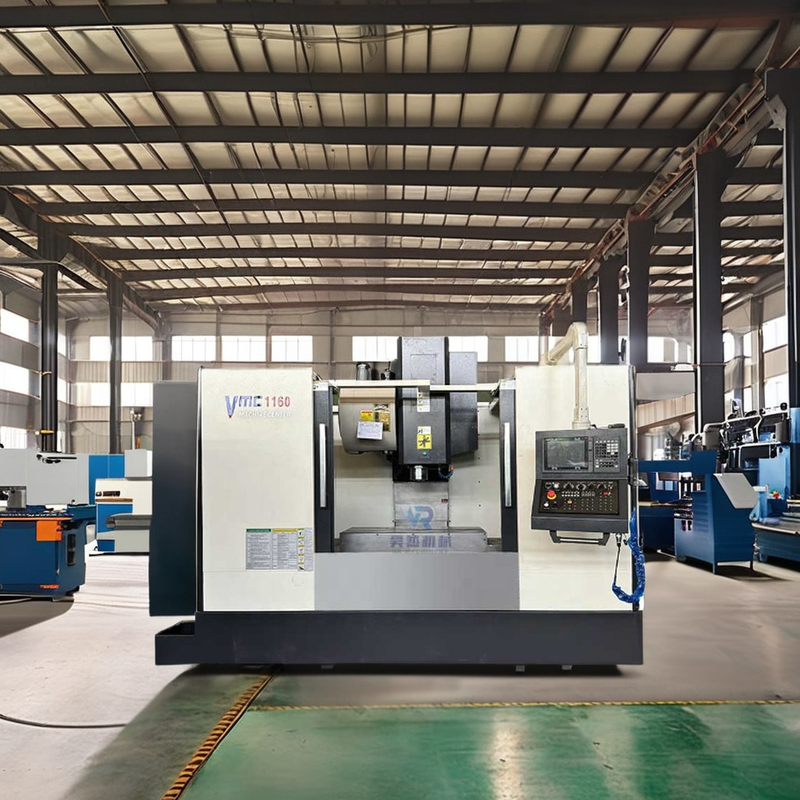

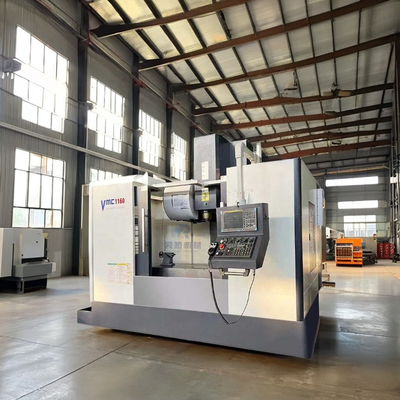

Large Image : Technical Support CNC VMC1160 Good Quality Vertical Machining Center

Product Details:

Place of Origin:	CHINA
Brand Name:	HR
Certification:	CE
Model Number:	VMC1160

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	30000usd
Packaging Details:	Standard packaging
Delivery Time:	30 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets 1 month

Contact Now

Technical Support CNC VMC1160 Good Quality Vertical Machining Center

Description

Tool Capacity:	24	Travel Distance (X/Y/Z):	1100mm/600mm/600mm
Number Of Axes:	3	Structure:	VERTICAL TYPE
Voltage:	380V 50HZ	Spindle Taper Hole:	BT40-150
Warranty:	1 Year	Oem:	CUSTOMIZABLE
Weight:	6000kg	Power Requirement:	20kVA
Control Panel:	Ergonomic CNC Panel & MPG	Air Conditioned:	Electrical Cabinet
Product Type:	Machining Center	Condition:	New
Highlight:	Technical Support Vertical Machining Center , CNC VMC1160 Vertical Machining Center , Good Quality Vertical Machining Center

Product Description

Model	Vmc640	VMC650	VMC840	VMC850	VMC855
Table size (mm)	800*300	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	400	300	500	500
X-axis stroke (mm)	600	650	800	800	800
Y-axis travel (mm)	400	400	400	500	550
Z-axis travel (mm)	450	550	550	500	550
T-slot	3-18-120	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	460	485	445	552	590
spindle end face to work table (mm)	120-670 mm	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	24/24/18mm	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3000	3800	3200	5300	5500

Model	VMC966	VMC1050	VMC1160	VMC1165
Table size (mm)	1100*550	1200*420	1200*600	1200*600
Max. allowable load (Kg)	600	500	800	800
X-axis stroke (mm)	900	1000	1100	1100
Y-axis travel (mm)	600	500	600	650
Z-axis travel (mm)	600	550	600	650
T-slot	5-18-100	5-18-100	5-18*100	5-18-100
spindle center to Z-axis guide surface (mm)	663	575	650	710
spindle end face to work table (mm)	100-700	100-650	120-720	120-720
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	18/18/18	36/36/24	36/36/36
Machine Weight (Kg)	5600	5500	6500	6800

Model	VMC1265	VMC1270	VMC1370	VMC1580	Vmc1690
Table size (mm)	1200*600	1200*700	1400*700	1700*800	1600*800
Max. allowable load (Kg)	800	800	800	1500	1500
X-axis stroke (mm)	1200	1200	1300	1500	1600
Y-axis travel (mm)	650	700	700	800	900
Z-axis travel (mm)	650	700	750	700	700
T-slot	5-18-100	5-18-130	5-18-130	5-22-135	7-22-110
spindle center to Z-axis guide surface (mm)	710	710	713	855	936
spindle end face to work table (mm)	120-770	120-770	120-870	160-860	150-850
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT50-155	BT50-190
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	36/36/36	36/36/36	24/24/24	24/24/18	15/15/12
Machine Weight (Kg)	7000	7000	8000	12000	12000

CNC vertical machining cente is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining center

Detailed description

Taiwan spindle BT40/BT50 Taiwan 24T arm type auto tool changer Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws. FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional. Taiwan 4th or 5th axes rotary table is optional. Tools and workpiece measuring instrument are optional.

Application

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
