VMC1160 3/4/5 Axis CNC Vertical Machining Center Machine High precision

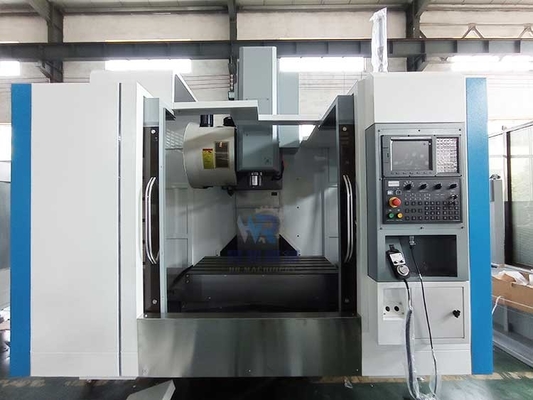

Large Image : VMC1160 3/4/5 Axis CNC Vertical Machining Center Machine High precision

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE
Model Number:	VMC1160

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	26000 USD/SET
Packaging Details:	Standard material packagingProduct Description The vmc1160 Cheap 3 axis cnc milling machine with CE certificate feed shaft is controlled by X, Y and Z three dimensions, and spindle is driven by frequency power. It could realize one-time clamping upon vari
Delivery Time:	30 working days
Payment Terms:	T/T, L/C
Supply Ability:	100sets/month

Contact Now

VMC1160 3/4/5 Axis CNC Vertical Machining Center Machine High precision

Description

Warranty:	1 Year	Weight:	8000kg
Dimension(lwh):	320028003200mm	Condition:	New
Type:	Vertical	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Overseas Service Center Available,Online Support
Voltage:	380V 50HZ,Customer's Requirement	Power(w):	11/15kw
Machine Type:	China Manufacturer Machining Center Cnc Vertical Process Center,Hard Rail Vertical	Spindle:	Taiwan 10000rpm Spindle,Hight Speed And Precision
Spindle Taper:	BT40	Product Name:	Precision Overseas Service 3 Axis Cnc Vertical Machining Center Price
Control System:	GSK FANUC Siemens Mitsubishi Etc.	Guideway:	Linear Guideways
Inner Structure:	Very Steady	Worktable Size:	1200*600 Mm
Highlight:	5 Axis CNC Vertical Machining Center , 3 Axis CNC Vertical Machining Center , VMC1160 CNC Vertical Machining Center

Product Description

Items	Details	Unit	VMC1160
Table	Size	mm	1200×600
	Travel of 3 axis(X/Y/Z)	mm	1100/600/600
	Max, table load	kg	1000
T-slot	Size	mm	5-18×120
Spindle	Spindle taper		BT40
	Distance from Spindle center to Colum guide	mm	650
	Distance of spindle head to table	mm	130-780
	Max speed	rpm	8000
	Motor power	KW	11/15
Accuracy	Positioning accuracy(X/Y/Z)	mm	±0.01/±0.008/±0.008
Accuracy	Repeatability(X/Y/Z)	mm	±0.005
Axis motor	Power of X/Y/Z	Kw	2.5/2.5/2.5
Axis motor	Torque of X/Z	Nm	16/24
Feeding speed	Rapid feed of X/Y/Z	m/min	36/36/24(linear guide way)
	Cutting feed of X/Y/Z	m/min	10
	Weight	Kg	7800
	Dimension	mm	330028002700
	Power	V	3 phase 380V,

The vmc1160 Cheap 3 axis cnc milling machine with CE certificate feed shaft is controlled by X, Y and Z three dimensions, and spindle is driven by frequency power. It could realize one-time clamping upon various plates, boards, shells, cam, molds and etc. complex components, it can also complete drilling, milling, boring, expanding, reaming, tapping and etc. multiple processing; this machine is applied to produce various and middle & large batch of components, especially for machining of complex and
high-precision components.
