M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder

I'm Online Chat Now

M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder

M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder
M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder

Large Image :  M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder

Product Details:
Place of Origin: CHINA
Brand Name: HR
Certification: CE
Model Number: M7163
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 19700 USD/SET
Packaging Details: Standard material configuration
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 100 sets/month

M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder

Description
Warranty: 1 Year Weight: 5.5ton
Dimension(l*w*h): 3800× 2100×2500mm Condition: New
Type: Other After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 380V 50HZ,Customer's Requirement Power(w): 7.5/11 KW
Machine Type: China Manufacturer Machining Center Cnc Vertical Process Center Inner Structure: Very Steady
Wok Size(W*L): 630*1250
Highlight:

Hydraulic Surface Grinding Machine

,

Fully Automatic Surface Grinding Machine

,

High Precision Surface Grinding Machine

Product Description
Suitable for all kinds of processing machinery, automotive parts, fixtures, magnetic steel, and mold parts processing industries. The machine tool can grind steel, iron, ceramics and non-ferrous metal parts.

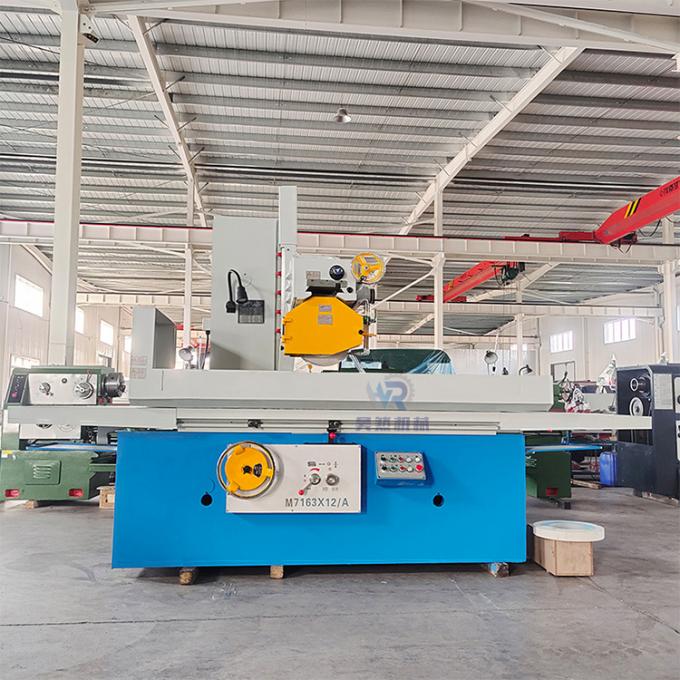

M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder 0

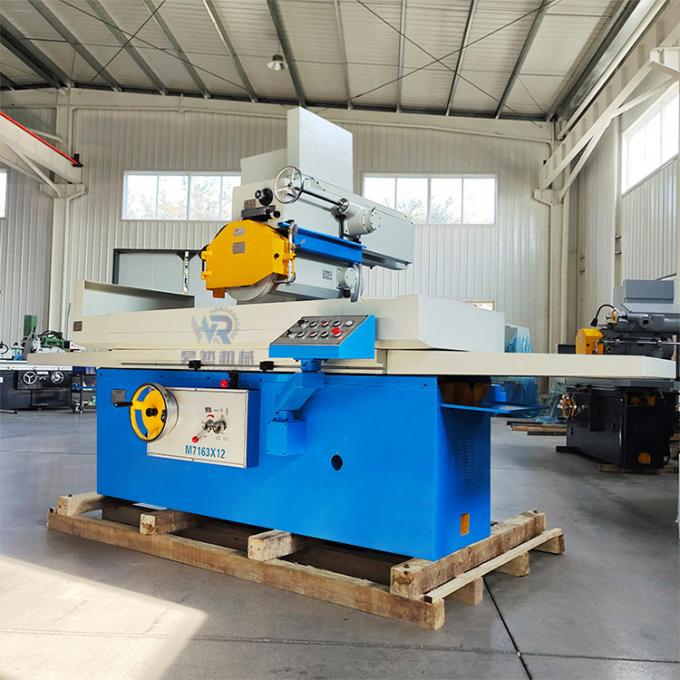

M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder 1
The machine tool screw is made of special alloy steel through strict processing and heat treatment process. The grinding head can be raised and lowered vertically and quickly to improve production efficiency. The grinding head is driven by a hydraulic motor for lateral movement, and can also be moved manually. The lifting mechanism and the triangular bracket adopt an eccentric design, which is easy to adjust and greatly extends the service life of the machine tool.
Specification

Main technical parameters
Unit
M7163×1250
Worktable
Workbench(wide×length)
mm
630×1250
Maximum grinding size(wide×length)
mm
630×1250
Vertical movement of workbench (hydraulic)
mm
200-1350
Workbench speed(stepless speed regulation)
m/min
5-25
Number of T-shaped slots on the workbench

3
width
mm
18
Workbench load capacity (including electronic suction cups)
kg
980
Electronic suction cup size(wide×length)
mm
630×1250
Grinding head
Maximum lateral movement of grinding head
mm
630
Horizontal feed of grinding head(stepless speed regulation)
continuity
Intermittent

mm/min
mm/次

0.8-3
5-25
Minimum scale of vertical handwheel
mm
0.01
Vertical feed rate of grinding head per rotation of handwheel
mm
0.5
Grinding wheel size (outer diameter x width x inner diameter)
mm
Φ400×50×Φ203
Motor power
Total capacity of electrical equipment
KVA
15
Grinding head motor
power
speed

KW
r/min

7.5
1440
work
accuracy
Parallelism of the machined surface to the base surface
mm
0.01/300
Surface roughness of workpiece
μm
Ra0.63
complete machine
parameter
Machine tool dimensions (approximately) (L x W x H)
mm
3800× 2100×2500
Net weight (approximately)
Kg
5500
Machine Details

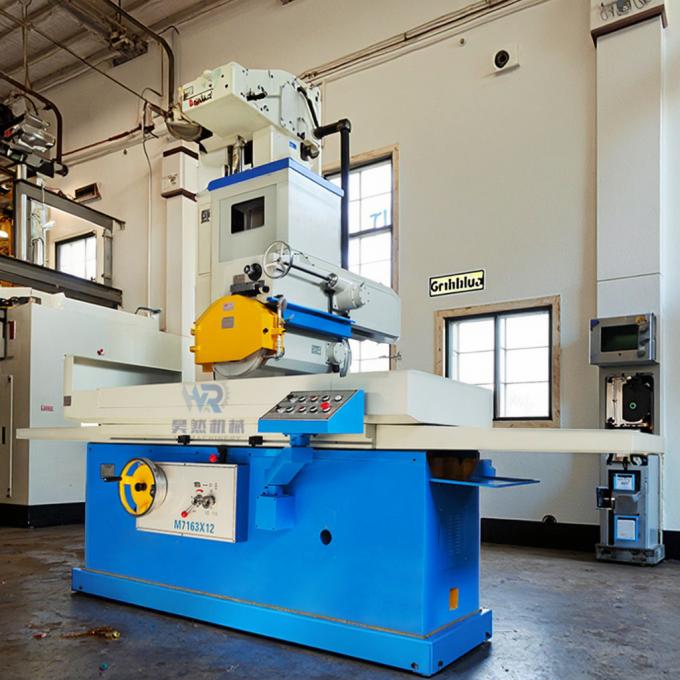

M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder 2
M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder 3
M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder 4
M7163 Surface Grinding Machine High Precision Fully Automatic Hydraulic Grinder 5
