VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision

Large Image : VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision

Product Details:

Place of Origin:	CHINA
Brand Name:	HR
Certification:	CE
Model Number:	VMC640

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	19500USD/SET
Packaging Details:	Plywood packaging
Delivery Time:	30 working days
Payment Terms:	L/C, T/T
Supply Ability:	100sets/month

Contact Now

VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision

Description

Warranty:	1 Year	Weight:	3000kg
Dimension(lwh):	270021502600	Condition:	New
Type:	Vertical	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support
Voltage:	380V 50HZ,Customer's Requirement	Power(w):	5.5kW
Machine Type:	China Manufacturer Machining Center Cnc Vertical Process Center	Spindle:	Taiwan 10000rpm Spindle
Spindle Taper:	BT40	Product Name:	Small Metal Mold Processing CNC Vertical Machining Center VMC640L
Guideway:	X,Y Linear Guideways	Color:	Custom-made
Highlight:	10000rpm spindle CNC Vertical Machining Center , 16 ATC tool magazine VMC640 CNC Milling Machine , ±0.005mm precision Vertical Machining Center

Product Introduction

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection

mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.

Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.

Specifications			VMC640
Work table	Area of work table		800×300mm
	Load capacity		400 kg
spindle	Motor power		5.5kw
	Distance between the spindle end and the work surface		120-670 mm
	Spindle center to column guide rail		460 mm
	Speed		12000rpm
	Taper of spindle		BT40
Distance of travel	X-Axis		600 mm
	Y-Axis		400mm
	Z-Axis		450mm
Feed	X/Y/Z-axis fast moving		24/24/18mm(linear guide way)
	fast cutting speed mm /min		1-10000 mm/min
precision	Positional accuracy		±0.01 mm
	Repeat positional accuracy		±0.005 mm
Tools	Tool changer type		16 ATC tool magazine
	Max. tool length		300mm
	Max. Tool diameter		Φ80(adjacent tool)/φ150(not adjacent tool)
	Max.tool weight		8kg
	Tool changing time(tool-to-tool)		7sec
Data	Air pressure		0.6 Mpa
	Power Supply	Voltage(V)/frequency (Hz)	220v three-phase voltage
		Total capacity(KVA)	10
	Weight		3000 kg
	Diamention		2280×2150×2250mm

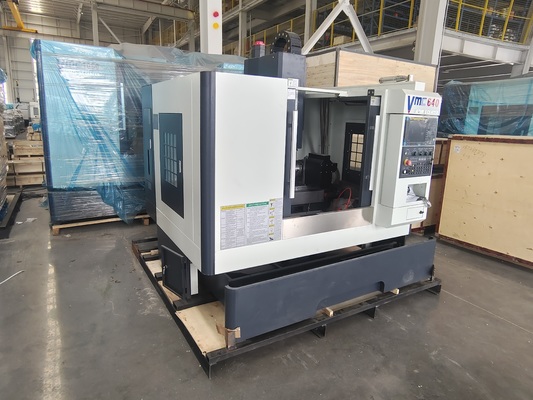

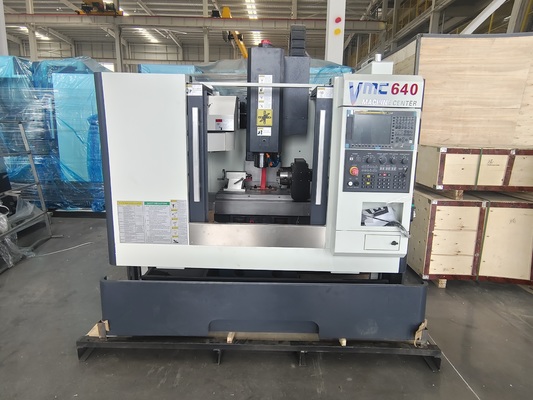

Product images

VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision 0
