3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size

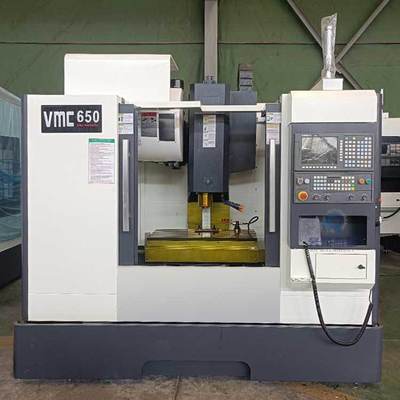

Large Image : 3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc650

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd 19000-40000
Packaging Details:	standard export package(plywood case)
Delivery Time:	30days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

3 Axis CNC Vertical Machining Center with 24 Tool Magazine and 5-6 Seconds Tool Change Time for 800x300 Table Size

Description

Warranty:	1 Year	Weight:	3100KG
Condition:	New	Type:	Vertical
Voltage:	380V 50HZ	Power(w):	7.5kW
Spindle:	Taiwan 10000rpm Spindle	Spindle Taper:	BT40
Highlight:	24 Tool Magazine CNC Vertical Machining Center , 5-6 Seconds Tool Change Time Vertical Milling Machine , 800x300 Table Size VMC650

3 AXIS cnc vertical machining center vmc650 CNC vertical milling machine

Product Description

Model	Vmc640	VMC650	VMC840	VMC850	VMC855
Table size (mm)	800*300	1000*400	1000*400	1000*500	1000*550
Max. allowable load (Kg)	400	400	300	500	500
X-axis stroke (mm)	600	650	800	800	800
Y-axis travel (mm)	400	400	400	500	550
Z-axis travel (mm)	450	550	550	500	550
T-slot	3-18-120	3-18-120	3-18-140	5-18-108	5-18-90
spindle center to Z-axis guide surface (mm)	460	485	445	552	590
spindle end face to work table (mm)	120-670 mm	100-650	100-650	110-610	120-670
Spindle taper hole	BT40-120	BT40-120	BT40-120	BT40-140	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	24/24/18mm	48/48/48	30/30/18	48/48/48	48/48/48
Machine Weight (Kg)	3000	3800	3200	5300	5500

Model	VMC966	VMC1050	VMC1160	VMC1165
Table size (mm)	1100*550	1200*420	1200*600	1200*600
Max. allowable load (Kg)	600	500	800	800
X-axis stroke (mm)	900	1000	1100	1100
Y-axis travel (mm)	600	500	600	650
Z-axis travel (mm)	600	550	600	650
T-slot	5-18-100	5-18-100	5-18*100	5-18-100
spindle center to Z-axis guide surface (mm)	663	575	650	710
spindle end face to work table (mm)	100-700	100-650	120-720	120-720
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	18/18/18	36/36/24	36/36/36
Machine Weight (Kg)	5600	5500	6500	6800

Model	VMC1265	VMC1270	VMC1370	VMC1580	Vmc1690
Table size (mm)	1200*600	1200*700	1400*700	1700*800	1600*800
Max. allowable load (Kg)	800	800	800	1500	1500
X-axis stroke (mm)	1200	1200	1300	1500	1600
Y-axis travel (mm)	650	700	700	800	900
Z-axis travel (mm)	650	700	750	700	700
T-slot	5-18-100	5-18-130	5-18-130	5-22-135	7-22-110
spindle center to Z-axis guide surface (mm)	710	710	713	855	936
spindle end face to work table (mm)	120-770	120-770	120-870	160-860	150-850
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT50-155	BT50-190
Spindle speed (r/min)	8000	8000	8000	6000	10000
X/Y/Z rapid movement (m/min)	36/36/36	36/36/36	24/24/24	24/24/18	15/15/12
Machine Weight (Kg)	7000	7000	8000	12000	12000

CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining center

Detailed description

MACHINE CONSTRUCT High strength high quality HT300 cast iron,

Taiwan spindle-10000 rpm

1.Taiwan OKADA arm 24 tool magazine . 2. tool change time only 5-6 seconds.

Controller system The standard is GSK controller system, the optional is fanuc Siemen,or Syntec controller system.

SCREW 1 Taiwan brand lead screw, 2. lead screw bearing using SKF or NACHI bearing,

SCHNEIDER ELECTRICAL COMPONENTS with Schneider safety electrical components

Packing & Delivery

1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
