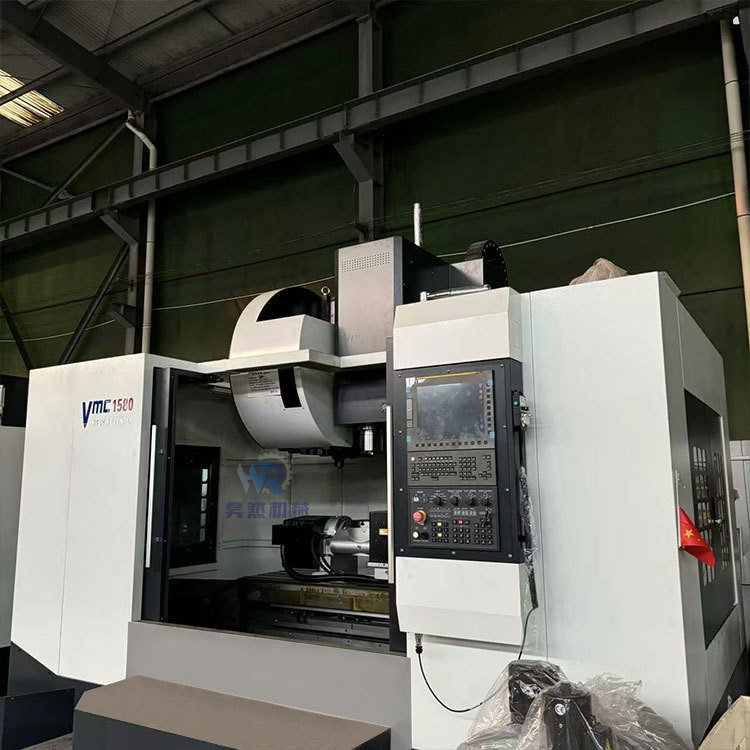

Vmc1580 CNC Milling Machines Machining Centers

Large Image : Vmc1580 CNC Milling Machines Machining Centers

Product Details:

Place of Origin:	CHINA
Brand Name:	HR
Certification:	CE
Model Number:	VMC1580

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	45000-55000USD
Packaging Details:	40 HQ
Delivery Time:	30 working days
Payment Terms:	L/C, T/T
Supply Ability:	50 SETS/MONTH

Contact Now

Vmc1580 CNC Milling Machines Machining Centers

Description

Warranty:	1 Year	Weight:	13000kg
Condition:	New	Type:	Vertical
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Voltage:	380V 50HZ
Power(w):	18.5 KW	Machine Type:	China Manufacturer Machining Center Cnc Vertical Process Center
Spindle:	Hight Speed And Precision	Spindle Taper:	B50
Product Name:	Precision Overseas Service 3 Axis Cnc Vertical Machining Center Price	Spindle Speed:	6000 Rpm
Guideway:	Linear Guideways	Color:	Custom-made
Highlight:	VMC1580 CNC vertical machining center , CNC milling machine with high precision , industrial CNC machining center with warranty

Vmc1580 vertical machining centre Vmc1580 vertical machining centre

Vmc1580 CNC Milling Machines Machining Centers 0

Main configuration:

				Specification	unit
				VMC1580
Table	Size			1700*800	mm
	Max. Table Load			1500	kg
	T-slot No. and size			5-22x150	mm
processing Scope	Table Travel (X)			1500	mm
	Table Travel (Y)			800	mm
	Table Travel (Z)			700	mm
	Spindle end face to Work surface distance		Max.	840	mm
			Min.	170	mm
	Distance from Spindle center to Z Axes rail surface			810	mm
Spindle	Spindle Taper			SK50
	Range of Spindle Speed			6000	r/min
	Spindle Motor Power			18.5	kW
Move	Fast-moving	X Axes		24	m/min
		Y Axes		24
		Z Axes		24
	Moving speed			1-10000	mm/min

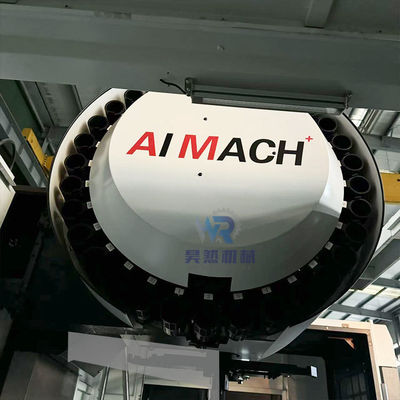

Tool Magazine	Tool Magazine Capacity			24
	Min. Time of Tool Change			2.5	s
Positioning Accuracy	Accuracy testing standard			JISB6336-4:2000/ GB/T18400.4-2010
	X/Y/Z Axes			0.008	mm
X/Y/Z Axe Repeatability				0.005	mm
Dimension(LWH)				430032003100	mm
Weight				13000	kg
				Specification	unit

Product application

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection

mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.

Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
