Mechanical M4 Turret Head Milling Machine Vertical Universal Tool For Metal Cutting

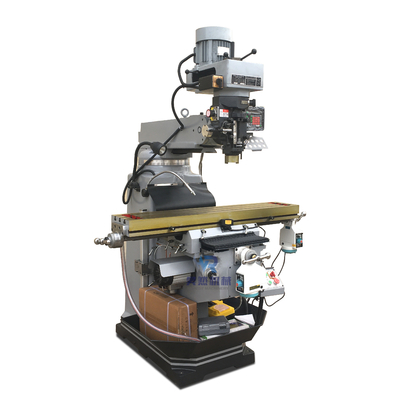

Large Image : Mechanical M4 Turret Head Milling Machine Vertical Universal Tool For Metal Cutting

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	M4

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd2900-4000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Mechanical M4 Turret Head Milling Machine Vertical Universal Tool For Metal Cutting

Description

Machine Model:	M4	Workbench Area:	1270*254
X Axis（mm）:	780-850	Y Axis（mm）:	380-420
Z Axis（mm）:	350-380	T-slot Spacing（mm）:	65
Voltage（V）:	380	Net Weight（kg）:	1200
Highlight:	M4 turret head milling machine , Mechanical turret head milling machine , Turret universal tool milling machine

The milling machine is a kind of universal light duty metal cutting machine, Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Machine model		M4
Workbench area		1270*254	1370*254
travel	X axis(mm)	780-850	880-980
	Y axis(mm)	380-420	380-420
	Z axis(mm)	350-380	350-380
Spindle	Spindle taper	R8 NT40
	Spindle travel(mm)	127
	Spindle speed	16
	Spindle feed(mm)	0.076 / 0.003 0.038 / 0.0015 0.203 / 0.008
	Spindle low speed(r/min)	66,110,175,270,550,930,1460,2270
	Spindle high speed(r/min)	132,220,350,540,1100,1860,2920,4540
T slot	Number of slots X width(mm)	3X16
	T-slot spacing(mm)	65
motor	Voltage(V)	380
	frequency(HZ)	50
	head voltage	3HP / 2.2KW
	Ramp voltage	1.1Kw
maximum working weight(Kg)		350
Overall dimension(mm)		1800* 1780* 2350
net weight(kg)		1200

Product Details

Packaging＆Shipping

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

customer visiting

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

Company information

Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of cnc milling machine ,fiber laser cutting machines, plasma cutting machines, and other products, which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.

FAQ

1.What CNC system do you use? A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice. 2. Payment Terms A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss. 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4.How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 5.Where is our factory located? How can I visit there? A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us. 6.What's the MOQ? A: 1 set . 7.How long is the machine warranty? A:warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price

Tag:

vertical turret mill,

heavy duty universal milling machine,

small universal milling machine

Contact Details

Shandong HR Machinery Co., Ltd.

Contact Person: Yang

Tel: +8618660828360
