OEM Turret Head Metal Universal Milling Machine 3HP 2.2KW

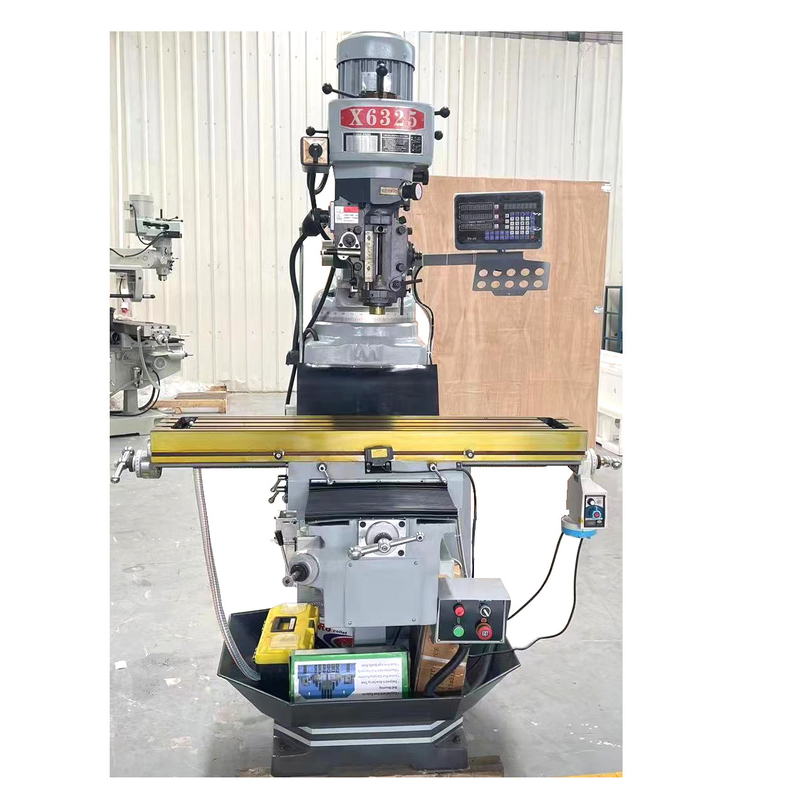

Large Image : OEM Turret Head Metal Universal Milling Machine 3HP 2.2KW

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	X6325

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD2000-4000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

OEM Turret Head Metal Universal Milling Machine 3HP 2.2KW

Description

Machine Model:	X6325	Workbench Area:	1270*254
X Axis（mm）:	780-850	Y Axis（mm）:	380-420
Z Axis（mm）:	350-380	Head Voltage:	3HP / 2.2KW
Ramp Voltage:	1.1Kw	Net Weight（kg）:	1200
Highlight:	OEM Universal Milling Machine , 3HP Universal Milling Machine , 3HP turret head milling machine

3HP Taiwan Precision Variable Speed milling head
Milling head can tilt L/ R ±90°; forward / backward ±45°
X,Y axis Taiwan Ball screw can be choosen
Taiwan X,Y,Z axis Power feed can be choose.


Item	Specification
Model	X6325
Size of worktable(length×width)	1270254mm ( 1370254,1370*305 table customized)
T slot (mm)	3/16/65mm
X-Axis travel	750mm ( 850mm optional)
Y-Axis travel	400mm
Z-Axis travel	400mm
Distance between spindle nose and table	0-460mm
Distance between spindle center and column	155-635mm
Spindle taper	R8, (NT40,optional)
Max. spindle speed	16 steps ,66-4540rpm
Spindle motor power	3HP(2.2kw), (5HP head ,optiona)
Spindle Travel	127mm
Spindle Auto Feed	3 steps 0.04(0.0015)/0.08(0.003)/0.15(0.006)
Main Motor	3HP
Head swivel	90°
Head tilting	45°
Weight	1300kg
Package Size	155013802100mm

sample

Application:

The machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles

Packaging＆Shipping

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

customer visiting

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

vertical turret mill,

heavy duty universal milling machine,

small universal milling machine
