750w Metal Vertical Manual Milling Machine Bench Top X6436

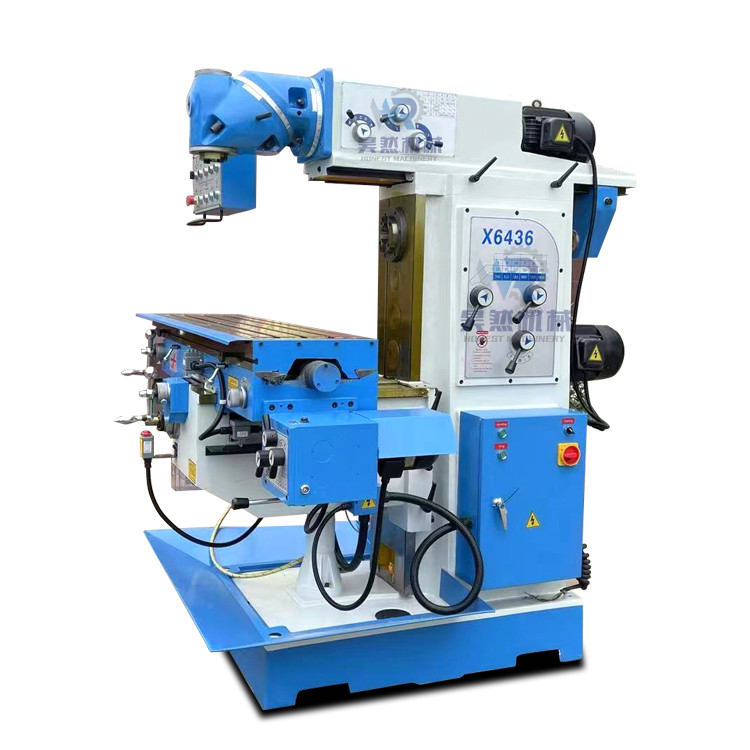

Large Image : 750w Metal Vertical Manual Milling Machine Bench Top X6436

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	x6436

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd6000-10000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

750w Metal Vertical Manual Milling Machine Bench Top X6436

Description

Taper Of Spindle Taper Hole:	7：24 ISO40 （V）tso050(H）	Distance From Vertical Spindle Hole Center To Column Surface:	350-850mm
Distance From End Face Of Vertical Spindle To Worktable:	210-710mm	Distance From Horizontal Spindle Center To Workbench:	0-500mm
Distance From Horizontal Spindle Center To Lower Plane Of RAM:	175mm	Vertical Motorized Lifting Speed Of Workbench:	590mm/min
Power Of Main Drive Motor:	4(V) 5.5（H）kw	Power Of Table Motor Feed Motor:	750w
Highlight:	750w vertical manual milling machine , BenchTop vertical manual milling machine , 750w bench top vertical mill

750w Metal Vertical Manual Milling Machine Bench Top X6436

Universal rotary head milling machine is a small and medium-sized general metal cutting machine, which can be used for horizontal milling and vertical milling. The spindle taper hole machine can install all cylindrical milling cutters, disk milling cutters, forming milling cutters, end milling cutters and other cutters directly or through accessories, and is suitable for processing various plane, inclined plane, groove, hole and other gear small parts. It is an ideal processing equipment for machinery manufacturing, mold, equipment, instrumentation, automobile, motorcycle and other industries.

Specifications	Units	X6436	X6432
Table size	mm	1370x360	1370x320
Table size	mm	(1500x360)	(1500x320)
Table stroke	mm	1000x320x500	1000x300x500
T-type slot numbers / width /space	mm	3-18-80	3-14-60
Distance from spindle axis to table surface	mm	0-400	0-400
Spindle taper		ISO50	ISO40
Spindle speed range(steps)	rpm	48-1660(V)	28-1660(V)
Spindle speed range(steps)	rpm	60-1800(H)	40-1300(H)
Milling head swivel range	°	360	360
Spindle motor power	KW	4	3
Overall dimensions	mm	2070x2025x2020	2020x1710x1994
Machine weight	Kg	2480	2100

sample

Application The machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles

Packaging＆Shipping

Packaging Details:

1. Outside package: Standard marine export plywood case.

Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.



Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

customer visiting

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

Company information

Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of cnc milling machine ,fiber laser cutting machines, plasma cutting machines, and other products, which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.

FAQ

1.What CNC system do you use? A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice. 2. Payment Terms A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss. 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4.How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 5.Where is our factory located? How can I visit there? A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us. 6.What's the MOQ? A: 1 set . 7.How long is the machine warranty? A:warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
