3 Axis Heavy Duty Universal Milling Machine Vertical Turret Mill

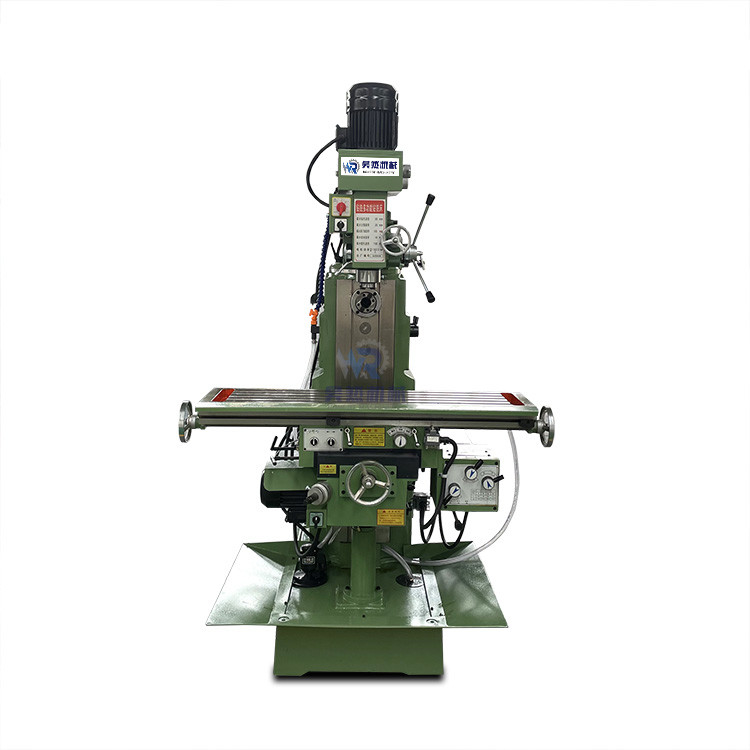

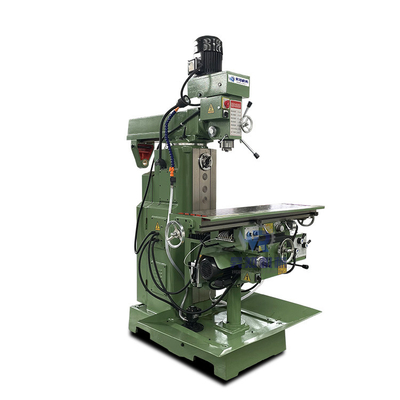

Large Image : 3 Axis Heavy Duty Universal Milling Machine Vertical Turret Mill

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	zx6350

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd3000-6000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

3 Axis Heavy Duty Universal Milling Machine Vertical Turret Mill

Description

Model:	Zx6350	Maximum Borehole Diameter:	50mm
Max. End Milling Dia.:	100mm	Max. Vertical Milling Dia.:	25mm
Max.boring Dia.:	120mm	Max. Tapping Dia.:	M16mm
Spindle Taper:	M.T.4	Table Size:	1200*280mm
Highlight:	3Axis heavy duty universal milling machine , Turret heavy duty universal milling machine , Universal vertical turret mill

3 Axis Heavy Duty Universal Milling Machine Vertical Turret Mill

It is an ideal processing equipment for machinery manufacturing, mould, automobile, motorcycle and other industries. It is an economical drilling and milling machine. It can be used for drilling, milling, boring, grinding and other cutting functions. It has good versatility, simple structure and convenient operation and maintenance.


ZX6350	SPECIFICATIONS	Units
Maximum borehole diameter	50	mm
Max. end milling dia.	100	mm
Max. vertical milling dia.	25	mm
Max.boring dia.	120	mm
Max. tapping dia.	M16	mm
Spindle taper	M.T.4
Vertical Spindle nose to table surface distance	90-390	mm
Distance from horizontal shaft center to worktable	0-300	mm
Distance from vertical shaft center to vertical guide rail surface of bed	200-500	mm
Spindle speed range	(8 step)115-1750(V)(12 step)40-1350(H)	r/min
Table size	1200*280	mm
Table travel (longitudinal / transverse / vertical)	X/650 Y/300 Z/430	mm
Distance from horizontal axis center to suspension beam plane	175	mm
Longitudinal / transverse motorized feed speed of workbench	22-555(8 step)810(fast)	mm/min
Vertical motorized lifting speed of workbench	560	mm/min
Number / width / spacing of T-shaped slots on the workbench	3/14/70	mm
Power of main drive motor	1.5/2.2(V)；2.2(H)	kW
Power of table motor feed motor	750	w
Lifting table lifting feed motor power	750	w
Cooling pump motor power	40	w
Net weight / gross weight of machine tool	1450/1560	kg
overall dimension	168014802250	mm

Packaging＆Shipping

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

customer visiting

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

Company information

Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of CNC Milling Machine ,Machining Center ,Grinding Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.

FAQ

1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company? A: We specialized in all kinds of machines ,CNC Milling Machine ,Machining Center ,Grinding Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: What about the quality of the machine?and after-sales service? A : Our machine warranty period is 2years,and we provide free technical service. 4. What is your trade terms? A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight . 6: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set )
