ODM Horizontal Vertical Metal Milling Machine Center 5HW

I'm Online Chat Now

ODM Horizontal Vertical Metal Milling Machine Center 5HW

ODM Horizontal Vertical Metal Milling Machine Center 5HW
ODM Horizontal Vertical Metal Milling Machine Center 5HW ODM Horizontal Vertical Metal Milling Machine Center 5HW

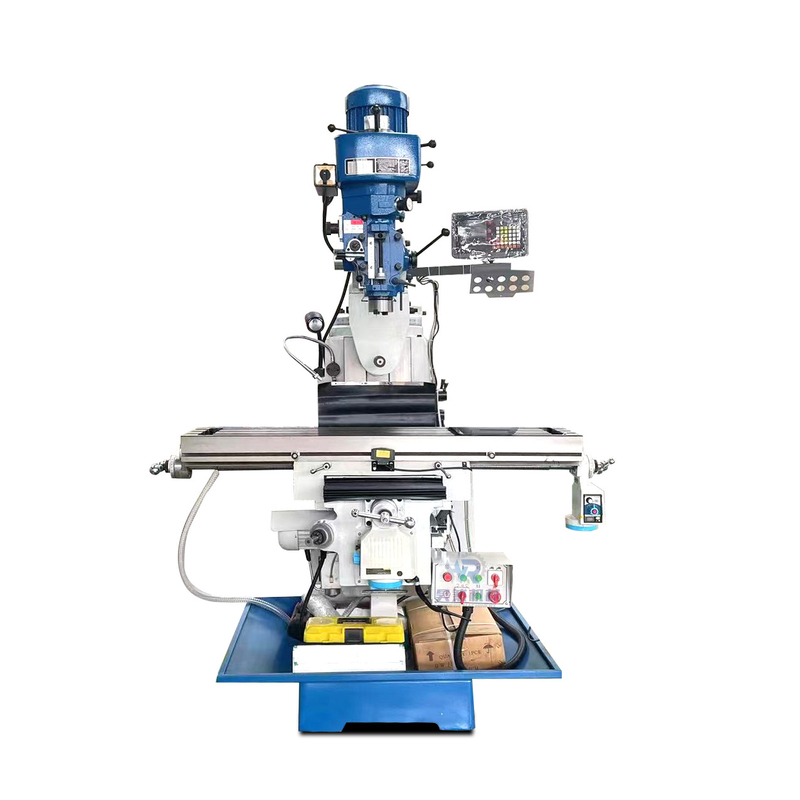

Large Image :  ODM Horizontal Vertical Metal Milling Machine Center 5HW

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ce iso
Model Number: 5HW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd5000-10000
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month

ODM Horizontal Vertical Metal Milling Machine Center 5HW

Description
NAME: Supply Strong Milling Capability Metal Milling Machine 5HW X Axis(mm): 880-980
Y Axis(mm): 380-420 Z Axis(mm): 400-460
Spindle Travel(mm): 127 Spindle Speed: 16
Workbench Area: 1370x254 Ramp Voltage: 1.1Kw
Highlight:

ODM Metal Milling Machine

,

5HW Metal Milling Machine

,

5HW vertical milling center





The main performance characteristics:
1. M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.

2. Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.

3. Three shaft screw fine grinding with advanced phosphor bronze nut, durable.

4. Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.

5. Many parts of the machine tools have been applied for patent

Product Description

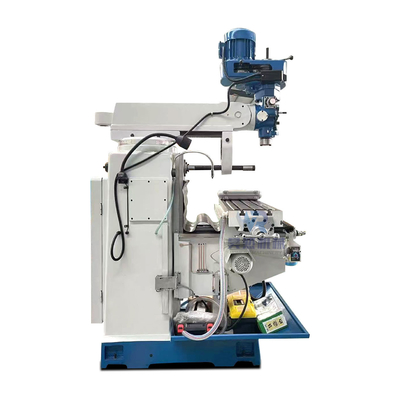

ODM Horizontal Vertical Metal Milling Machine Center 5HW 0
ODM Horizontal Vertical Metal Milling Machine Center 5HW 1
Specifications
Units
5HW
Table size
mm
1370x305(12”x54”)
Table travel
mm
810/ 400 /400
T slot(number-width-pitch)
mm
3-16-65
Spindle taper

standard:R8
optional:ISO40
Spindle speed range
rpm
standard:16 steps,50HZ:65-4500 ,60HZ:80-5440,Optional:variable 65-4000
Spindle travel
mm
127
Spindle feed range
mm
0.045,0.086,0.142
(3 steps)
Distance between spindle nose and table surface
mm
10-450
Main motor power
kw
2.2
Head rotation (left - right )
°
±90°
Head rotation (front - rear)
°
±45°
Weight
kg
1600
Overall dimension
mm
1550x1650x2250

Company information
ODM Horizontal Vertical Metal Milling Machine Center 5HW 2

Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
sample
ODM Horizontal Vertical Metal Milling Machine Center 5HW 3

Application:
The milling machine is a kind of universal light duty metal cutting machine, Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Packaging&Shipping
ODM Horizontal Vertical Metal Milling Machine Center 5HW 4

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
