Automatic Turret Vertical Milling Center Machine M5

I'm Online Chat Now

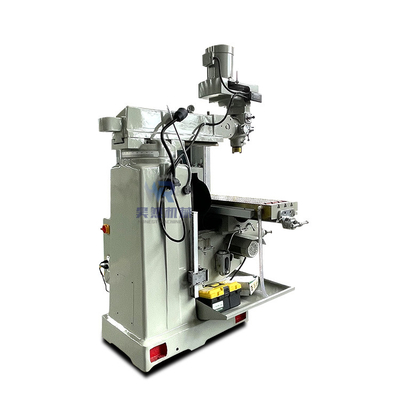

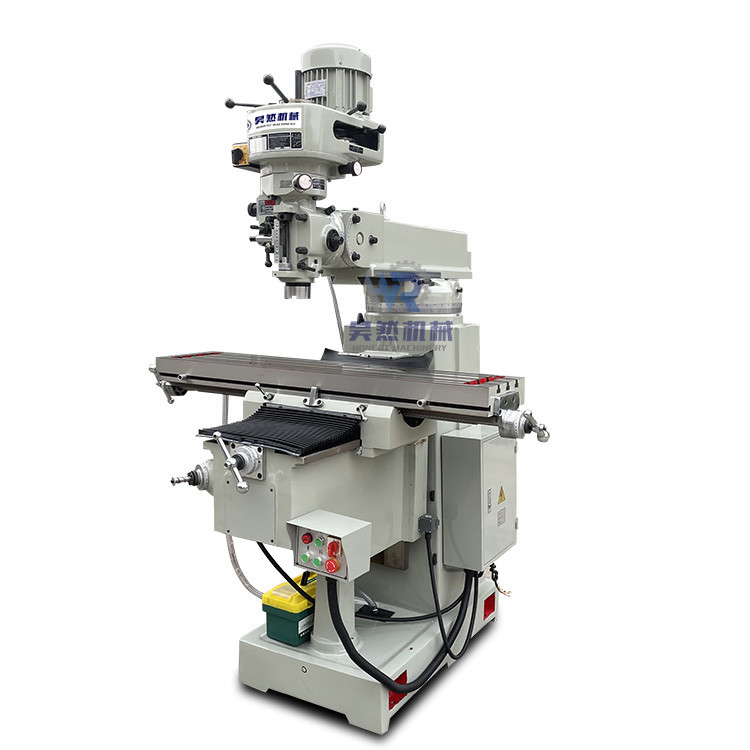

Automatic Turret Vertical Milling Center Machine M5

Automatic Turret Vertical Milling Center Machine M5
Automatic Turret Vertical Milling Center Machine M5 Automatic Turret Vertical Milling Center Machine M5

Large Image :  Automatic Turret Vertical Milling Center Machine M5

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: M5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd3200-4000
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month

Automatic Turret Vertical Milling Center Machine M5

Description
NAME: M5 Vertical Turret Milling Machine Workbench Area: 1370*254
X Axis(mm): 880-980 Y Axis(mm): 380-420
Z Axis(mm): 330-360 Spindle Travel(mm): 127
Spindle Speed: 16 Net Weight(kg): 1300
Highlight:

M5 vertical milling center

,

Turret vertical milling center

,

M5 vertical turret milling machine



Automatic Turret Vertical Milling Center Machine M5

Product Description
Automatic Turret Vertical Milling Center Machine M5 0
Automatic Turret Vertical Milling Center Machine M5 1
Machine model
M 5
Workbench area
1370*254
1370*305

travel
X axis(mm)
880-980
780-850

Y axis(mm)
380-420
360-380

Z axis(mm)
330-360
330-360



Spindle
Spindle taper
R8 NT30 NT40

Spindle travel(mm)
127

Spindle speed
16

Spindle feed(mm)
0.076 / 0.003 0.038 / 0.0015 0.203 / 0.008

Spindle low speed(r/min)
66,110,175,270,550,930,1460,2270

Spindle high speed(r/min)
132,220,350,540,1100,1860,2920,4540

T槽
Number of slots X width(mm)
3X16

T-slot spacing(mm)
76




Voltage(V)
380

frequency(HZ)
50

head voltage
3HP / 2.2KW 5HP / 3.7KW

Ramp voltage
1.1Kw
maximum working weight(Kg)
350
Overall dimension(mm)
1800* 1780*2350
net weight(kg)
1300
Features:
1. Taiwan Turret milling head;
2. The guide rail is super-audio quenched, precision ground and scraped;
3. Automatic lubrication system can reduces creep at low speed, reduces machine wear, improves accuracy and extends machine life;
4. Head rotation rotation 90°(left and right),head rotation 45°(back and forth);

Company information
Automatic Turret Vertical Milling Center Machine M5 2

Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
sample
Automatic Turret Vertical Milling Center Machine M5 3
Packaging&Shipping
Automatic Turret Vertical Milling Center Machine M5 4

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
Certifications
Automatic Turret Vertical Milling Center Machine M5 5

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
Automatic Turret Vertical Milling Center Machine M5 6

We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ

1.Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.

2.Q: How can I get quotation from you?
A: You can make the inquiry online , or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.

3.Q: how can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.

4.Q: How long does it take to get machine?
A:It takes about 10 days.
