Product Details:
|
Name: | ZX6350 Drilling Milling Machines Universal Milling Machine | Maximum Borehole Diameter: | 50mm |
---|---|---|---|
Max. End Milling Dia.: | 100mm | Max. Vertical Milling Dia.: | 25mm |
Max.boring Dia.: | 120mm | Max. Tapping Dia.: | M16mm |
Spindle Taper: | M.T.4 | Table Size: | 1200x280mm |
Highlight: | ODM small metal milling machine,M16mm small metal milling machine,M16mm horizontal and vertical milling machine |

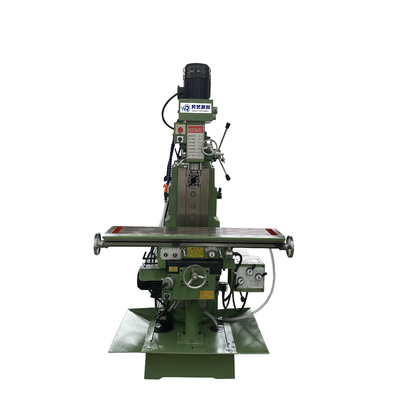

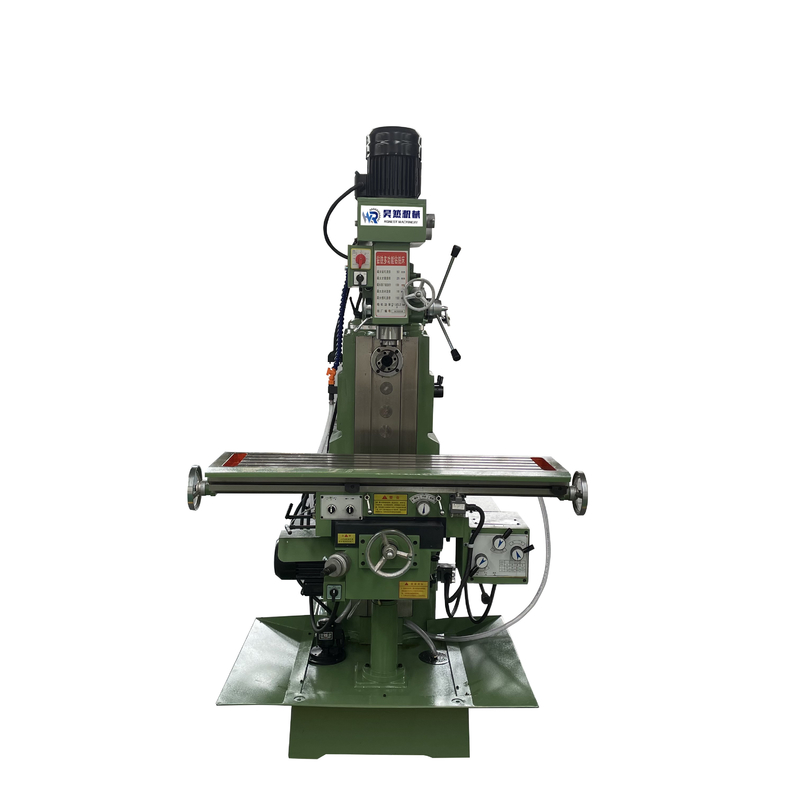

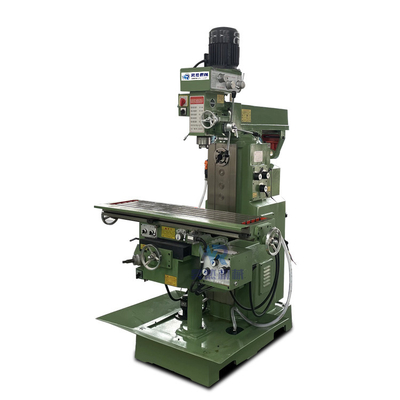

Universal Drilling Small Metal Milling Machine Horizontal And Vertical
ZX6350 universal milling machine is a multi-functional drilling and milling machine with a square box.The vertical and horizontal milling are gear transmission, the torque transmission is good, the machining efficiency is high, and the machine is equipped with a mechanical feeder, which can realize the longitudinal automatic feeding of the workbench, reducing labor intensity Improved machining accuracy and surface finish. The bed rail is hardened and has good abrasion resistance. The milling head is installed at the front of the slide arm and can be moved back and forth, not only can rotate 45 degrees left and right in the vertical plane, but also on the bed Rotate 360 degrees, with good processing universality.
